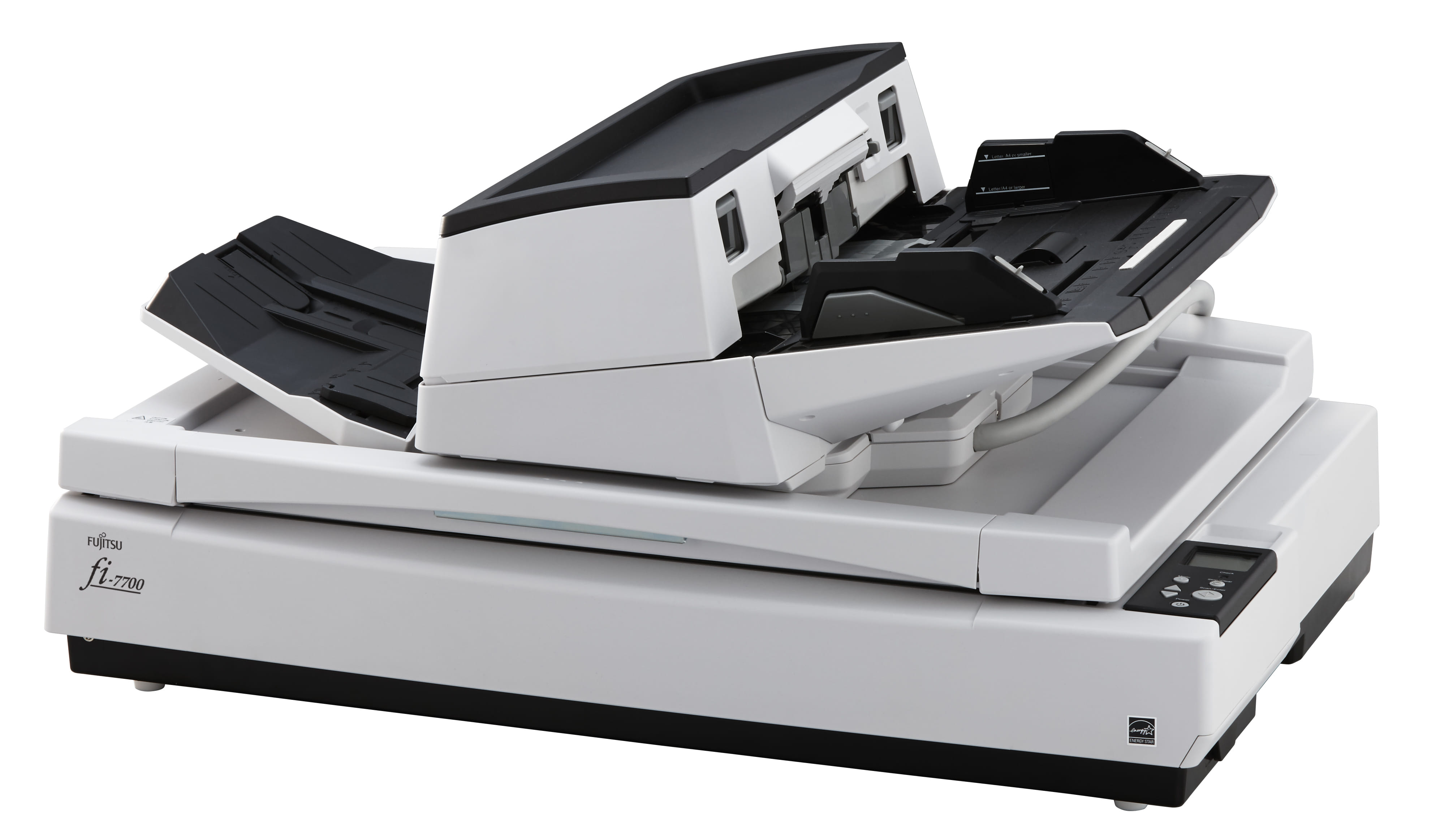

Ricoh Fi-7700 Document A3 Duplex 100PPM Scanner

Scanning
Maximum scan size	304.8 x 5588 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Output colour depth	24 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	100 ppm
ADF scan speed (colour, A4)	100 ppm
Flatbed scan speed (b/w, A4)	0.6 sec/page
Flatbed scan speed (b/w, A3)	0.6 sec/page
Duplex ADF scan speed (b/w, A4)	200 ipm
Duplex ADF scan speed (colour, A4)	200 ipm
Black/white scanning colour modes	Grayscale, Monochrome

Design
Scanner type Indicates the type of scanner this product is.	Flatbed & ADF scanner
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Display The description of display that can includes display type, resolution, size etc.	LCD
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	Triple CCD
Light source	White LED (6x)
Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.	30000 pages
Scan drivers	ISIS, TWAIN

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	300 sheets

Paper handling
Scanning media types supported	Envelopes, Plain paper, Plastic Card, Thin paper
Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together.
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A3
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A3, A3+, A4, A5, A6, A7, A8
Auto Document Feeder (ADF) media weight	20 - 413 g/m²
Maximum scan area (ADF)	304.8 x 431.8 mm
Minimum scan area (ADF)	50.8 x 69 mm

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 2 (3.1 Gen 2)
Socket connector type	C5
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	USB 3.2 Gen 1 (3.1 Gen 1)

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	64 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.35 W
Power consumption (off)	0.35 W
Power consumption (PowerSave)	1.7 W
Input voltage The voltage (V) which is required to power the product.	100-240 V

Weight & dimensions
Width The measurement or extent of something from side to side.	700 mm
Depth The distance from the front to the back of something.	500 mm
Height The measurement of the product from head to foot or from base to top.	345 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	35 kg

Packaging data
Quantity per pack	1 pc(s)
Package width The distance from one side of the packaging to the other.	697 mm
Package depth The distance from the front to the back of the packaging.	891 mm
Package height The distance from the top to the bottom of the packaging.	499 mm
Package weight Weight of the packaged product.	42 kg

Packaging content
Cables included	AC, USB
AC adapter included
ADF paper chute
Stacker
Drivers included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools

Sustainability
Sustainability certificates	ENERGY STAR

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Other features
Downloadable software List of software available to download for the product bundle; including manufacturer and coined name	ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode
Compliance certificates	RoHS
Selectable background colour
Background colours	Black, White

Logistics data
Country of origin Country where the device is made. Aka Country of manufacture (COM).	Indonesia
Pallet gross length	91 cm
Pallet gross width	142 cm
Harmonized System (HS) code	8471607000
Paper packaging weight	2.4 kg
Metal packaging weight	0 g
Wood packaging weight	0 g
Plastic packaging weight	15 g
Products per pallet (air)	4 pc(s)
Products per pallet (sea)	6 pc(s)
Pallet height (sea)	162.7 cm
Pallet height (air)	114.8 cm
Cardboard packaging weight	1.2 kg
Foil packaging weight	15 g
Polystyrene (EPS/EPP) packaging weight	200 g
Glass packaging weight	0 g
