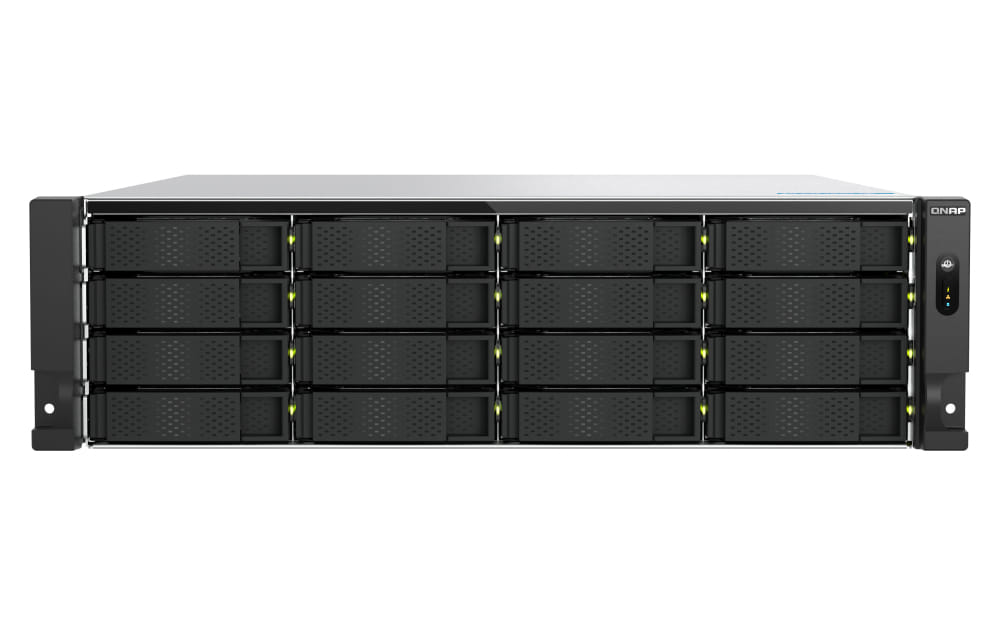

QNAP 16-Bay Ryzen 7 8-Core 32GB 550W Redundant Power Supply NAS
Item No:
765953
MPN:
TS-h1677AXU-RP-R7-32G
$12,220.87
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
QNAP TS-H1677AXU-RP-R7-32G, NAS, Rack (3U), AMD Ryzen 7
QNAP TS-H1677AXU-RP-R7-32G. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA II, Serial ATA III, Supported storage drive interfaces: M.2. Processor family: AMD Ryzen 7, Processor manufacturer: AMD, Processor boost frequency: 5.3 GHz. Internal memory: 32 GB, Internal memory type: DDR5, Maximum RAM supported: 128 GB. Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s. Chassis type: Rack (3U), Number of fans: 3 fan(s), Fan diameter: 6 cm
| Storage | |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA II, Serial ATA III |
| Supported storage drive interfaces | M.2 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
 |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 7 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.3 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Maximum RAM supported | 128 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 4 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500,10000 Mbit/s |
| Jumbo frames support |
|
| Wake-on-LAN ready |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (3U) |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Power | |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482.2 mm |
| Depth The distance from the front to the back of something. | 550.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 131.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.6 kg |
| Package weight Weight of the packaged product. | 22.1 kg |
| Technical details | |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| SKU | 765953 |
| MPN | TS-h1677AXU-RP-R7-32G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Rackmounted |
| NAS Bays | 16.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
