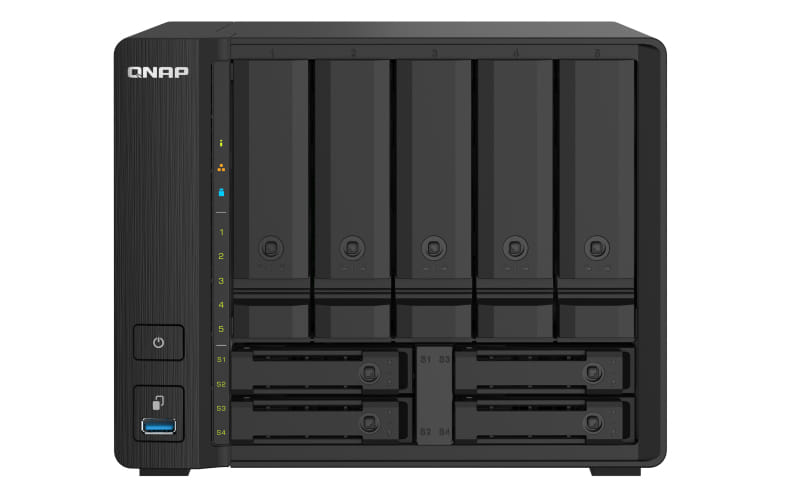

QNAP TS-932PX, NAS, Tower, Annapurna Labs, Alpine AL-324, Black
The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-932PX features is highly energy efficient without impacting system or application performance.
High-speed 10GbE and 2.5GbE connectivity
The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Boost NAS performance with 2.5-inch SATA SSDs
SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology, Qtier auto-tiering, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.
Multi-Point File Backup, Access, and Sync
The TS-932PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows, Mac, and Linux/UNIX devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive, Google Drive, and Dropbox) for disaster recovery.
Smart AI Photo Management
QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS Live Photo display and a powerful search tool, to provide you with the ultimate photo management and image sharing solution.
Low-latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-932PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Easily find and automatically organize files
The TS-932PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling.
Secure remote access to your QNAP NAS
Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP's proprietary QBelt protocol to easily connect to your TS-932PX and use measurement tools to know the speed of your VPN connections and connection history.
Energy-efficient Quad-core Processor
Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-932PX features is highly energy efficient without impacting system or application performance.
High-speed 10GbE and 2.5GbE connectivity
The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Boost NAS performance with 2.5-inch SATA SSDs
SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology, Qtier auto-tiering, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.
Multi-Point File Backup, Access, and Sync
The TS-932PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows, Mac, and Linux/UNIX devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive, Google Drive, and Dropbox) for disaster recovery.
Smart AI Photo Management
QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS Live Photo display and a powerful search tool, to provide you with the ultimate photo management and image sharing solution.
Low-latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-932PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Easily find and automatically organize files
The TS-932PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling.
Secure remote access to your QNAP NAS
Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP's proprietary QBelt protocol to easily connect to your TS-932PX and use measurement tools to know the speed of your VPN connections and connection history.
| Storage | |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60,JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 9 |
| Bad block scan |
|
| Disk roaming Disk roaming is moving the physical disks from one cable connection or backplane slot to another on the same controller. The controller automatically recognizes the relocated physical disks and logically places them in the virtual disks that are part of the disk group. You can perform disk roaming only when the system is turned off. |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Annapurna Labs |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Annapurna Labs |
| Processor model The model number for the processor in a computer. | Alpine AL-324 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor architecture | ARM Cortex-A57 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 1 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | SO-DIMM |
| Flash memory | 512 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | FTP, SFTP, TFTP, ec, OpenVPN, QBelt |
| Link aggregation |
|
| Load balancing system |
|
| Dynamic DNS (DDNS) |
|
| WLAN adapter supported |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| LED indicators | HDD,LAN,SSD,Status,USB |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud,iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 18.6 dB |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,FIPS 140-2,HTTPS,SNMPv2,SNMPv3,SSH,SSL/TLS |
| Access Control List (ACL) |
|
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| System log |
|
| Hot spare |
|
| S.M.A.R.T. support |
|
| Share folder | CIFS/SMB |
| USB copy function |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QNAP Turbo System |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 4.4.2 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | External |
| Power supply unit (PSU) capacity | 120 W |
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 224.6 mm |
| Depth The distance from the front to the back of something. | 224.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 182.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.39 kg |
| Package weight Weight of the packaged product. | 4.99 kg |
| Packaging content | |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 436275 |
| MPN | TS-932PX-4G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Freestanding |
| NAS Bays | 5.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
