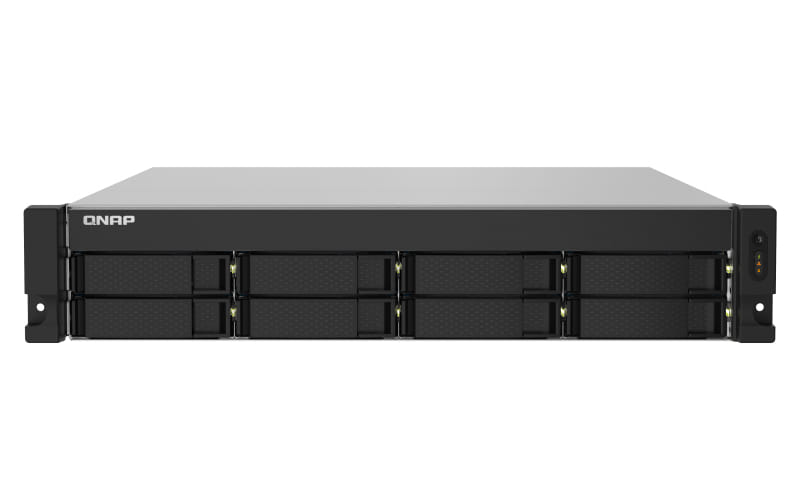

QNAP TS-832PxU, NAS, Rack (2U), Annapurna Labs, AL324, Black
With 10GbE SFP+ and 2.5GbE network ports, the TS-832PxU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 -2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PxU supports file backup and synchronization, secure snapshot protection, and Google G Suite and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.
Higher performance x faster throughput
The TS-832PxU is powered by an Annapurna Labs Alpine AL-324 ARM Cortex-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PxU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PxU supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PxU into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PxU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-832PxU provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
Secure Google G Suite and Microsoft 365 backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PxU includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PxU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Flexibly expand storage capacity whenever needed
The storage capacity of the TS-832PxU can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PxU can also be used to expand the storage space of other QNAP NAS.
PCIe expandability for greater application potential
The TS-832PxU includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.
Higher performance x faster throughput
The TS-832PxU is powered by an Annapurna Labs Alpine AL-324 ARM Cortex-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PxU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PxU supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PxU into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PxU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-832PxU provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
Secure Google G Suite and Microsoft 365 backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PxU includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PxU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Flexibly expand storage capacity whenever needed
The storage capacity of the TS-832PxU can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PxU can also be used to expand the storage space of other QNAP NAS.
PCIe expandability for greater application potential
The TS-832PxU includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.
| Storage | |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 8 |
| Bad block scan |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Annapurna Labs |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Annapurna Labs |
| Processor model The model number for the processor in a computer. | AL324 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 1 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| Flash memory | 512 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Link aggregation |
|
| Load balancing system |
|
| WLAN adapter supported |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 7 cm |
| LED indicators | HDD,LAN,Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud,iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 24.9 dB |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Access Control List (ACL) |
|
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| System log |
|
| Hot spare |
|
| S.M.A.R.T. support |
|
| Share folder | CIFS/SMB |
| Universal Plug and Play (UPnP) |
|
| USB copy function |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QNAP Turbo System |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 4.4.3 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 56.412 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482 mm |
| Depth The distance from the front to the back of something. | 534 mm |
| Height The measurement of the product from head to foot or from base to top. | 89 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.45 kg |
| Package weight Weight of the packaged product. | 15.2 kg |
| Packaging content | |
| Cables included | AC,LAN (RJ-45) |
| Number of screws | 56 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
