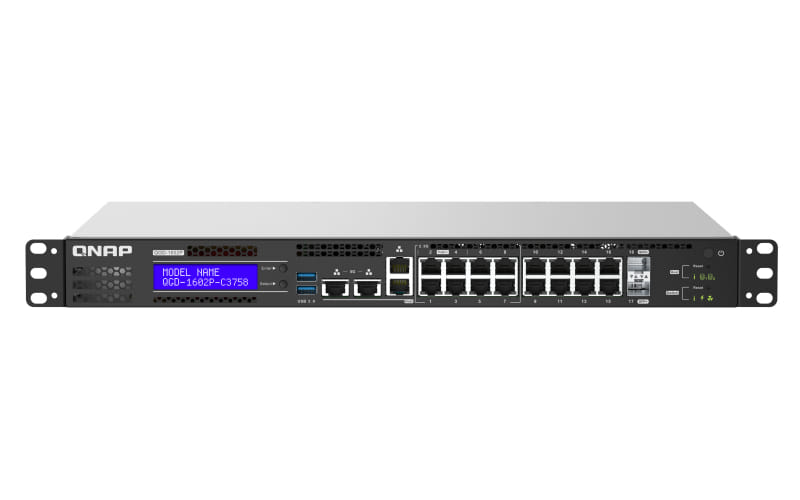

QNAP Smart Edge PoE Switch with 2.5GbE and 10GbE

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Traffic classification

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
2.5G Ethernet (copper) ports quantity	8
SFP+ module slots quantity	2

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-TX, 1000BASE-T
Port mirroring
Port trunking
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Link aggregation
Rate limiting
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Port-based VLAN

Optical fiber
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-SR, 1000Base-X

Data transmission
Switching capacity The data transfer capacity of the switch per second.	96 Gbit/s
Throughput	48 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	32000 entries
Jumbo frames support
Jumbo frames	9000

Security
DHCP features	DHCP client, DHCP server
Access Control List (ACL)
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS
Loop protection

Multicast features
Multicast MAC address table	8000 entries

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
Reset button
LED indicators	Activity, Alarm, Link, PoE, Speed
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	3 fan(s)
Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies.	CLASS A, UL62368

Performance
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor model The model number for the processor in a computer.	Atom C3558
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	2200 MHz
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	8000 MB
Flash memory	4000 MB

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max) The maximum amount of power used by the device.	280 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	220 W

Other features
Expansion slots List of I/O expansion card slots; including quantity of each	2x PCIe Gen3 (x4 slot, x2 speed)
I/O ports An interface on a device to which you can connect another device.	2x USB 3.2 Gen 1, 2 x 5GbE, 2 x 1GbE

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	435.2 mm
Depth The distance from the front to the back of something.	327.7 mm
Height The measurement of the product from head to foot or from base to top.	44.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4.37 kg

Packaging content
Cables included	AC, LAN (RJ-45)
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Rack mount kit

Packaging data
Package weight Weight of the packaged product.	5.52 kg

Certificates
Certification	CE, FCC, VCCI, BSMI RCM, CCC

Logistics data
Harmonized System (HS) code	85176990
