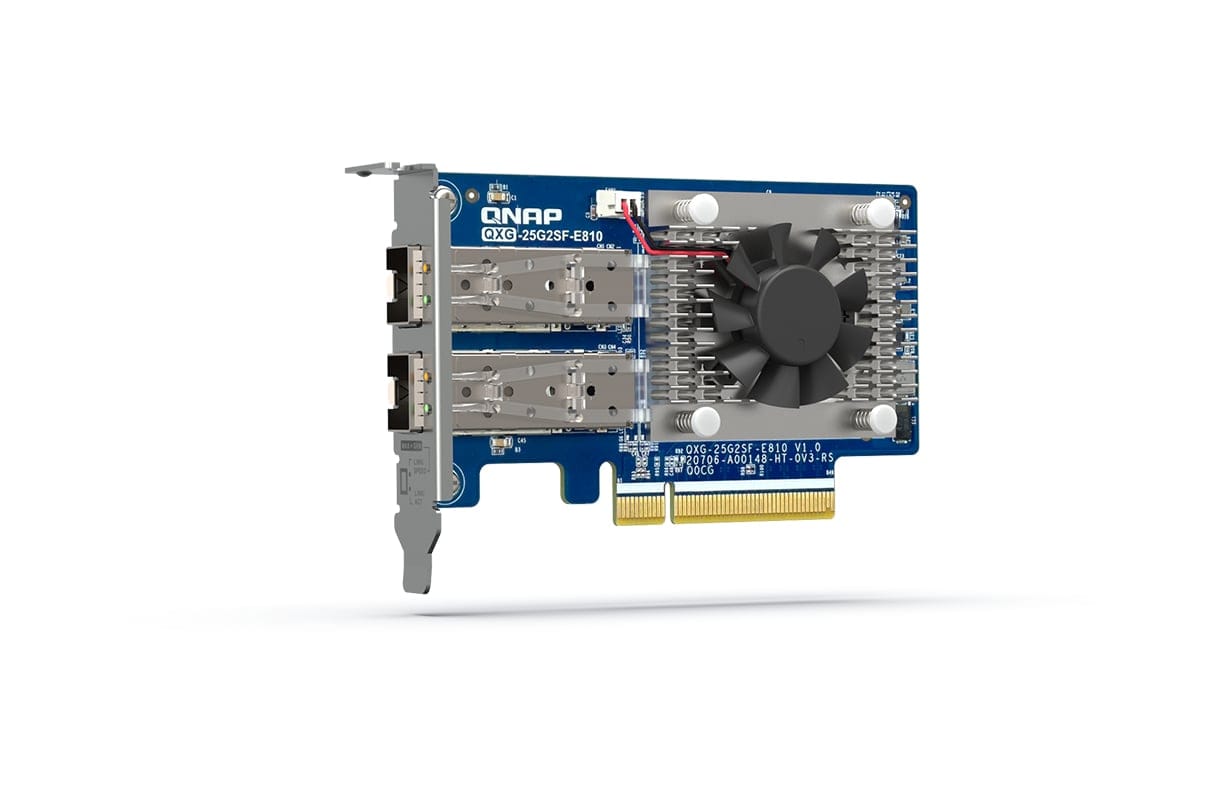

The dual-port QXG-25G2SF-E810 25GbE network expansion card with Intel® Ethernet Controller E810-XXVAM2 supports PCIe Gen4 (backwards compatible with Gen3) and provides up to 25Gbps transfer speeds (10/25Gbps supported). By using SMB Multichannel to aggregate multiplied network connections, you maximize available bandwidth and can achieve up to 50Gb/s for accelerating file sharing and intensive data transfer. With Network Offload support, the QXG-25G2SF-E810 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications, data centers, and multimedia transmission/real-time video editing.
Compatible with NAS and PC
QNAP Network Expansion Cards support NAS operating systems (QTS and QuTS hero), Windows® 11, Windows Server® and Linux®, allowing you to expand the performance potential of all your networked devices.
Build 25GbE networks with QNAP NAS and high-speed network switches
QNAP provides one-stop 25GbE storage and networking solutions for ultra-high speed connectivity to meet various needs. The TS-h2287XU-RP NAS not only fully realizes 25Gb/s performance but also allows for more connected PCs/workstations by installing the QXG-25G2SF-E810 through PCIe Gen 4 slots. Coupled with 25GbE network switch, you can create an ultra-high speed and scalable network environment with great cost efficiency.
Ensure reliable data transfer with Forward Error Correction (FEC)
The QXG-25G2SF-E810 supports FEC to overcome packet loss
Compatible with NAS and PC
QNAP Network Expansion Cards support NAS operating systems (QTS and QuTS hero), Windows® 11, Windows Server® and Linux®, allowing you to expand the performance potential of all your networked devices.
Build 25GbE networks with QNAP NAS and high-speed network switches
QNAP provides one-stop 25GbE storage and networking solutions for ultra-high speed connectivity to meet various needs. The TS-h2287XU-RP NAS not only fully realizes 25Gb/s performance but also allows for more connected PCs/workstations by installing the QXG-25G2SF-E810 through PCIe Gen 4 slots. Coupled with 25GbE network switch, you can create an ultra-high speed and scalable network environment with great cost efficiency.
Ensure reliable data transfer with Forward Error Correction (FEC)
The QXG-25G2SF-E810 supports FEC to overcome packet loss
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| PCI version | 4.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Internal The product is built in. |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel E810-XXVAM2 |
| LED indicators |
|
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | QTS/QuTS hero |
| Packaging content | |
| Mounting brackets included |
|
| Quick installation guide |
|
| Technical details | |
| Warranty period | 2 year(s) |
| SKU | 813977 |
| MPN | QXG-25G2SF-E810 |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
