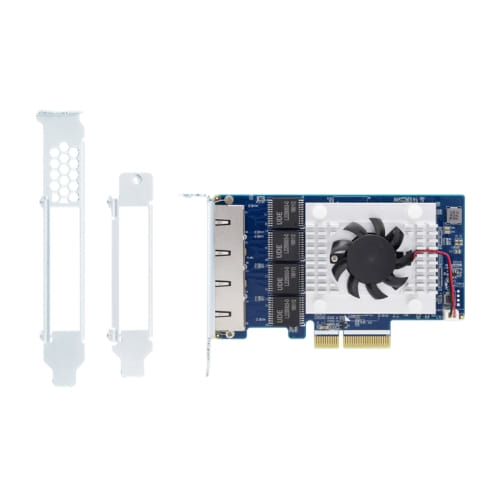

QNAP offers various cost-effective network expansion cards for businesses and organizations to upgrade the bandwidth of their QNAP NAS to accommodate intensive data transfer and virtualization applications.
The 5 GbE network expansion card delivers speeds of up to 5 Gbps. You can easily upgrade the transfer speed in your network environment with existing cables.
The 5 GbE network expansion card delivers speeds of up to 5 Gbps. You can easily upgrade the transfer speed in your network environment with existing cables.
Ports & interfaces | |
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
PCI version | 3.0 |
Network | |
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. | |
Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
LAN controller | Aquantia AQC111C |
Design | |
Component for What this product is used as a part of (component for). | Server |
Product colour The colour e.g. red, blue, green, black, white. | Blue |
Internal The product is built in. |
System requirements | |
Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) | |
Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 119.7 mm |
Depth The distance from the front to the back of something. | 68.9 mm |
Height The measurement of the product from head to foot or from base to top. | 17.2 mm |
Packaging content | |
Mounting brackets included |
Logistics data | |
Harmonized System (HS) code | 85176990 |
SKU | 807215 |
MPN | QXG-5G4T-111C |
Brand | QNAP |
Product Condition | Brand New/Unused |
Stock Availability | Available for Shipping |
Product Use | General |
Warranty Period | 1 Year Warranty |
Warranty Contact | https://www.qnap.com/ |
