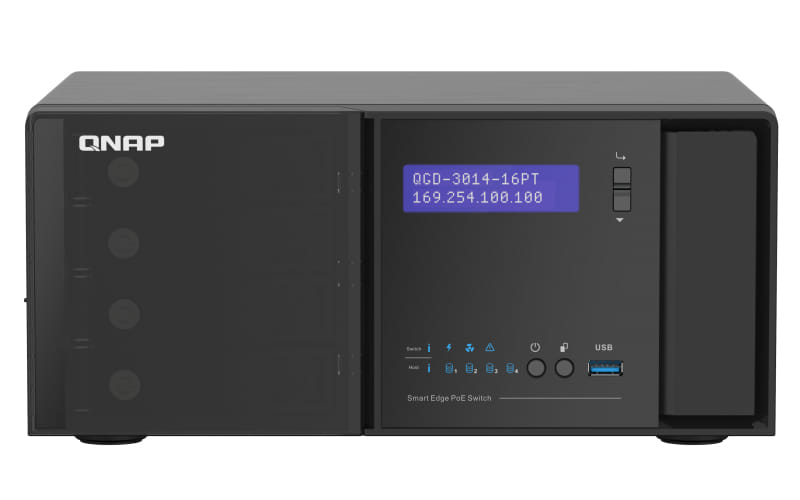

QNAP QGD-3014-16PT-8G, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
The QGD-3014-16PT Desktop Guardian PoE managed switch has sixteen 30-watt Gigabit PoE ports, two Gigabit SFP/RJ45 combo ports and two 2.5GbE host management ports. With a dual-processor design including an Intel Celeron J4125 quad-core 1.8GHz processor and four 3.5-inch SATA drive bays, the QGD-3014-16PT meets requirements for high-speed transmission, storage space, and virtual machine performance in surveillance applications. Supporting VMs and QTS for versatile applications such as QVR Pro, HBS 3 and QuWAN, the QGD-3014-16PT combines surveillance deployment, video storage computing, remote backup and WAN optimization to create intelligent surveillance infrastructure and remote backup solutions.
Next-Generation Intelligent IP Surveillance and Remote Backup Solution
Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.
Complete Surveillance Infrastructure Deployment for Smart Retail
Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.
Minimalist design with 4K 60Hz HDMI output for fashionable retail space
The QGD-3014-16PT has a modern design and quiet cooling system to balance system performance, noise, and noise. This stylish appearance allows the QGD-3014-16PT to easily fit in with modern retail spaces and showrooms. The QGD-3014-16PT combines the functions of a PoE switch, NVR, NAS and router, and provides HDMI 2.0 output for direct playback of live feeds up to 4K (3840x2160) 60Hz resolution. By consolidating the functions of multiple devices in a near-silent and stylish form factor, the QGD-3014-16PT satisfies the requirements for smart retail surveillance environments.
Intelligent PoE Management for High-Power IP Cameras
Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT has sixteen ports with 30-watt Gigabit PoE capabilities. The QGD-3014-16PT can supply a total power budget of 140 watts to meet the demands of bullet cameras, fisheye cameras, 4K PTZ cameras and Speed Dome cameras compliant with the ONVIF standard; or high-power devices such as 4K PTZ camera, IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling/disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
A Total Smart IP Surveillance System with QVR Pro
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage including four drive bays space and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.
Integrated HBS 3 Remote Backup Solution for Surveillance Data
HBS 3 consolidates backup, restoration and synchronization functions (via RTRR, Rsync, FTP, CIFS/SMB protocol) for easily transferring data from the QGD-3014-16PT to a remote QGD-3014-16PT, QNAP NAS, remote server, or cloud storage.
Deploy a Multi-site VPN with SD-WAN Solution
QuWAN SD-WAN provides full mesh IPsec VPN topology between the QGD Switches and local/remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. QuWAN also adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS for deploying a resilient IP surveillance infrastructure.
The First PoE Switch Series with VM Support
The QGD-3014-16PT supports QNAP
Next-Generation Intelligent IP Surveillance and Remote Backup Solution
Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.
Complete Surveillance Infrastructure Deployment for Smart Retail
Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.
Minimalist design with 4K 60Hz HDMI output for fashionable retail space
The QGD-3014-16PT has a modern design and quiet cooling system to balance system performance, noise, and noise. This stylish appearance allows the QGD-3014-16PT to easily fit in with modern retail spaces and showrooms. The QGD-3014-16PT combines the functions of a PoE switch, NVR, NAS and router, and provides HDMI 2.0 output for direct playback of live feeds up to 4K (3840x2160) 60Hz resolution. By consolidating the functions of multiple devices in a near-silent and stylish form factor, the QGD-3014-16PT satisfies the requirements for smart retail surveillance environments.
Intelligent PoE Management for High-Power IP Cameras
Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT has sixteen ports with 30-watt Gigabit PoE capabilities. The QGD-3014-16PT can supply a total power budget of 140 watts to meet the demands of bullet cameras, fisheye cameras, 4K PTZ cameras and Speed Dome cameras compliant with the ONVIF standard; or high-power devices such as 4K PTZ camera, IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling/disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
A Total Smart IP Surveillance System with QVR Pro
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage including four drive bays space and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.
Integrated HBS 3 Remote Backup Solution for Surveillance Data
HBS 3 consolidates backup, restoration and synchronization functions (via RTRR, Rsync, FTP, CIFS/SMB protocol) for easily transferring data from the QGD-3014-16PT to a remote QGD-3014-16PT, QNAP NAS, remote server, or cloud storage.
Deploy a Multi-site VPN with SD-WAN Solution
QuWAN SD-WAN provides full mesh IPsec VPN topology between the QGD Switches and local/remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. QuWAN also adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS for deploying a resilient IP surveillance infrastructure.
The First PoE Switch Series with VM Support
The QGD-3014-16PT supports QNAP
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Configuring Location Settings (CLI) |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 14 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 14 |
| Combo SFP ports quantity | 2 |
| HDMI stacking ports | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 32 Gbit/s |
| Throughput | 16 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Jumbo frames support |
|
| Security | |
| DHCP features | DHCP client,DHCP server |
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Loop protection |
|
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators | Activity, Fault, Link, PoE, Speed |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | CLASS A |
| Certification | CE, FCC, VCCI, BSMI |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor model The model number for the processor in a computer. | Intel Celeron J4125 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 2000 MHz |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | DDR4-SDRAM |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 8192 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 250 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 295 mm |
| Depth The distance from the front to the back of something. | 224.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 130 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.08 kg |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package weight Weight of the packaged product. | 5.34 kg |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | 3x USB 3.2 Gen 1, 2x 2.5GbE |
| SKU | 638806 |
| MPN | QGD-3014-16PT-8G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
