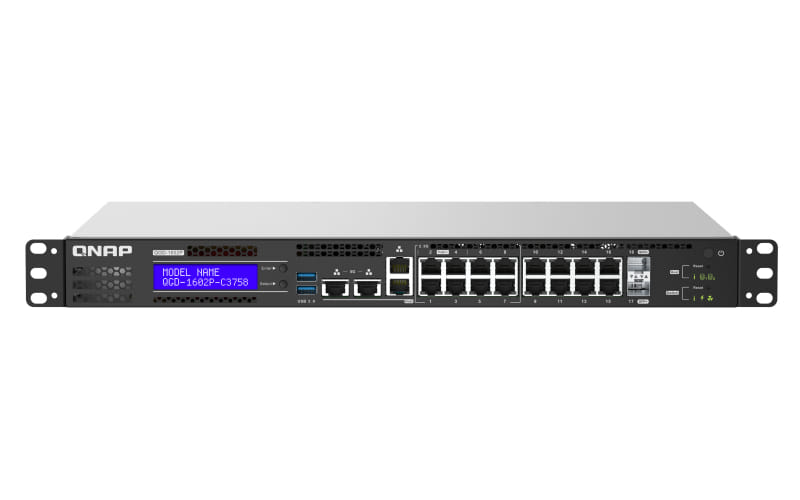

QNAP QGD 1602P, Managed, L2, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Rack mounting
The QNAP QGD 1602P is the world s first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP ports and up to 90 watt PoE output, the QGD 1602P allows you to build a high speed and high power PoE network infrastructure for Wi Fi 6 Access Points and Routers. With a dual CPU design, the QGD 1602P uses Intel Atom multi core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD 1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel QuickAssist Technology (Intel QAT), the QGD 1602P achieves the high performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost optimized and centrally managed LAN deployment solution.
2.5GbE PoE Switch for Wi Fi 6 APs & Routers
The QGD 1602P breaks through bandwidth limitations of connecting cabled and wireless networks to enhance your storage and access experience. With eight 2.5GbE ports, the QGD 1602P supplies up to 90 watts of PoE per port and a total power budget of 380 watts to meet the demands of high power Wi Fi 6 APs. The QGD 1602P can also be connected to a QHora Wi Fi 6 Router via its 10GbE SFP ports or 5GbE host ports to offer Wi Fi 6 network in home or office environments. Featuring diverse high speed network interfaces, the QGD 1602P provides a comprehensive Wi Fi 6 wireless network infrastructure solution for small to medium scale businesses, hotels and stores. Coupled with QNAP s QuWAN SD WAN solution, the QGD 1602P greatly enhances wireless LAN efficiency from optimized WAN bandwidth.
Upgraded performance for smoother virtualization
The QGD 1602P provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly efficient virtualization applications.
Sturdy hardware with Intel QAT for optimized performance
The QGD 1602P uses Intel Atom C3000 series multi core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD 1602P also supports Intel QuickAssist Technology (Intel QAT) to greatly enhance IPsec VPN performance.
The First PoE Switch Series with VM Support
The Guardian supports QNAP s QTS operating system and is the world s first PoE switch series that can host virtual machines, containers, and provide other cloud applications enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open source software applications. The Guardian provides SMBs with not only an all in one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD WAN solution for connecting to other QNAP devices at multiple sites. The dual processor Guardian enables you to independently run the networking management interfaces (QSS QNAP Switch System) and QTS. The Guardian provides a user friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
Deploy a multi site VPN with SD WAN solution
The QGD 1602P and other QNAP solutions now support QuWAN " QNAP s SD WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software defined networking to achieve optimum network connectivity, and supports cloud centric management for deploying a resilient IT Infrastructure.
Dual system of Switch & NAS, enabling optimum performance
The QGD 1602P features dual system design, multi port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
Intelligent PoE Management of up to 90W high power devices
The QGD 1602P is compliant with the IEEE 802.3bt PoE and IEEE 802.3at PoE standards, offering 4 port 90 watt and 12 port 30 watt PoE capabilities. The QGD 1602P can supply a total power budget of 370 watts to meet the demands of many high power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage). The QGD 1602P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy saving PoE network.
Faster wired and wireless transmission
The QGD 1602P has eight 2.5GbE ports and eight Gigabit PoE ports for connecting various high speed powered devices. Two in built 10GbE SFP ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD 1602P is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD 1602P can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.
20GbE Internal Bandwidth for Virtualized Applications
QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD 1602P provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.
QuNetSwitch: Layer 2 Management with User friendly Web GUI
The QGD 1602P provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake on LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD 1602P also offers the user friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management and PoE networks. The overview dashboard and statistical analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy.
The Guardian Smart Edge PoE Switch meets all your business needs.
The QGD 1602P is a one stop central networking solution that offers flexible power supply, Web based management, and innovative virtualization applications to solve various networking problems.
Smart Hotels
Hotel staff and customers can benefit from a smart access control system. Customers can check in with self help kiosks upon arrival while browsing through room details and service packages. Wi Fi should also be provided for customers to check information and contact customer service. Customer data also needs to be securely stored, while a surveillance system is necessary to ensure security.
Business Digital Transformation
IT staff in small businesses often need to set up file servers for employees to centrally store files. You also need to create networks for connecting equipment such as printers and VoIP phones. Firewalls are crucial in information security for mitigating attacks and threats. VPN connections are also necessary for secure remote file transfers between offices, sites, and remote workers.
Smart Retail
Digital signage is a convenient way to display menus/inventory and current offers. The POS system must also be constantly connected to ensure sales data is saved. An NVR surveillance system is also required to ensure customer, staff, and environmental security. These services can also use Wi Fi for ease of use.
2.5GbE PoE Switch for Wi Fi 6 APs & Routers
The QGD 1602P breaks through bandwidth limitations of connecting cabled and wireless networks to enhance your storage and access experience. With eight 2.5GbE ports, the QGD 1602P supplies up to 90 watts of PoE per port and a total power budget of 380 watts to meet the demands of high power Wi Fi 6 APs. The QGD 1602P can also be connected to a QHora Wi Fi 6 Router via its 10GbE SFP ports or 5GbE host ports to offer Wi Fi 6 network in home or office environments. Featuring diverse high speed network interfaces, the QGD 1602P provides a comprehensive Wi Fi 6 wireless network infrastructure solution for small to medium scale businesses, hotels and stores. Coupled with QNAP s QuWAN SD WAN solution, the QGD 1602P greatly enhances wireless LAN efficiency from optimized WAN bandwidth.
Upgraded performance for smoother virtualization
The QGD 1602P provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly efficient virtualization applications.
Sturdy hardware with Intel QAT for optimized performance
The QGD 1602P uses Intel Atom C3000 series multi core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD 1602P also supports Intel QuickAssist Technology (Intel QAT) to greatly enhance IPsec VPN performance.
The First PoE Switch Series with VM Support
The Guardian supports QNAP s QTS operating system and is the world s first PoE switch series that can host virtual machines, containers, and provide other cloud applications enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open source software applications. The Guardian provides SMBs with not only an all in one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD WAN solution for connecting to other QNAP devices at multiple sites. The dual processor Guardian enables you to independently run the networking management interfaces (QSS QNAP Switch System) and QTS. The Guardian provides a user friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
Deploy a multi site VPN with SD WAN solution
The QGD 1602P and other QNAP solutions now support QuWAN " QNAP s SD WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software defined networking to achieve optimum network connectivity, and supports cloud centric management for deploying a resilient IT Infrastructure.
Dual system of Switch & NAS, enabling optimum performance
The QGD 1602P features dual system design, multi port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
Intelligent PoE Management of up to 90W high power devices
The QGD 1602P is compliant with the IEEE 802.3bt PoE and IEEE 802.3at PoE standards, offering 4 port 90 watt and 12 port 30 watt PoE capabilities. The QGD 1602P can supply a total power budget of 370 watts to meet the demands of many high power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage). The QGD 1602P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy saving PoE network.
Faster wired and wireless transmission
The QGD 1602P has eight 2.5GbE ports and eight Gigabit PoE ports for connecting various high speed powered devices. Two in built 10GbE SFP ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD 1602P is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD 1602P can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.
20GbE Internal Bandwidth for Virtualized Applications
QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD 1602P provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.
QuNetSwitch: Layer 2 Management with User friendly Web GUI
The QGD 1602P provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake on LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD 1602P also offers the user friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management and PoE networks. The overview dashboard and statistical analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy.
The Guardian Smart Edge PoE Switch meets all your business needs.
The QGD 1602P is a one stop central networking solution that offers flexible power supply, Web based management, and innovative virtualization applications to solve various networking problems.
Smart Hotels
Hotel staff and customers can benefit from a smart access control system. Customers can check in with self help kiosks upon arrival while browsing through room details and service packages. Wi Fi should also be provided for customers to check information and contact customer service. Customer data also needs to be securely stored, while a surveillance system is necessary to ensure security.
Business Digital Transformation
IT staff in small businesses often need to set up file servers for employees to centrally store files. You also need to create networks for connecting equipment such as printers and VoIP phones. Firewalls are crucial in information security for mitigating attacks and threats. VPN connections are also necessary for secure remote file transfers between offices, sites, and remote workers.
Smart Retail
Digital signage is a convenient way to display menus/inventory and current offers. The POS system must also be constantly connected to ensure sales data is saved. An NVR surveillance system is also required to ensure customer, staff, and environmental security. These services can also use Wi Fi for ease of use.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Traffic classification |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 2 |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Port mirroring |
|
| Port trunking |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Rate limiting |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 1000Base-X |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 96 Gbit/s |
| Throughput | 48 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Loop protection |
|
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Reset button |
|
| LED indicators | Activity, Alarm, Link, PoE, Speed |
| Certification | FCC, VCCI, BSMI RCM, CCC |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor model The model number for the processor in a computer. | Atom C3758 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 2200 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 16000 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 500 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 435.2 mm |
| Depth The distance from the front to the back of something. | 327.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.37 kg |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Rack mount kit |
|
| Package weight Weight of the packaged product. | 5.52 kg |
| Sustainability | |
| Sustainability certificates | CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Expansion slots List of I/O expansion card slots; including quantity of each | 2x PCIe Gen3 (x4 slot, x2 speed) |
| I/O ports An interface on a device to which you can connect another device. | 2x USB 3.2 Gen 1, 2 x 5GbE, 2 x 1GbE |
| SKU | 714410 |
| MPN | QGD-1602P-C3758-16G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
