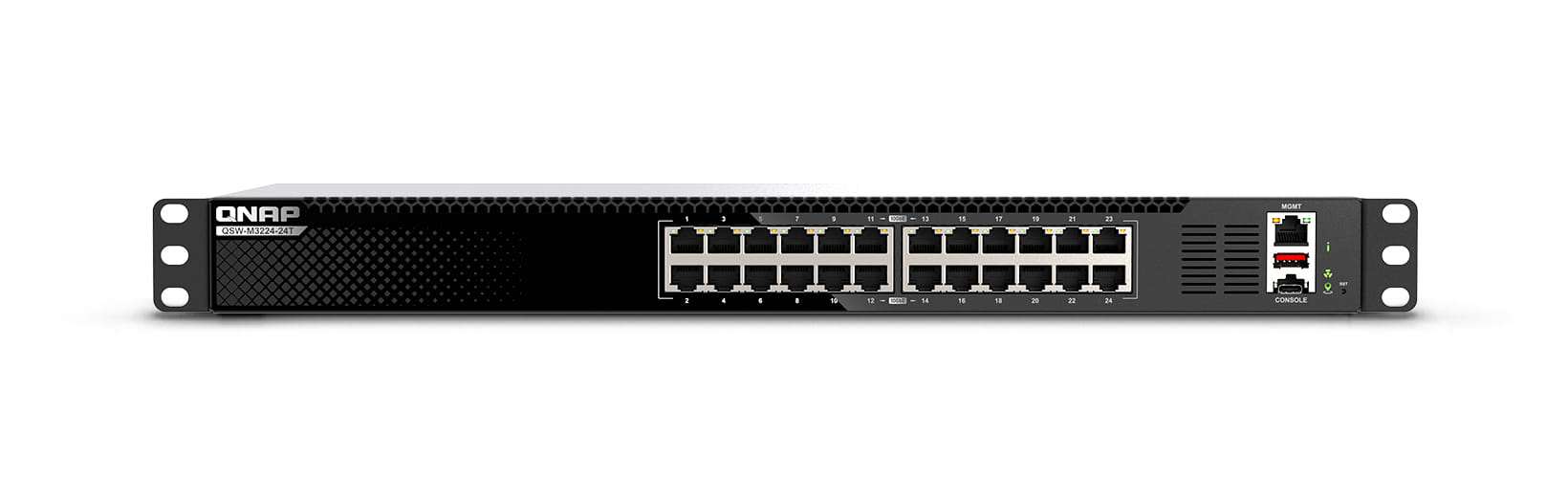

QNAP QSW-M3224-24T, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
Easier AV-over-IP configuration
Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.
User-friendly management interface
QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
Easier AV-over-IP configuration
Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.
User-friendly management interface
QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| Number of management ports | 1 pc(s) |
| Console port | USB |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 480 Gbit/s |
| Throughput | 240 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Static route |
|
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Loop protection |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Reset button |
|
| Performance | |
| Firmware upgradeable |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 116.9 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438.5 mm |
| Depth The distance from the front to the back of something. | 190 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.93 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 4.5 kg |
| Certificates | |
| Certification | CE, FCC, VCCI, BSMI |
| SKU | 812062 |
| MPN | QSW-M3224-24T |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Return To Base Warranty |
