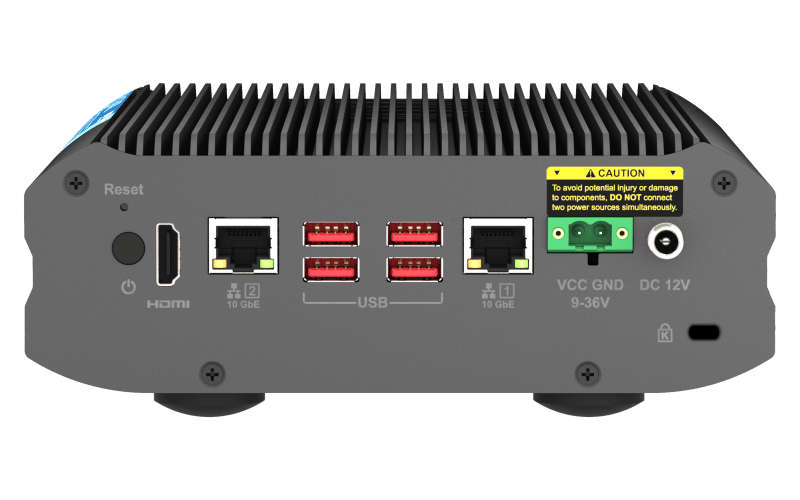

4-bay Desktop NAS, Intel Atom x6425E quad-core, onboard 8GB RAM (not expandable), 4 x 2.5-inch SATA slots
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40 DegF ~ 158 DegF) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
4K HDMI output
Supports 4K playback and real-time transcoding.
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
< xml version="1.0" encoding="utf-8" >
| Name | Value |
|---|---|
| Bays | 4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Buttons | Power, Reset |
| Capacity | Disckless |
| Dimensions (HxWxD) | 65 - 180 - 254 mm |
| Encryption Engine | Yes (AES-NI) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Floating Point Unit | Yes |
| Form Factor | Tower |
| Graphic Processors | Intel UHD Graphics for 10th Gen Intel Processors |
| Hardware-accelerated Transcoding | Yes |
| HDMI Output | 1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Hot-swappable | Yes |
| Jumbo Frame | Yes |
| Kensington Security Slot | Yes |
| LAN Port | 2 x 10GBASE-T (10G/5G/2.5G/1G) |
| LED Indicators | Power/Status, LAN, SSD 1-4 |
| Operating Temperature | -40 - 70 DegC (-40 DegF - 158 DegF) |
| Power Supply Unit | External Power Adapter, 90W and above, AC 100-240V,. 9-36V DC input |
| Processor/Memory | Intel Atom x6425E 4-core/4-thread processor, burst up to 3.0 GHz / 8 GB on board |
| Raid | JBOD, Single, RAID 0, 1, 5, 6, 10 |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27 DegC (80.6 DegF) |
| Series | QNAP Business |
| SSD Cache Acceleration Support | Yes |
| Storage Temperature | -45 - 85 DegC (-49 DegF - 185 DegF) |
| System Warning | Buzzer |
| USB Port | 4 x USB 3.2 Gen 2 (10Gbps) Port |
| Wake on LAN (WOL) | Yes |
| Warranty | 3 Years |
| Weight (Gross) | 3.73 kg |
| Weight (Net) | 2.54 kg |
| Storage | |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 4 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Atom® |
| Processor model The model number for the processor in a computer. | x6425E |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3 GHz |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T |
| Wake-on-LAN ready |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | LAN, Power, SSD, Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Buzzer |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Power | |
| Power supply location Where the power supply is positioned. | External |
| Power supply unit (PSU) capacity | 90 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 254 mm |
| Height The measurement of the product from head to foot or from base to top. | 65 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.54 kg |
| Package weight Weight of the packaged product. | 3.73 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -45 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 681541 |
| MPN | TS-I410X-8G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
