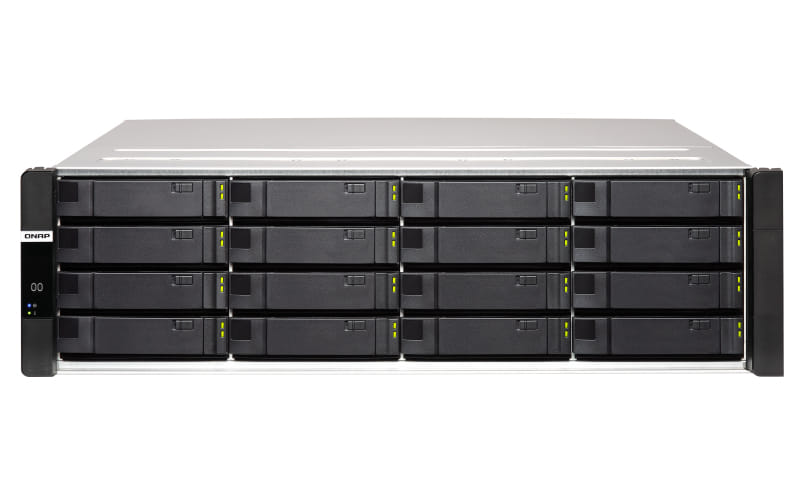

QNAP ES1686dc 16-Bay D-2142IT 8-Core 48GB RDIMM Enterprise ZFS 3U Rackmount NAS
Item No:
378455
MPN:
ES1686DC-2142IT-96G
$32,148.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
QNAP ES1686dc, NAS, Rack (3U), Intel xeon D, D-2142IT, Black
Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel xeon D processors, dual active controllers, up to 512GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.
Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.
Active-Standby single-controller system
With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.
Active-Active dual-controller system
Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.
Intel xeon D dual-controller ensures high availability and failure-resistant service
Powered by two Intel xeon D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.
Multi-level cache technology with both read and write
The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.
Up to 512GB main memory
Each controller has eight RDIMM slots, allowing for up to 512GB memory.
M.2 SSD cache
Two M.2 SSD slots (support PCIe Gen3 x4 or SATA 6Gb/s SSDs) provide the ability to enable SSD caching to increase IOPS performance.
NVRAM cache reduces the risk of losing write cache data
If unplanned power outages occur, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure that data is not lost.
PCIe expansion for 40GbE high-speed networks
The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox Smart NICs further adds support for iSER for improved VMware virtualization performance. You can also install a QM2 expansion card (QM2-4P-384) to add four additional M.2 2280 PCIe NVMe SSD slots to burst reading performance with SSD caching, or a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.
Dual controller NAS: High reliability and high availability
Reliability is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.
Leverage the 6Gbps SAS to SATA drive adapter
While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS, and allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA into the dual-controller ES1686dc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.
QES 2.1.0: ZFS-based, and optimized for all flash performance
The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.
Unleashed SSD potential cost-effective and agile with ultimate performance
QES 2.1.0 features QNAP's exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise-class data management and mission-critical services.
Write Coalescing algorithm
Transforms all random writes to sequential writes along with reduced I/O. It not only effectively increases random write performance for all-flash environments but also can improve SSD lifespans.
Software-defined over-provisioning
Users can allocate an additional over-provisioning ratio for SSDs (from 1% to 60%) and Storage Pools (from 1% to 40%) for a constant performance boost of over 100%.
Deduplication and compression to maximize VDI storage performance
In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, the QES-powered ES1686dc provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.
Inline data deduplication
Block-based data deduplication optimizes storage usage and significantly decreases storage capacity requirements.
Inline compression
Shrinks data size to reduce storage I/O workloads for improved performance. In VDI, deduplicated virtual desktops are easily cached to achieve optimal virtual desktop performance.
Inline compaction
Especially helpful for increasing SSD storage utilization efficiency when highly-repetitive data or massive small files (e.g. transaction logs of banks or e-commerce) are generated. It delivers higher cost efficiency of all-flash storage systems.
Self-Healing ensures data integrity and reliability
Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.
Streamlined remote backups with nearly limitless snapshots and SnapSync
The ES1686dc supports up to 65,535 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any) and replicates snapshots to remote servers by using the block-level SnapSync. In the event of a primary site failure, SnapSync assists businesses to resume essential services in the shortest possible time.
Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent
QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software. To build a QNAP Snap Agent and VSS Hardware Provider operating environment, all applications (including VSS Service, Requestor, Provider and QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server, and the minimal requirements are only one ES1686dc and one server for it to be operational.
Compatible with VMware, Microsoft and Citrix virtualization, and supports iSER
The ES1686dc supports VMware vSphere 6.5, Windows Server 2016, and Citrix xenServer 7.0 for flexible deployment and management in virtualization environments. It also supports VMware VAAI and Microsoft ODx to increase performance by offloading server loading for ESxi server and Hyper-V respectively. The QNAP vSphere Client plug-in, Web plug-in and QNAP SMI-S provider are also supported to increase the efficiency of operations and management in virtualization applications. The ES1686dc and VMware ESxi server installed with Mellanox Smart NICs that support iSER can acquire iSER advantages to offload CPU workloads with boosted VMware virtualization performance.
QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QES supports OpenStack Cinder and Manila file sharing services. With the QNAP Cinder Driver, the ES1686dc can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms, providing businesses with a flexible, easy-to-use, and low-cost storage solution.
Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.
Active-Standby single-controller system
With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.
Active-Active dual-controller system
Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.
Intel xeon D dual-controller ensures high availability and failure-resistant service
Powered by two Intel xeon D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.
Multi-level cache technology with both read and write
The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.
Up to 512GB main memory
Each controller has eight RDIMM slots, allowing for up to 512GB memory.
M.2 SSD cache
Two M.2 SSD slots (support PCIe Gen3 x4 or SATA 6Gb/s SSDs) provide the ability to enable SSD caching to increase IOPS performance.
NVRAM cache reduces the risk of losing write cache data
If unplanned power outages occur, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure that data is not lost.
PCIe expansion for 40GbE high-speed networks
The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox Smart NICs further adds support for iSER for improved VMware virtualization performance. You can also install a QM2 expansion card (QM2-4P-384) to add four additional M.2 2280 PCIe NVMe SSD slots to burst reading performance with SSD caching, or a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.
Dual controller NAS: High reliability and high availability
Reliability is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.
Leverage the 6Gbps SAS to SATA drive adapter
While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS, and allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA into the dual-controller ES1686dc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.
QES 2.1.0: ZFS-based, and optimized for all flash performance
The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.
Unleashed SSD potential cost-effective and agile with ultimate performance
QES 2.1.0 features QNAP's exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise-class data management and mission-critical services.
Write Coalescing algorithm
Transforms all random writes to sequential writes along with reduced I/O. It not only effectively increases random write performance for all-flash environments but also can improve SSD lifespans.
Software-defined over-provisioning
Users can allocate an additional over-provisioning ratio for SSDs (from 1% to 60%) and Storage Pools (from 1% to 40%) for a constant performance boost of over 100%.
Deduplication and compression to maximize VDI storage performance
In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, the QES-powered ES1686dc provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.
Inline data deduplication
Block-based data deduplication optimizes storage usage and significantly decreases storage capacity requirements.
Inline compression
Shrinks data size to reduce storage I/O workloads for improved performance. In VDI, deduplicated virtual desktops are easily cached to achieve optimal virtual desktop performance.
Inline compaction
Especially helpful for increasing SSD storage utilization efficiency when highly-repetitive data or massive small files (e.g. transaction logs of banks or e-commerce) are generated. It delivers higher cost efficiency of all-flash storage systems.
Self-Healing ensures data integrity and reliability
Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.
Streamlined remote backups with nearly limitless snapshots and SnapSync
The ES1686dc supports up to 65,535 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any) and replicates snapshots to remote servers by using the block-level SnapSync. In the event of a primary site failure, SnapSync assists businesses to resume essential services in the shortest possible time.
Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent
QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software. To build a QNAP Snap Agent and VSS Hardware Provider operating environment, all applications (including VSS Service, Requestor, Provider and QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server, and the minimal requirements are only one ES1686dc and one server for it to be operational.
Compatible with VMware, Microsoft and Citrix virtualization, and supports iSER
The ES1686dc supports VMware vSphere 6.5, Windows Server 2016, and Citrix xenServer 7.0 for flexible deployment and management in virtualization environments. It also supports VMware VAAI and Microsoft ODx to increase performance by offloading server loading for ESxi server and Hyper-V respectively. The QNAP vSphere Client plug-in, Web plug-in and QNAP SMI-S provider are also supported to increase the efficiency of operations and management in virtualization applications. The ES1686dc and VMware ESxi server installed with Mellanox Smart NICs that support iSER can acquire iSER advantages to offload CPU workloads with boosted VMware virtualization performance.
QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QES supports OpenStack Cinder and Manila file sharing services. With the QNAP Cinder Driver, the ES1686dc can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms, providing businesses with a flexible, easy-to-use, and low-cost storage solution.
| Storage | |
| Supported storage drive interfaces | Serial ATA III,Serial Attached SCSI (SAS) |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60 |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | ZFS |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD,SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 16 |
| Processor | |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® D |
| Processor model The model number for the processor in a computer. | D-2142IT |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.9 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 512 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 8x R-DIMM/LR-DIMM |
| Internal memory A computer's memory which is directly accessible to the CPU. | 48 GB |
| Flash memory | 4000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, IPv4, IPv6, CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC |
| Link aggregation |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 4 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (3U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| LED indicators | Power,Status,System |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud,iSCSI LUN |
| Multilingual support |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55.8 dB |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Access Control List (ACL) |
|
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox |
| Hot spare |
|
| S.M.A.R.T. support |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QNAP Enterprise System |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 770 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 500.87 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483.1 mm |
| Depth The distance from the front to the back of something. | 630.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 132 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 25.8 kg |
| Package weight Weight of the packaged product. | 32.7 kg |
| Packaging content | |
| Cables included | AC,LAN (RJ-45) |
| Quick installation guide |
|
| Rack mount kit |
|
| Number of screws | 128 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC A (USA) CE ( EN55022 A, EN55024) EN60950 BSMI VCCI CB LVD |
| SKU | 378455 |
| MPN | ES1686DC-2142IT-96G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Product Use | General |
