QNAP QXG-100G2SF-E810, Internal, Wired, PCI Express, Fiber, 100000 Mbit/s

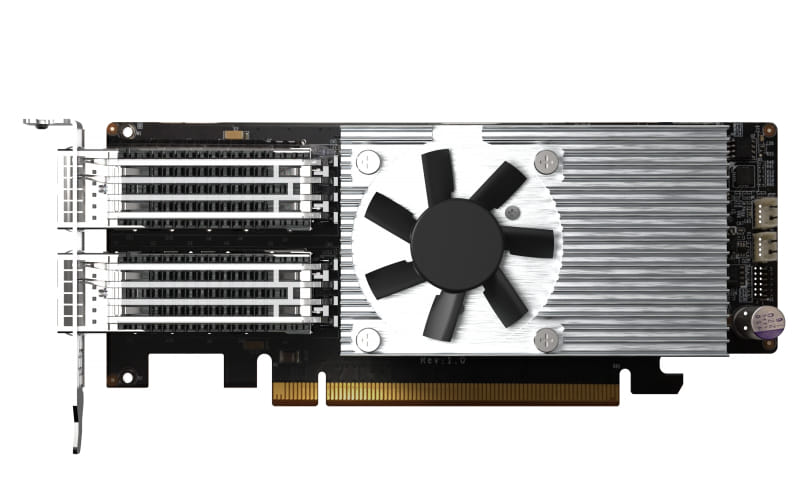

The dual-port QXG-100G2SF-E810 100 GbE network expansion card with Intel Ethernet Controller E810 supports PCIe 4.0 and provides up to 100Gbps bandwidth to overcome performance bottlenecks. With iWARP/RDMA and SR-IOV support (available soon), the QXG-100G2SF-E810 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization and data centers. The QXG-100G2SF-E810 is a perfect match for all-flash storage to realize the highest performance potential for ever-demanding IT challenges.
Ensure reliable data transfer with Forward Error Correction (FEC)
The QXG-100G2SF-E810 supports FEC to overcome packet loss
Ensure reliable data transfer with Forward Error Correction (FEC)
The QXG-100G2SF-E810 supports FEC to overcome packet loss
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Fiber |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | QSFP28 |
| PCI version | 4.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 100000 Mbit/s |
| Design | |
| Internal The product is built in. |
 |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Packaging content | |
| Mounting brackets included |
|
| Quick installation guide |
|
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 760781 |
| MPN | QXG-100G2SF-E810 |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.qnap.com/ |
