QNAP AMD Ryzen 7000 series 8C16T/32GB NAS
Item No:
824131
MPN:
TS-h1277AFX-R7-32G
$10,443.87
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate

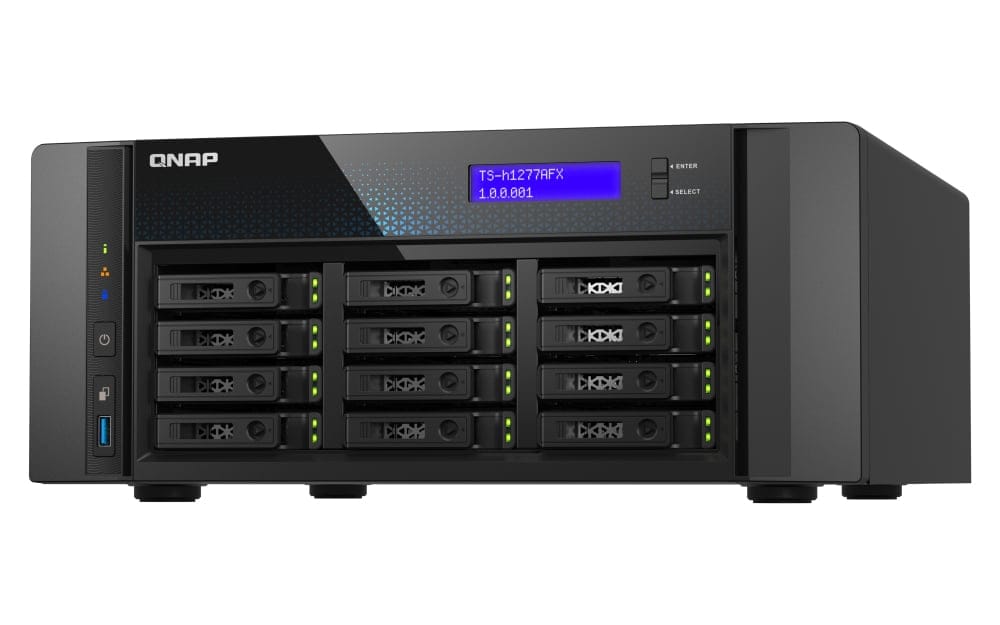

QNAP TS-H1277AFX-R7-32G, NAS, Tower, AMD Ryzen™ 7, 32 GB, DDR5, 0 TB
TS-h1277AFX
High-performance all-flash NAS
High-performance all-flash NAS
| Storage | |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Number of system drives supported | 12 |
| System drive capacity | 4 GB |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10, 50, 60 |
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Bad block scan |
|
| Disk roaming Disk roaming is moving the physical disks from one cable connection or backplane slot to another on the same controller. The controller automatically recognizes the relocated physical disks and logically places them in the virtual disks that are part of the disk group. You can perform disk roaming only when the system is turned off. |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor generation | AMD Ryzen 9000 Series |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 7 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.8 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.5 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 4 |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| iSCSI support |
|
| Dynamic DNS (DDNS) |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| Fan diameter 2 | 9.2 cm |
| LED indicators |
|
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 69.01 dB |
| Snapshot |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| System log |
|
| Hot spare |
|
| Disk scan |
|
| S.M.A.R.T. support |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QuTS hero |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 5.2.3 |
| Power | |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 368 mm |
| Depth The distance from the front to the back of something. | 362 mm |
| Height The measurement of the product from head to foot or from base to top. | 157.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8 kg |
| Package width The distance from one side of the packaging to the other. | 494 mm |
| Package depth The distance from the front to the back of the packaging. | 258 mm |
| Package height The distance from the top to the bottom of the packaging. | 525 mm |
| Package weight Weight of the packaged product. | 8.9 kg |
| Packaging content | |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| SKU | 824131 |
| MPN | TS-h1277AFX-R7-32G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.qnap.com/ |
