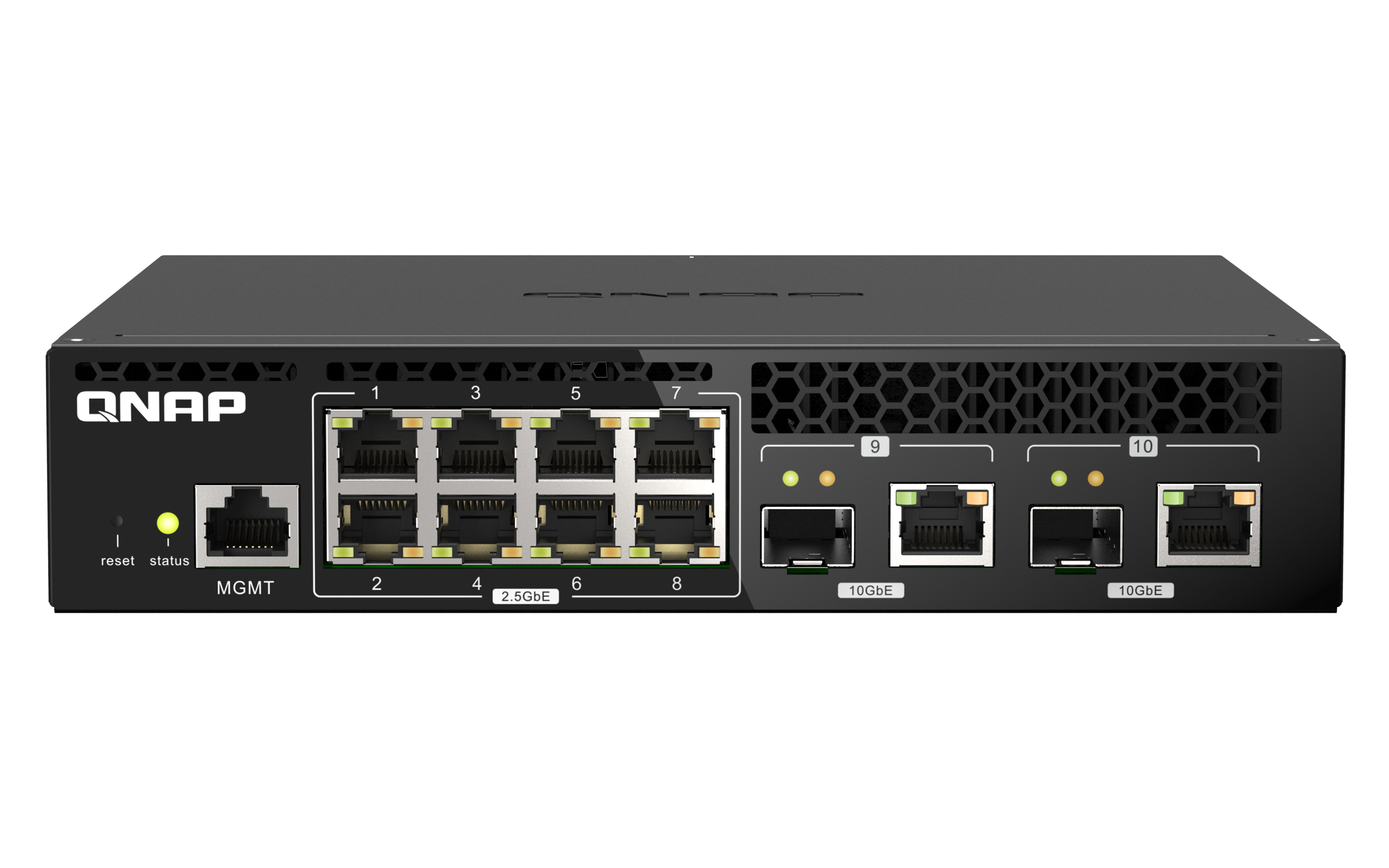

QNAP QSW M2108R 2C, Managed, L2, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Rack mounting
Entry level 10GbE and 2.5GbE Layer 2 Web Managed Half Width Rackmount Switch for Small Businesses
The QSW M2108R 2C is a Layer 2 Web Managed Switch with two 10GbE SFP /RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user friendly web user interface, the QSW M2108R 2C offers flexible deployment in hybrid high speed network environments and provides an entry level network management solution. With a half width design, two QSW M2108R 2C can be installed in a 1U rack space for space saving. The QSW M2108R 2C is compatible with 10GbE and NBASE T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.
Half width design, 2 models in 1U
With a half width rackmount design, two QSW M2108R 2C can be installed in a 1U rack space for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 10G SFP fiber and Gigabit ports
The QSW M2108R 2C provides two 10GbE SFP /RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high speed networks. With SFP interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP devices. You can also use RJ45 ports to connect 10GBASE T/NBASE T devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW M2108 2C is 80Gbps, guaranteeing the full potential of each port.
Flexible deployment combo ports and 10GbE / NBASE T
The QSW M2108R 2C is compatible with 10GbE and NBASE T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP /RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Fully embrace High Speed Networking with QNAP!
QNAP offers comprehensive, budget friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth hungry applications.
A fast NAS
A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi Gig
Add a 5GbE port to laptops
Laptops and upgrade limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy to use Web GUI with value added functions to simplify network set up and management.
Sleek Design
Use the at a glance major functions, flat control layers and one click login to simplify set up and management.
GUI
The visual illustration matches physical ports for greater usability.
Value added
With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.
QSS: Human centered settings guide
QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW M2108R 2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
LACP
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.
VLAN
Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.
QoS
QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.
IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Powerful security and system functions
The QSW M2108R 2C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
ACL
Access controls
Security system
LLDP
Device disclosure
Troubleshooting
RSTP
Loop prevention
Backup path
Flow Control
Balance speed
Jam prevention
Dependable performance with effective heat dissipation
With a compact metal body, the QSW M2108R 2C provides stable and reliable operations while staying near silent even when under full load. The front panel LEDs also assist in viewing the current system status.
The QSW M2108R 2C is a Layer 2 Web Managed Switch with two 10GbE SFP /RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user friendly web user interface, the QSW M2108R 2C offers flexible deployment in hybrid high speed network environments and provides an entry level network management solution. With a half width design, two QSW M2108R 2C can be installed in a 1U rack space for space saving. The QSW M2108R 2C is compatible with 10GbE and NBASE T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.
Half width design, 2 models in 1U
With a half width rackmount design, two QSW M2108R 2C can be installed in a 1U rack space for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 10G SFP fiber and Gigabit ports
The QSW M2108R 2C provides two 10GbE SFP /RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high speed networks. With SFP interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP devices. You can also use RJ45 ports to connect 10GBASE T/NBASE T devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW M2108 2C is 80Gbps, guaranteeing the full potential of each port.
Flexible deployment combo ports and 10GbE / NBASE T
The QSW M2108R 2C is compatible with 10GbE and NBASE T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP /RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
Fully embrace High Speed Networking with QNAP!
QNAP offers comprehensive, budget friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth hungry applications.
A fast NAS
A QNAP NAS with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade desktops and servers
Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi Gig
Add a 5GbE port to laptops
Laptops and upgrade limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy to use Web GUI with value added functions to simplify network set up and management.
Sleek Design
Use the at a glance major functions, flat control layers and one click login to simplify set up and management.
GUI
The visual illustration matches physical ports for greater usability.
Value added
With the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.
QSS: Human centered settings guide
QSS provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW M2108R 2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
LACP
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.
VLAN
Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.
QoS
QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.
IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Powerful security and system functions
The QSW M2108R 2C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
ACL
Access controls
Security system
LLDP
Device disclosure
Troubleshooting
RSTP
Loop prevention
Backup path
Flow Control
Balance speed
Jam prevention
Dependable performance with effective heat dissipation
With a compact metal body, the QSW M2108R 2C provides stable and reliable operations while staying near silent even when under full load. The front panel LEDs also assist in viewing the current system status.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 80 Gbit/s |
| Throughput | 40 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | CLASS A |
| Certification | CE, FCC, VCCI, BSMI |
| Performance | |
| Firmware upgradeable |
|
| Fanless |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 60 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 207 mm |
| Depth The distance from the front to the back of something. | 199.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.2 kg |
| Packaging data | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package weight Weight of the packaged product. | 1.92 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 729206 |
| MPN | QSW-M2108R-2C |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
