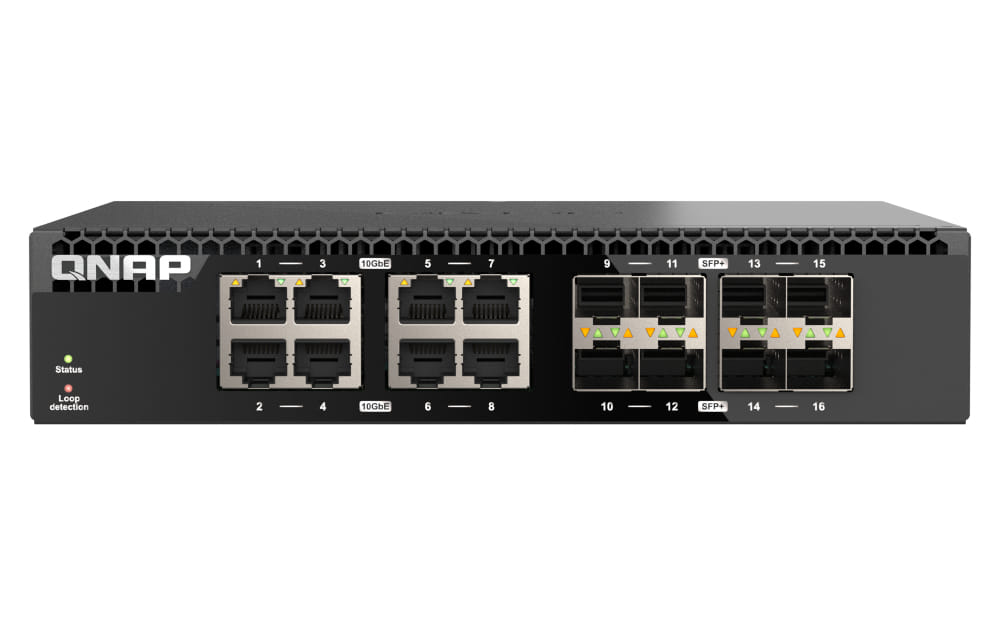

QNAP QSW-3216R-8S8T, Unmanaged, L2, 10G Ethernet (100/1000/10000), Rack mounting
QSW-3216R-8S8T
Half-width Rackmount 16-Port 10GbE Unmanaged Switch for SMB/SOHO high-speed networking environment
More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-3216R-8S8T is a half-width rackmount Unmanaged Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Featuring plug-and-play set up, the QSW-3216R-8S8T provides network loop detection and blocking functions, making it easy to create an affordable high-speed network environment for your home or business. With a half-width design, the QSW-3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space The QSW-3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Half-width design, two models in 1U
With a half-width rackmount design, a QSW-3216R-8S8T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.
Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports
The QSW-3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling.
Instantly build a plug-and-play high-speed network
No complex settings are required to use the QSW-3216R-8S8T - simply connect your devices with existing cables and it
Half-width Rackmount 16-Port 10GbE Unmanaged Switch for SMB/SOHO high-speed networking environment
More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-3216R-8S8T is a half-width rackmount Unmanaged Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Featuring plug-and-play set up, the QSW-3216R-8S8T provides network loop detection and blocking functions, making it easy to create an affordable high-speed network environment for your home or business. With a half-width design, the QSW-3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space The QSW-3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Half-width design, two models in 1U
With a half-width rackmount design, a QSW-3216R-8S8T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.
Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports
The QSW-3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling.
Instantly build a plug-and-play high-speed network
No complex settings are required to use the QSW-3216R-8S8T - simply connect your devices with existing cables and it
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 8 |
| Power connector | AC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 320 Gbit/s |
| Throughput | 160 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Loop, Status |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 80 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 207 mm |
| Depth The distance from the front to the back of something. | 199.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.52 kg |
| Packaging content | |
| Manual |
|
| Packaging data | |
| Package weight Weight of the packaged product. | 2.23 kg |
| Sustainability | |
| Sustainability compliance |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| SKU | 812059 |
| MPN | QSW-3216R-8S8T |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.qnap.com/ |
