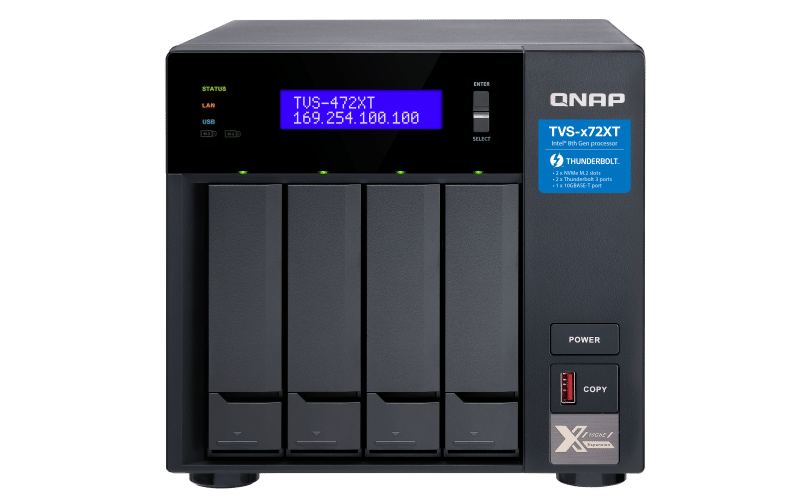

QNAP 4-Bay Pentium Gold G5400T Dual-Core 4GB SODIMM Tower NAS

Storage
Supported storage drive interfaces	M.2,Serial ATA III
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0,1,5,6,10,JBOD
Online RAID migration
Online RAID expansion
RAID rebuild
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	FAT32,HFS+,NTFS,exFAT,ext3,ext4
Storage drives installed Storage drives are built into the system.
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD,SSD
Number of storage drives supported How many storage drives can be fit into the product at once.	4
Bad block scan

Processor
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Pentium®
Processor model The model number for the processor in a computer.	G5400T
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	3.1 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Processor threads	4
Processor cache	4 MB
Bus type	DMI3
Configurable TDP-down frequency	2100 MHz
CPU configuration (max)	1
ECC supported by processor
PCI Express configurations	1x8+2x4,1x16,2x8
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Coffee Lake
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	14 nm
Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software.	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	LGA 1151 (Socket H4)
Scalability	1S
System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system.	8 GT/s
Thermal Design Power (TDP)	35 W
On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics 610
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	37.5 GB/s

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Maximum RAM supported	32 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2 x SODIMM
Internal memory A computer's memory which is directly accessible to the CPU.	4 GB
Flash memory	4000 MB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,1200,2500,5000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Jumbo frames support
iSCSI support
Wake-on-LAN ready
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, IPv4, IPv6
Link aggregation
Load balancing system
Dynamic DNS (DDNS)
WLAN adapter supported

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	3
Thunderbolt 3 ports quantity	2
3.5 mm (1/8-inch) out
PCI Express x4 (Gen 3.x) slots	1
Microphone in The socket where a microphone is connected to the device.

Graphics
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter ID	0x3E90/x93
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics) The feature may not be available on all computing systems. Functionality, performance, and other benefits of this feature may vary depending on system configuration.	3

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Tower
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	3 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	12 cm
Fan diameter 2	6 cm
LED indicators	HDD,LAN,Status,USB
Built-in display A display which is part of the product, so you do not need to attach another display.
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	1

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Home & Home Office
Backup function The function if the main power source fails.
Backup features	iSCSI LUN
Buzzer
Multilingual support
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	28.1 dB
Snapshot
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	256-bit AES,HTTPS,SSH,SSL/TLS
Access Control List (ACL)
Web-based management Using a website/web application to manage something.
Reset button
On/off switch The button which is pressed to switch the device on or off.
Built-in iTunes server
Built-in FTP server
Browser supported List of supported browsers for this product.	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
System log
Hot spare
S.M.A.R.T. support
Share folder	CIFS/SMB
Share folder access right management
Universal Plug and Play (UPnP)

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	QNAP Turbo System
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	4.4.0
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016

Power
Power supply unit (PSU) capacity	250 W
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	37.32 W
Power consumption (HDD standby)	24.14 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
Fan voltage	12 V

Weight & dimensions
Width The measurement or extent of something from side to side.	199.3 mm
Depth The distance from the front to the back of something.	279.6 mm
Height The measurement of the product from head to foot or from base to top.	188.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	5.4 kg
Package weight Weight of the packaged product.	7.01 kg

Packaging content
Cables included	AC,LAN (RJ-45)
Quick installation guide

Processor special features
Embedded options available
Enhanced Intel SpeedStep Technology
Execute Disable Bit
Idle States
Intel 64
Intel Clear Video Technology
Intel Enhanced Halt State
Intel Stable Image Platform Program (SIPP)
Intel Trusted Execution Technology
Intel TSX-NI
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel® Clear Video HD Technology (Intel® CVT HD) <b>See the World More Vividly</b> Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology.
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth.
Intel® Identity Protection Technology (Intel® IPT) <b>Protect Your Identity and Business</b> Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods.
Intel® InTru™ 3D Technology Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4.
Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel.
Intel® Quick Sync Video Technology <b>Create, Edit, and Share Video in a Flash</b> Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier.
Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security.
Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies
Thermal solution specification Intel Reference Heat Sink specification for proper operation of this SKU.	PCG 2015A
Memory channels supported by processor	Dual
Memory types supported by processor	DDR4-SDRAM

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Certificates
Digital Living Network Alliance (DLNA) certified The product has been certified by the Digital Living Network Alliance (DLNA), which is a non-profit collaborative trade organization established by Sony in June 2003 that is responsible for defining interoperability guidelines to enable sharing of digital media between multimedia devices

Other features
Processor ARK ID	129949
