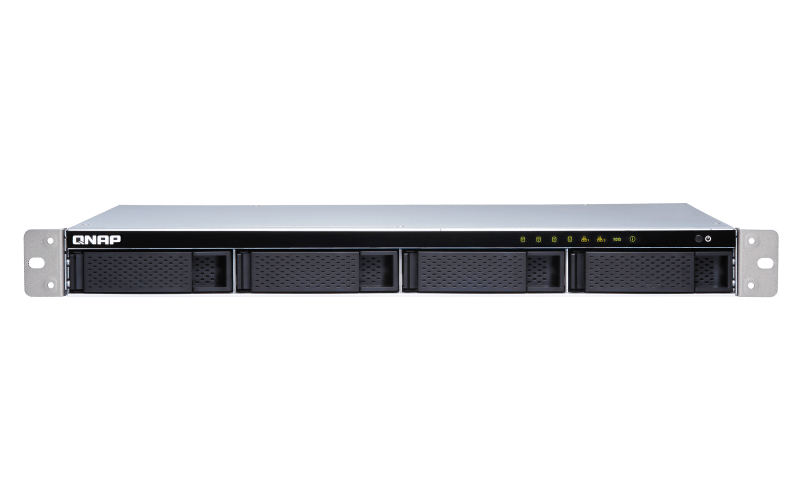

4-Bay quad-core 1.7 GHz short-depth rackmount NAS with 100W power supply, 8GB DDR3 SODIMM RAM (max 8GB), SATA 6Gb/s, 1x 10GbE SFP+ LAN, 2x GbE LAN, hardware encryption, Container Station, Surveillance Station: free 2, max 30, up to 1x UX-800U/UX-1200U expansion units
Storage
Supported storage drive interfaces
Serial ATA,Serial ATA II,Serial ATA III
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5,3.5"
RAID support
The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0,1,5,6,10,JBOD
Hot-swap drive bays
The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems
FAT32,HFS+,NTFS,exFAT,ext3,ext4
Storage drives installed
Storage drives are built into the system.
Installed storage drive type
Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types
The type of storage drives the device is compatible with.
HDD,SSD
Number of storage drives supported
How many storage drives can be fit into the product at once.
4
Bad block scan
Processor
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Annapurna Labs
Processor model
The model number for the processor in a computer.
Alpine AL-314
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
1.7 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
4
Memory
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR3
Memory clock speed
The frequency at which the memory (e.g. RAM) runs.
1600 MHz
Maximum RAM supported
8 GB
Memory slots
Number and type of memory expansion slots, including connector and memory module descriptions.
1
Internal memory
A computer's memory which is directly accessible to the CPU.
8 GB
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
DHCP client
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server
A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Jumbo frames support
iSCSI support
Wake-on-LAN ready
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
USB port
The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP+
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
Rack (1U)
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Product colour
The colour e.g. red, blue, green, black, white.
Black,Stainless steel
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
4 cm
LED indicators
HDD,LAN,Status
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Performance
Type
Characteristics of the device.
NAS
Device class
The category to which this device belongs.
Small & Medium Business
Backup function
The function if the main power source fails.
Buzzer
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
20.3 dB
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
256-bit AES
Access Control List (ACL)
Web-based management
Using a website/web application to manage something.
Reset button
On/off switch
The button which is pressed to switch the device on or off.
Browser supported
List of supported browsers for this product.
Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Universal Plug and Play (UPnP)
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
QNAP Turbo System
Operating system version
The version of the operating system used e.g. 4.1, 4.2 for Android.
4.3
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Power
Power supply location
Where the power supply is positioned.
Built-in
Power supply unit (PSU) capacity
100 W
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
30.99 W
Power consumption (HDD standby)
12.42 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Fan voltage
12 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
439 mm
Depth
The distance from the front to the back of something.
291 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4.15 kg
Package weight
Weight of the packaged product.
5.78 kg
Packaging content
Cables included
AC,LAN (RJ-45)
Quick installation guide
Number of screws
28
Package type
The type of product package e.g. box.
Box
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
