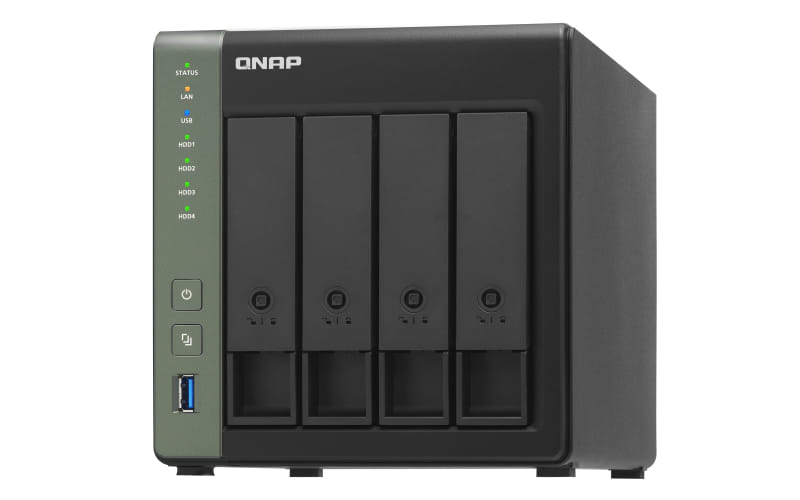

QNAP TS-431X3, NAS, Tower, Annapurna Labs, AL314, Black
The quad-core TS-431X3 provides four drive bays for high-capacity storage with expandable memory up to 8GB RAM to meet data backup, recovery, and virtualized storage needs of SMBs. The built-in 10GbE SFP+ port provides high bandwidth for intensive data transmission. Coupled with the QNAP 10GbE switch, you can build a high-speed 10GbE network environment. The TS-431X3 also features a 2.5GbE RJ45 port and a 1GbE RJ45 port for enhancing team file sharing and collaboration efficiency. The TS-431X3 provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.
High-speed 10GbE and 2.5GbE connectivity
Powered by AnnapurnaLabs AL-314 quad-core 1.7 GHz processor with 4 GB DDR3L RAM (expandable to 8 GB), the TS-431X3 features one 10 GbE SFP+ port, one 2.5 GbE RJ45 port and one Gigabit port, allowing you to enjoy higher transfer speeds using existing CAT5e or CAT6 RJ45 Cables in your network environment. Coupled with QNAP QSW series network switch, you can easily build a high-speed network affordably. You can also use your laptop with a QNAP USB 3.2 Gen 1 to 5GbE adapter (QNA-UC5G1T) or your desktop computer with a QNAP 5 GbE network expansion card (QXG-5G1T-111C) and directly connect to the TS-431X3's 2.5GbE port to enjoy 2.5 times faster transfer speeds.
Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, coupled with high-speed 10GbE and 2.5GbE connectivity of the TS-431X3, allowing you to easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431X3 into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431X3 will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Boost productivity with QNAP applications
QNAP File Station provides centralized file management allowing you to view and manage files on your TS-431X3 and other storage sources or devices. Qfiling helps automate file organization, and Qsirch can make your file searches faster. You can also use Qfile mobile app to access NAS files from a mobile device.
Protects your sensitive data with file encryption
When sharing sensitive or confidential files on your TS-431X3, you can enhance data security by using File Station to encrypt them into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view and use encrypted .qenc files.
Protect data against malware with Snapshots
Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431X3 supports up to 64 snapshots per volume/LUN, and up to 256 snapshots in total.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor can evaluate and recommend TS-431X3 security settings to improve NAS security.
Host container applications
Container Station integrates both LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub, easily import or export container apps, manage access controls and rapidly deploy application services across several platforms including the cloud, servers, and PCs.
High-speed 10GbE and 2.5GbE connectivity
Powered by AnnapurnaLabs AL-314 quad-core 1.7 GHz processor with 4 GB DDR3L RAM (expandable to 8 GB), the TS-431X3 features one 10 GbE SFP+ port, one 2.5 GbE RJ45 port and one Gigabit port, allowing you to enjoy higher transfer speeds using existing CAT5e or CAT6 RJ45 Cables in your network environment. Coupled with QNAP QSW series network switch, you can easily build a high-speed network affordably. You can also use your laptop with a QNAP USB 3.2 Gen 1 to 5GbE adapter (QNA-UC5G1T) or your desktop computer with a QNAP 5 GbE network expansion card (QXG-5G1T-111C) and directly connect to the TS-431X3's 2.5GbE port to enjoy 2.5 times faster transfer speeds.
Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, coupled with high-speed 10GbE and 2.5GbE connectivity of the TS-431X3, allowing you to easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431X3 into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431X3 will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Boost productivity with QNAP applications
QNAP File Station provides centralized file management allowing you to view and manage files on your TS-431X3 and other storage sources or devices. Qfiling helps automate file organization, and Qsirch can make your file searches faster. You can also use Qfile mobile app to access NAS files from a mobile device.
Protects your sensitive data with file encryption
When sharing sensitive or confidential files on your TS-431X3, you can enhance data security by using File Station to encrypt them into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view and use encrypted .qenc files.
Protect data against malware with Snapshots
Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431X3 supports up to 64 snapshots per volume/LUN, and up to 256 snapshots in total.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor can evaluate and recommend TS-431X3 security settings to improve NAS security.
Host container applications
Container Station integrates both LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub, easily import or export container apps, manage access controls and rapidly deploy application services across several platforms including the cloud, servers, and PCs.
| Storage | |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 4 |
| Bad block scan |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Annapurna Labs |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Annapurna Labs |
| Processor model The model number for the processor in a computer. | AL314 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.7 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR3 |
| Maximum RAM supported | 8 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 1 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | SO-DIMM |
| Flash memory | 512 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Link aggregation |
|
| Load balancing system |
|
| WLAN adapter supported |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| LED indicators | HDD,LAN,Power,Status,USB |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud,iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Access Control List (ACL) |
|
| Web-based management Using a website/web application to manage something. |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| System log |
|
| Hot spare |
|
| S.M.A.R.T. support |
|
| Share folder | CIFS/SMB |
| Universal Plug and Play (UPnP) |
|
| USB copy function |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QNAP Turbo System |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 4.4.2 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | External |
| Power supply unit (PSU) capacity | 90 W |
| Number of power supply units | 1 |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 219 mm |
| Height The measurement of the product from head to foot or from base to top. | 169 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.01 kg |
| Package weight Weight of the packaged product. | 3.47 kg |
| Packaging content | |
| External power adapter |
|
| Cables included | AC,LAN (RJ-45) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 436163 |
| MPN | TS-431X3-4G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
