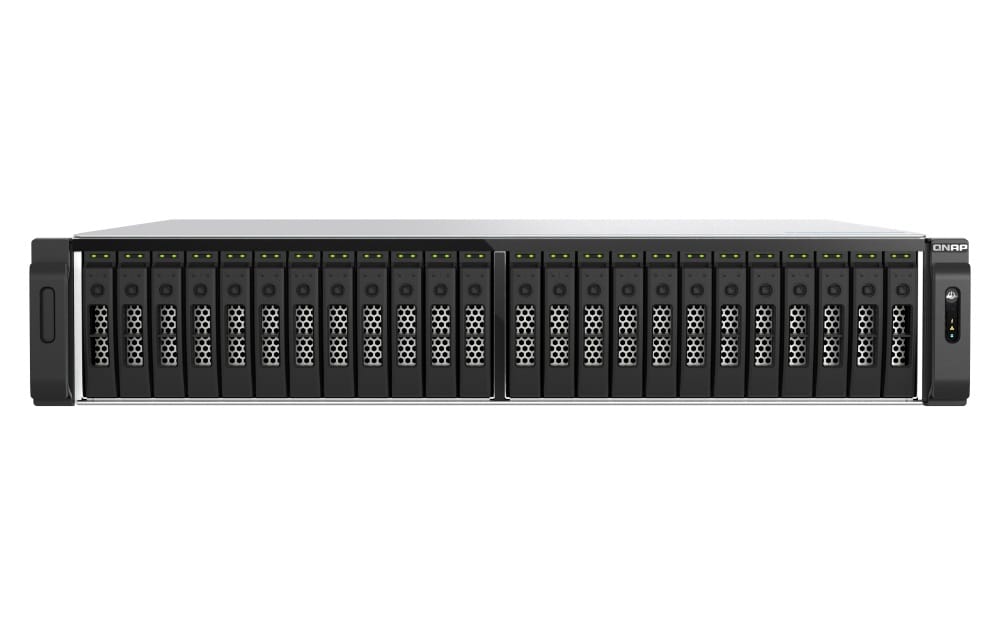

QNAP 2U 30-Bay Ryzen 5 7000 6-Core 32GB NAS
Item No:
779177
MPN:
TS-h3077AFU-R5-32G
$10,499.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz; 64-bit x86; 32 GB UDIMM DDR5 (1x 32 GB); 192 GB (4 x 48 GB) Maximum Memory; 4 x UDIMM DDR5 Memory Slot; 5GB (Dual boot OS protection); 30 x 2.5-inch SATA 6Gb/s, 3Gb/s; 2.5-inch SATA solid state drives
| Storage | |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 30 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 5 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.1 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 6 |
| Processor threads | 12 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 4 |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500 Mbit/s |
| Jumbo frames support |
|
| Wake-on-LAN ready |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Metallic |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| LED indicators | LAN, Power, SSD, Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Buzzer |
|
| Snapshot |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 380.23 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482.1 mm |
| Depth The distance from the front to the back of something. | 549.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.4 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| SKU | 779177 |
| MPN | TS-h3077AFU-R5-32G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Rackmounted |
| NAS Bays | 30.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
