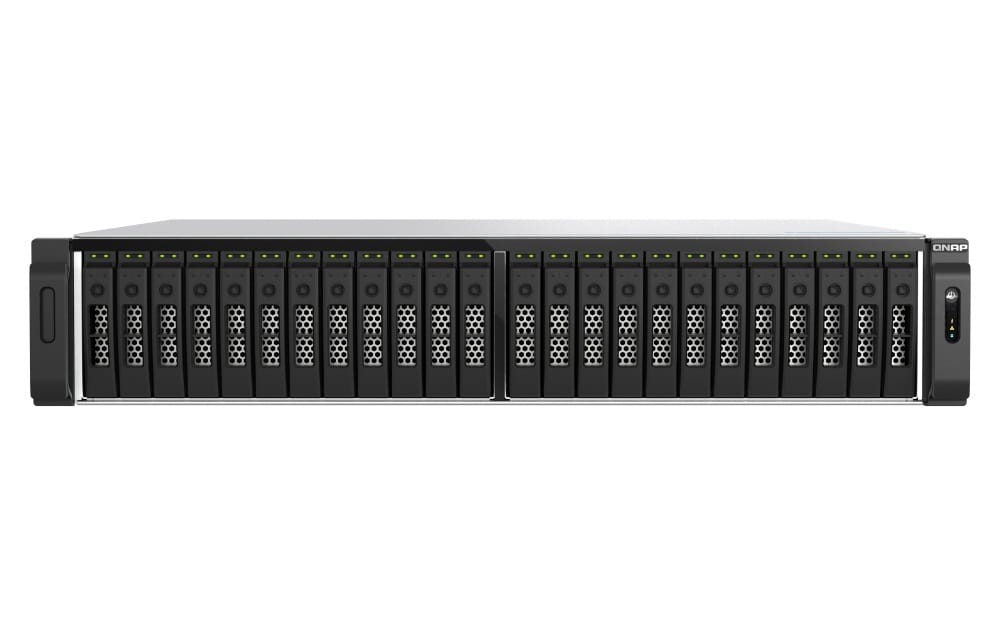

QNAP 2U 30-Bay 2.5" SATA Ryzen 7 7000, 64GB RAM, All Flash NAS
Item No:
779180
MPN:
TS-h3077AFU-R7-64G
$13,443.87
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz; 64-bit x86; 64 GB UDIMM DDR5 (2x 32 GB); 192 GB (4 x 48 GB) Maximum Memory; 4 x UDIMM DDR5; 30 x 2.5-inch SATA 6Gb/s, 3Gb/s; 2.5-inch SATA solid state drives; 2 x 10GBASE-T (10G/5G/2.5G/1G/100M); 2 x Type-A USB 3.2 Gen 2 10Gbps; 2U Rackmount; Power Status, SSD 1-30, Status, LAN, storage expansion port status
| Storage | |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 30 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 5 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5.3 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 64 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 4 |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | UDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500 Mbit/s |
| Jumbo frames support |
|
| Wake-on-LAN ready |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Metallic |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| LED indicators | LAN, Power, SSD, Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Buzzer |
|
| Snapshot |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 380.23 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482 mm |
| Depth The distance from the front to the back of something. | 549.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.7 kg |
| Package weight Weight of the packaged product. | 18.7 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| SKU | 779180 |
| MPN | TS-h3077AFU-R7-64G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Rackmounted |
| NAS Bays | 30.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
