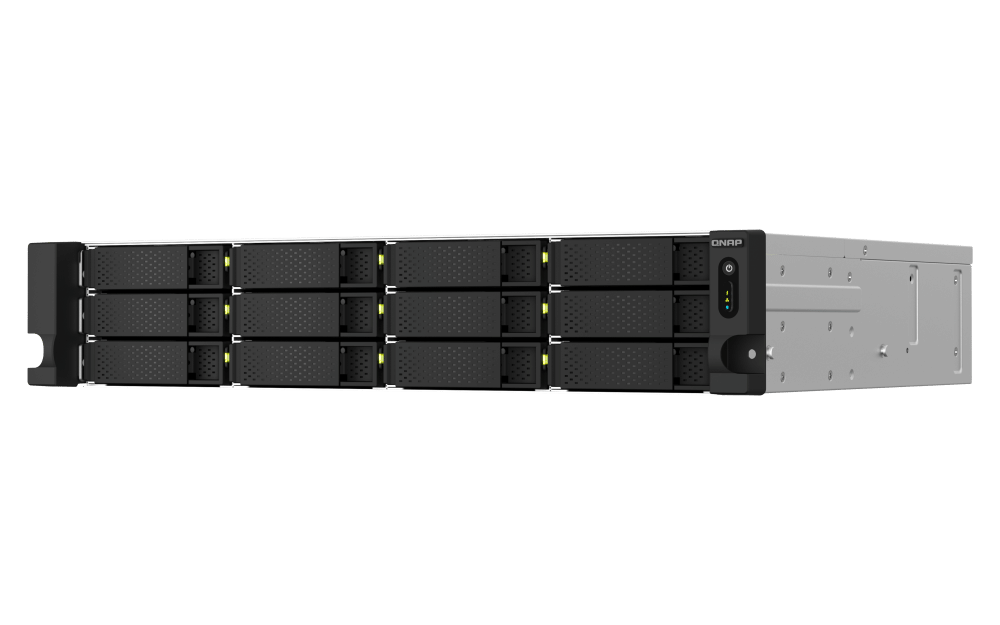

2U 12 Bay rackmount NAS, Intel Celeron N5095 quad core, 8 GB onboard not expandable, 12 x 3.5"/2.5" SATA 6Gb/s drive bays, 2 x 2.5GbE
TS 1264U RP
Intel quad core rackmount NAS with dual port 2.5GbE and PCIe expandability for high speed transmission and virtualization applications
Powered by an Intel Celeron N5095 quad core processor (burst up to 2.9GHz), the TS 1264U RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS 1264U RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS 1264U RP also supports AES 256 bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS 1264U RP also features a redundant power supply to ensure maximum system uptime.
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built in 2.5GbE (2.5G/1G/100M) ports.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS 1264U RP, including a Multi Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
Snapshots
Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.
License free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.
Drives Auto Tiering
Qtier auto tiering technology and SSD caching enable constant storage optimization.
Flexible expansion
Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.
| Name | Value |
|---|---|
| LAN Port | 2 x 2.5GbE (2.5G/1G/100M/10M) |
| Raid | JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 |
| Dimensions | 88.7 - 482.2 - 423.8 mm |
| Processor/Memory | Intel Celeron N5095 4 core/4 thread processor, burst up to 2.9 GHz; 8 GB memory on board (non expandable) |
| Series | QNAP Business |
| USB Port | 2 x USB 2.0; 2 x USB 3.2 Gen 2 (10Gbps) |
| Warranty | 3 Years |
| Weight | 9.43 kg |
| Bays | 12 x 2.5"/3.5" SATA 6Gbps |
| Capacity | Diskless |
| Form Factor | 2U Rackmount |
| Storage | |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration |
|
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Bad block scan |
|
| Disk roaming Disk roaming is moving the physical disks from one cable connection or backplane slot to another on the same controller. The controller automatically recognizes the relocated physical disks and logically places them in the virtual disks that are part of the disk group. You can perform disk roaming only when the system is turned off. |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.9 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 2 x SO-DIMM DDR4 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | SO-DIMM |
| Flash memory | 4000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Link aggregation |
|
| Load balancing system |
|
| Dynamic DNS (DDNS) |
|
| WLAN adapter supported |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4b |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminium, Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Fan diameter 2 | 8 cm |
| LED indicators | LAN, Power, Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Snapshot |
|
| Management protocols | SNMP |
| Web-based management Using a website/web application to manage something. |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, FIPS 140-2, HTTPS, SNMP |
| Access Control List (ACL) |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log |
|
| Hot spare |
|
| Disk scan |
|
| S.M.A.R.T. support |
|
| Share folder | CIFS/SMB |
| Universal Plug and Play (UPnP) |
|
| USB copy function |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QNAP QTS |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 5.0.0 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supply units | 2 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 70.913 W |
| Power consumption (sleep) | 37.854 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482.2 mm |
| Depth The distance from the front to the back of something. | 423.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.43 kg |
| Package weight Weight of the packaged product. | 14.1 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 48 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| SKU | 732272 |
| MPN | TS-1264U-RP-8G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
