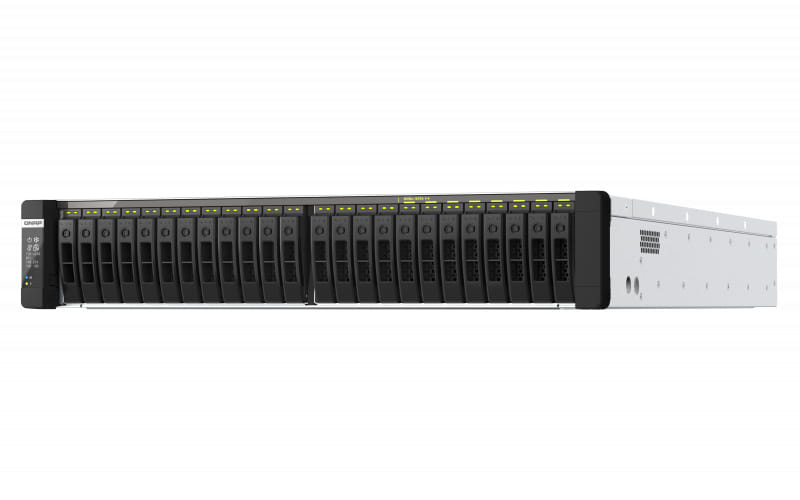

QNAP 24-Bay Xeon Silver 4314 16-Core 128GB RDIMM Rackmount NAS
Item No:
599921
MPN:
TDS-h2489FU-4314-128G
$35,444.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Qnap TDS-h2489FU-4314-128G Dual-processor nas 24 BAY 128G DDR4 Hot-swappable 2xM.2 Slot SR-IOV 4x2.5GbE 2x25GbE WOL 2xPCIe Slot 4xUSB3.2 Rackmount
Featuring dual Intel Xeon Silver 4300 processors and 24 U.2 NVMe Gen 4 x4 SSD bays, the QNAP s flagship NVMe all-flash storage TDS-h2489FU delivers high random read/write IOPS for tackling I/O-intensive and latency-sensitive applications. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling), the TDS-h2489FU meets your requirements for modern data centers, virtualization, and mission-critical backup/restore tasks.
CPU 2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 128 GB RDIMM DDR4 ECC (8 x 16 GB)
Memory Slot 32 x RDIMM DDR4 ECC (16 x slots per socket)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 24 x 2.5-inch
Hot-swappable
M.2 Slot 2
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
PCIe Slot 2
USB 3.2 Gen 1 port 4
Form Factor Rackmount
LED Indicators SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address
Buttons Power, Reset, OLED
Operating temperature 0 - 35 DegC (32 DegF - 95 DegF)
Storage Temperature -20 - 70 DegC (-4 DegF - 158 DegF)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 1200W PSU(x2), 100-240Vac
Power Consumption: Operating Mode, Typical 467.59 W
Fan 6 x 60mm, 12VDC
CPU 2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 128 GB RDIMM DDR4 ECC (8 x 16 GB)
Memory Slot 32 x RDIMM DDR4 ECC (16 x slots per socket)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 24 x 2.5-inch
Hot-swappable
M.2 Slot 2
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
PCIe Slot 2
USB 3.2 Gen 1 port 4
Form Factor Rackmount
LED Indicators SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address
Buttons Power, Reset, OLED
Operating temperature 0 - 35 DegC (32 DegF - 95 DegF)
Storage Temperature -20 - 70 DegC (-4 DegF - 158 DegF)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 1200W PSU(x2), 100-240Vac
Power Consumption: Operating Mode, Typical 467.59 W
Fan 6 x 60mm, 12VDC
| Storage | |
| Supported storage drive interfaces | M.2, Serial ATA, Serial ATA II, Serial ATA III, U.2 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,M.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60,JBOD |
| Online RAID expansion |
|
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32,HFS+,NTFS,exFAT,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 24 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Auto-rebuild |
|
| Disk roaming Disk roaming is moving the physical disks from one cable connection or backplane slot to another on the same controller. The controller automatically recognizes the relocated physical disks and logically places them in the virtual disks that are part of the disk group. You can perform disk roaming only when the system is turned off. |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Xeon Silver |
| Processor model The model number for the processor in a computer. | 4314 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.4 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.4 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 16 |
| Processor threads | 32 |
| Processor cache | 24 MB |
| Number of processors installed Number of processors in the product. | 2 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 32 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 128 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | RDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500,25000 Mbit/s |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 |
| Dynamic DNS (DDNS) |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Concurrent connections | 10000 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 6 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| LED indicators | Fan, Power, SSD, Status, Temperature |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | OLED |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, AES, FIPS 140-2, SNMPv2, SNMPv3, TLS |
| Access Control List (ACL) |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log |
|
| Hot spare |
|
| S.M.A.R.T. support |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QuTS hero |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | h5.0.0 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) | CentOS 7.0,SuSE Linux 12.0,SuSE Linux 12.3,Ubuntu 14.04,Ubuntu 14.10,Ubuntu 15.04,Ubuntu 15.10,Ubuntu 16.04,Ubuntu 16.10,Ubuntu 17.10 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1,IBM AIX 7.2,Solaris 10,Solaris 11 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 1200 W |
| Number of power supply units | 2 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 467.59 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 446.2 mm |
| Depth The distance from the front to the back of something. | 713.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 21.3 kg |
| Package weight Weight of the packaged product. | 27.6 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 2 |
| Quick installation guide |
|
| Number of screws | 98 |
| Drive tray key included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Other features | |
| Fibre Channel Indicates if product has a Fibre channel support |
|
| SKU | 599921 |
| MPN | TDS-h2489FU-4314-128G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
