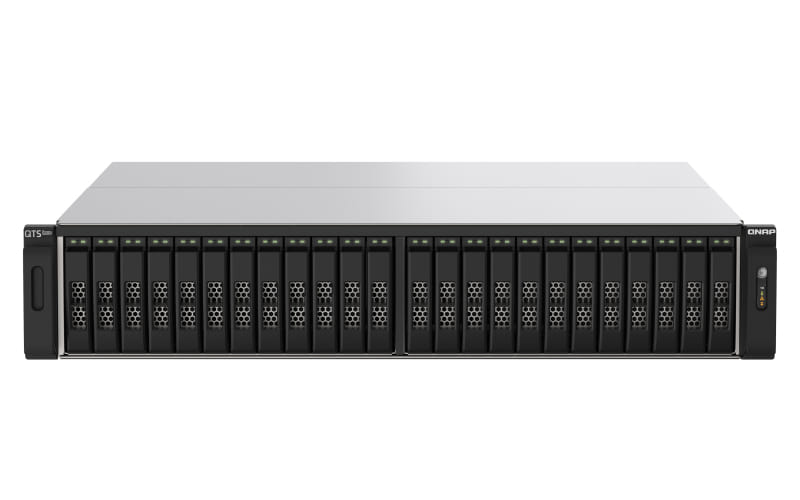

QNAP 24-Bay EPYC 7232P/7252 Octa-Core 64GB RDIMM Rackmount NAS
Item No:
600005
MPN:
TS-h2490FU-7232P-64G
$23,220.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
QNAP TS-h2490FU-7232P-64G 24 Bay 2.5-inch U.2 PCIe NVMe NAS AMD EPYC 7302P 16-core 3.0 GHz 64G DDR4 ECC Hot-swappable 2x25GbE 2x2.5GbE 2xUSB3.2 5 yrs
QNAP TS-h2490FU-7232P-64G
The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.
CPU AMD EPYC 7302P 16-core 3.0 GHz processor (up to 3.3 GHz)
CPU Architecture 64-bit x86
Wake on LAN (WOL)
Encryption Engine
System Memory 64 GB RDIMM DDR4 ECC
Maximum Memory 4 TB (16 x 256 GB)
Memory Slot 16 x Long-DIMM DDR4
Drive Bay 24 x 2.5-inch U.2 PCIe NVMe
Hot-swappable
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
25 Gigabit Ethernet Port 4 x 25GbE SFP28 SmartNIC port
PCIe Slot 5
USB 3.2 Gen 1 port 2
Form Factor Rackmount
Operating temperature 0 - 35 DegC (32 DegF - 95 DegF)
Power Supply Unit 1100W PSU(x2), 200-240Vac,
Max Wattage:1100W@200-240Vac 850W@100-240Vac
Power Consumption: Operating Mode, Typical 277.64 W
Fan 4 x 60mm, 12VDC
5 yrs warranty
The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.
CPU AMD EPYC 7302P 16-core 3.0 GHz processor (up to 3.3 GHz)
CPU Architecture 64-bit x86
Wake on LAN (WOL)
Encryption Engine
System Memory 64 GB RDIMM DDR4 ECC
Maximum Memory 4 TB (16 x 256 GB)
Memory Slot 16 x Long-DIMM DDR4
Drive Bay 24 x 2.5-inch U.2 PCIe NVMe
Hot-swappable
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
25 Gigabit Ethernet Port 4 x 25GbE SFP28 SmartNIC port
PCIe Slot 5
USB 3.2 Gen 1 port 2
Form Factor Rackmount
Operating temperature 0 - 35 DegC (32 DegF - 95 DegF)
Power Supply Unit 1100W PSU(x2), 200-240Vac,
Max Wattage:1100W@200-240Vac 850W@100-240Vac
Power Consumption: Operating Mode, Typical 277.64 W
Fan 4 x 60mm, 12VDC
5 yrs warranty
| Storage | |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10,50,60 |
| RAID rebuild |
|
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Supported file systems | FAT32,HFS+,NTFS,ZFS,ext3,ext4 |
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 24 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Bad block scan |
|
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | EPYC |
| Processor model The model number for the processor in a computer. | 7232P |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.1 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.2 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor threads | 16 |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 4000 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 16 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 64 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | RDIMM |
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000,2500,25000 Mbit/s |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Jumbo frames support |
|
| iSCSI support |
|
| Wake-on-LAN ready |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP |
| Link aggregation |
|
| Load balancing system |
|
| Dynamic DNS (DDNS) |
|
| WLAN adapter supported |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack (2U) |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 4 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 6 cm |
| LED indicators | HDD, LAN, Status |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Large Enterprise Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, iSCSI LUN |
| Buzzer |
|
| Multilingual support |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 53.5 dB |
| Snapshot |
|
| Web-based management Using a website/web application to manage something. |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES,HTTPS,SSH,SSL/TLS |
| Access Control List (ACL) |
|
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Built-in FTP server |
|
| Browser supported List of supported browsers for this product. | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| System log |
|
| Hot spare |
|
| S.M.A.R.T. support |
|
| Universal Plug and Play (UPnP) |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QuTS hero |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 4.5.0 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 1100 W |
| Number of power supply units | 2 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 277.64 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 200-240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 481 mm |
| Depth The distance from the front to the back of something. | 510.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.2 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 96 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 600005 |
| MPN | TS-h2490FU-7232P-64G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
