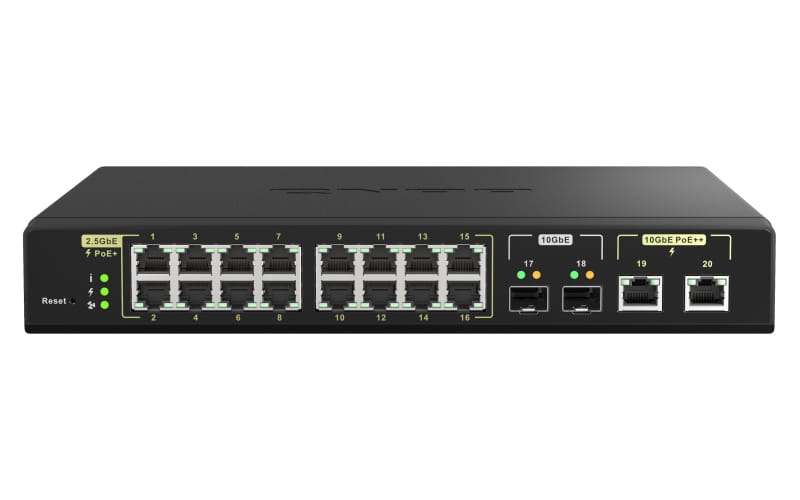

QNAP 16-Port PoE+ 2-Port PoE++ 2-Port SFP+ Managed Switch

The QNAP QSW M2116P 2T2S is a L2 PoE Managed Switch with sixteen 30 watt 2.5GbE PoE ports, two 90 watt 10GbE PoE ports. Offering a total power budget of 380 watts and two 10GbE SFP ports, the QSW M2116P 2T2S not only enables a high speed and high power PoE network infrastructure for Wi Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW M2116P 2T2S offers SMBs a cost optimized and centrally managed LAN deployment solution.

10GbE 90 watt PoE Switch for Wi Fi 6 APs & Routers
The QSW M2116P 2T2S breaks through bandwidth limitations cabled and wireless networks to enhance your storage and access experience. With two 10GbE 90 watt and sixteen 2.5GbE 30 watt PoE ports, the QSW M2116P 2T2S supplies up to a total power budget of 280 watts to meet the demands of high power Wi Fi 6 APs. With two 10GbE SFP ports for backbone network uplinking capability, the QSW M2116P 2T2S provides an ultra high speed Wi Fi 6 wireless network infrastructure solution for small to medium scale businesses, hotels, and stores

High PoE Capability " up to 90W
The QSW M2116P 2T2S is compliant with the IEEE 802.3bt PoE and IEEE 802.3at PoE standards, offering 2 port 90 watt and 16 port 30 watt PoE capabilities. The QSW M2116P 2T2S can supply a total power budget of 280 watts to meet the demands of many high power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Faster PoE and Backbone network transmission
QSW M2116P 2T2S has two 10GbE ports and sixteen 2.5GbE PoE ports for connecting various high speed powered devices. Two in built 10GbE SFP ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches, improving LAN and WAN transmission efficiency. The switching capacity of QSW M2116P 2T2S is 160Gbps, guaranteeing the full potential of each port.

Intelligent PoE Functions for Efficient, Centralized PD Management
The QSW M2116P 2T2S supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain real time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy saving PoE network.

Comprehensive Layer 2 Management Features
The QSW M2116P 2T2S provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QSW M2116P 2T2S also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake on LAN, which are suitable for simple networking environments and easy deployment.

QSS: User Friendly Switch Management System
The QSW M2116P 2T2S uses the QNAP Switch System (QSS), a user friendly web interface networking management system to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy for administrators.

Fan Failure LED for Efficient IT Maintenance
Designed for server rooms and computer rooms, the QSW M2116P 2T2S features a standard 1U rackmount and a Fan failure LED to help IT administrators with convenient installation and efficient maintenance.
