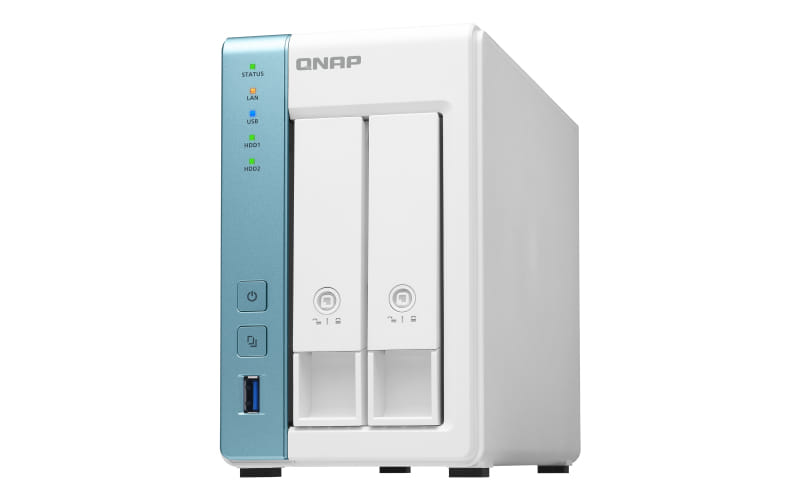

QNAP TS-231K, NAS, Tower, Annapurna Labs, Alpine AL-214, White
Powered by quad-core 1.7 GHz processor, the TS-231K provides 2 drive bays storage space to securely store your important files and data, while allowing you to easily share files with family and friends. Featuring a compact pure white minimalist design, the TS-231K can easily integrate with any home d
Storage
Supported storage drive interfaces
Serial ATA II,Serial ATA III
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
2.5,3.5"
RAID support
The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0,1,JBOD
Hot-swap drive bays
The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems
FAT32,HFS+,NTFS,ext3,ext4
Storage drives installed
Storage drives are built into the system.
Installed storage drive type
Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types
The type of storage drives the device is compatible with.
HDD & SSD
Number of storage drives supported
How many storage drives can be fit into the product at once.
2
Processor
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Annapurna Labs
Processor model
The model number for the processor in a computer.
Alpine AL-214
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
1.7 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
4
Memory
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR3
Maximum RAM supported
1 GB
Internal memory
A computer's memory which is directly accessible to the CPU.
1 GB
Flash memory
512 MB
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
DHCP client
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server
A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Jumbo frames support
Wake-on-LAN ready
WLAN adapter supported
Ports & interfaces
USB port
The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
Tower
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Product colour
The colour e.g. red, blue, green, black, white.
White
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
7 cm
LED indicators
HDD,LAN,Power,Status,USB
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Performance
Type
Characteristics of the device.
NAS
Device class
The category to which this device belongs.
Home & Home Office
Backup function
The function if the main power source fails.
Backup features
Cloud,USB drive,iSCSI LUN
Buzzer
Multilingual support
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
19.2 dB
Snapshot
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS,TLS
Access Control List (ACL)
Web-based management
Using a website/web application to manage something.
Reset button
On/off switch
The button which is pressed to switch the device on or off.
Built-in FTP server
Browser supported
List of supported browsers for this product.
Microsoft Internet Exploer 10, Mozilla Firefox, Google Chrome, Apple Safari 7+
System log
Hot spare
S.M.A.R.T. support
Share folder
CIFS/SMB, FTP, WebDAV
Universal Plug and Play (UPnP)
USB copy function
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
QNAP Turbo System
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10,Windows 7,Windows 8
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Other operating systems supported
IBM AIX 7.1,IBM AIX 7.2,Solaris 10
Power
Power supply location
Where the power supply is positioned.
External
Number of power supply units
1
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
15.6 W
Power consumption (sleep)
8.46 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
Fan voltage
12 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
102 mm
Depth
The distance from the front to the back of something.
219 mm
Height
The measurement of the product from head to foot or from base to top.
161 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.35 kg
Package weight
Weight of the packaged product.
2.39 kg
Packaging content
External power adapter
Cables included
AC,LAN (RJ-45)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
