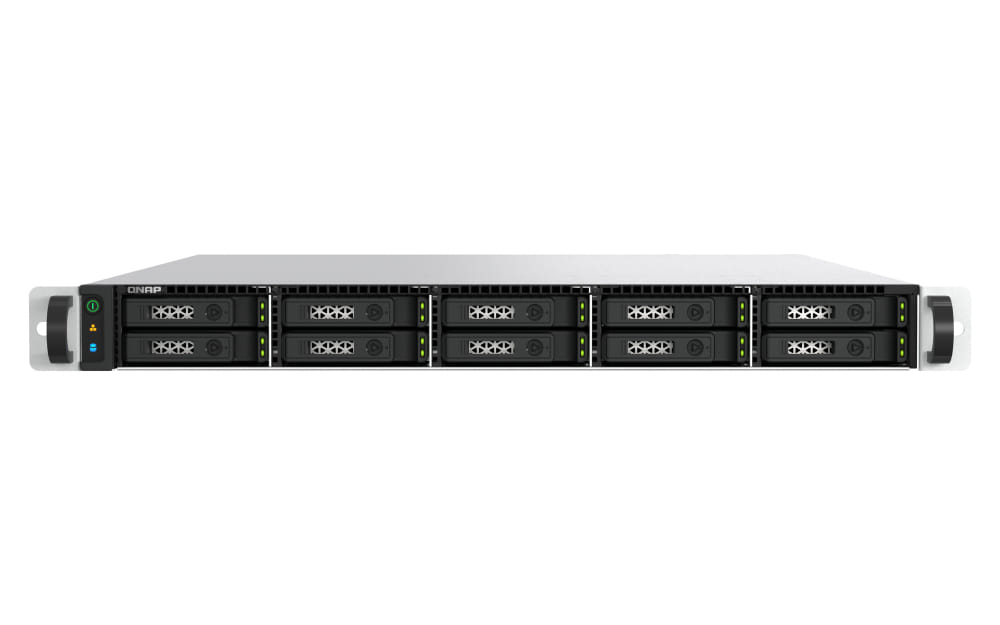

QNAP 1U 10-bay 2.5" SATA All Flash NAS

Storage
Supported storage drive interfaces	Serial ATA II
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,3.5"
Total installed system drives capacity	5 GB
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration
Online RAID expansion
RAID rebuild
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed Storage drives are built into the system.
Total installed storage capacity	0 TB
Number of storage drives supported How many storage drives can be fit into the product at once.	10
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Auto-rebuild
Bad block scan
Disk roaming Disk roaming is moving the physical disks from one cable connection or backplane slot to another on the same controller. The controller automatically recognizes the relocated physical disks and logically places them in the virtual disks that are part of the disk group. You can perform disk roaming only when the system is turned off.

Processor
Processor manufacturer The manufacturer that produced the processor.	AMD
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	AMD Ryzen™ 7
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5.3 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	8
Processor threads	16
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	AMD Radeon Graphics

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	2500,10000 Mbit/s
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Jumbo frames support
Wake-on-LAN ready
Dynamic DNS (DDNS)

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Rack (1U)
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
LED indicators

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Small & Medium Business
Backup function The function if the main power source fails.
Buzzer

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	QNAP QTS
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	5.2.7

Power
Power supply location Where the power supply is positioned.	Built-in
Power supply unit (PSU) capacity	3520 W
Number of power supply units	2
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V

Weight & dimensions
Width The measurement or extent of something from side to side.	430 mm
Depth The distance from the front to the back of something.	580 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	9.43 kg
Package width The distance from one side of the packaging to the other.	561 mm
Package depth The distance from the front to the back of the packaging.	763 mm
Package height The distance from the top to the bottom of the packaging.	170 mm
Package weight Weight of the packaged product.	12.4 kg

Packaging content
Package type The type of product package e.g. box.	Box

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C

Other features
Warranty period	5 year(s)
