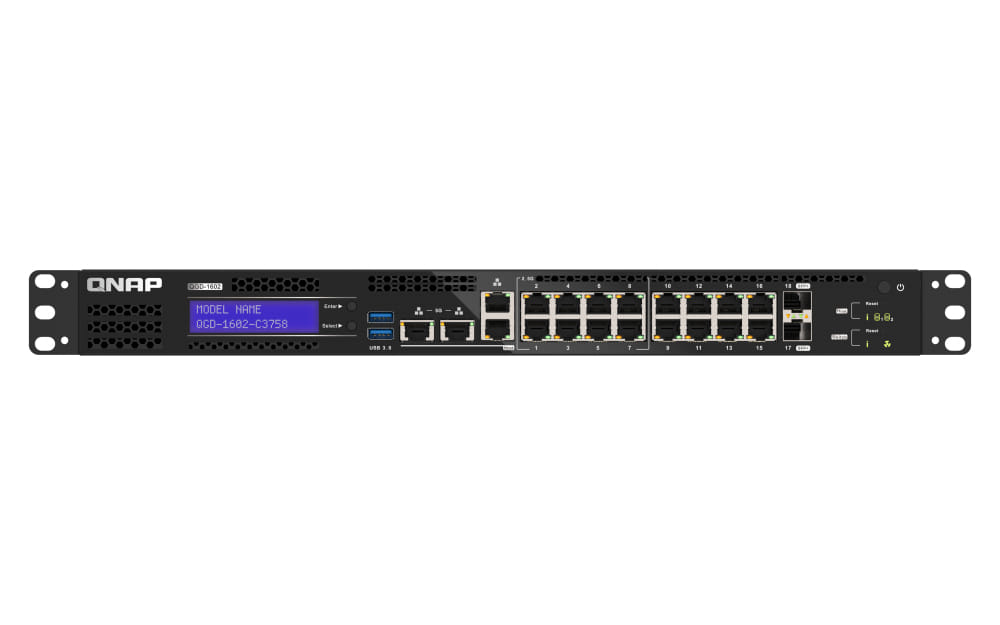

QNAP QGD-1602-C3758-16G, Managed, L2, 2.5G Ethernet (100/1000/2500), Full duplex, Rack mounting
Upgraded performance for smoother virtualization
The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.
Sturdy hardware with Intel QAT for optimized performance
The QGD-1602 uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602 also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.
The First Switch Series with VM Support
The Guardian supports QNAP
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Traffic classification |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Port mirroring |
|
| Port trunking |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Rate limiting |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 1000Base-X |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 96 Gbit/s |
| Throughput | 48 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Loop protection |
|
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Reset button |
|
| LED indicators | Activity, Alarm, Link, PoE, Speed |
| Performance | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor model The model number for the processor in a computer. | Atom C3758 |
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 2200 MHz |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 16000 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power consumption (max) The maximum amount of power used by the device. | 100 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Other features | |
| Expansion slots List of I/O expansion card slots; including quantity of each | 2x PCIe Gen3 (x4 slot, x2 speed) |
| I/O ports An interface on a device to which you can connect another device. | 2x USB 3.2 Gen 1, 2 x 5GbE, 2 x 1GbE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 435.2 mm |
| Depth The distance from the front to the back of something. | 327.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.37 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Rack mount kit |
|
| Packaging data | |
| Package weight Weight of the packaged product. | 5.52 kg |
| Certificates | |
| Certification | FCC, VCCI, BSMI RCM, CCC |
| SKU | 812056 |
| MPN | QGD-1602-C3758-16G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Product Use | General |
