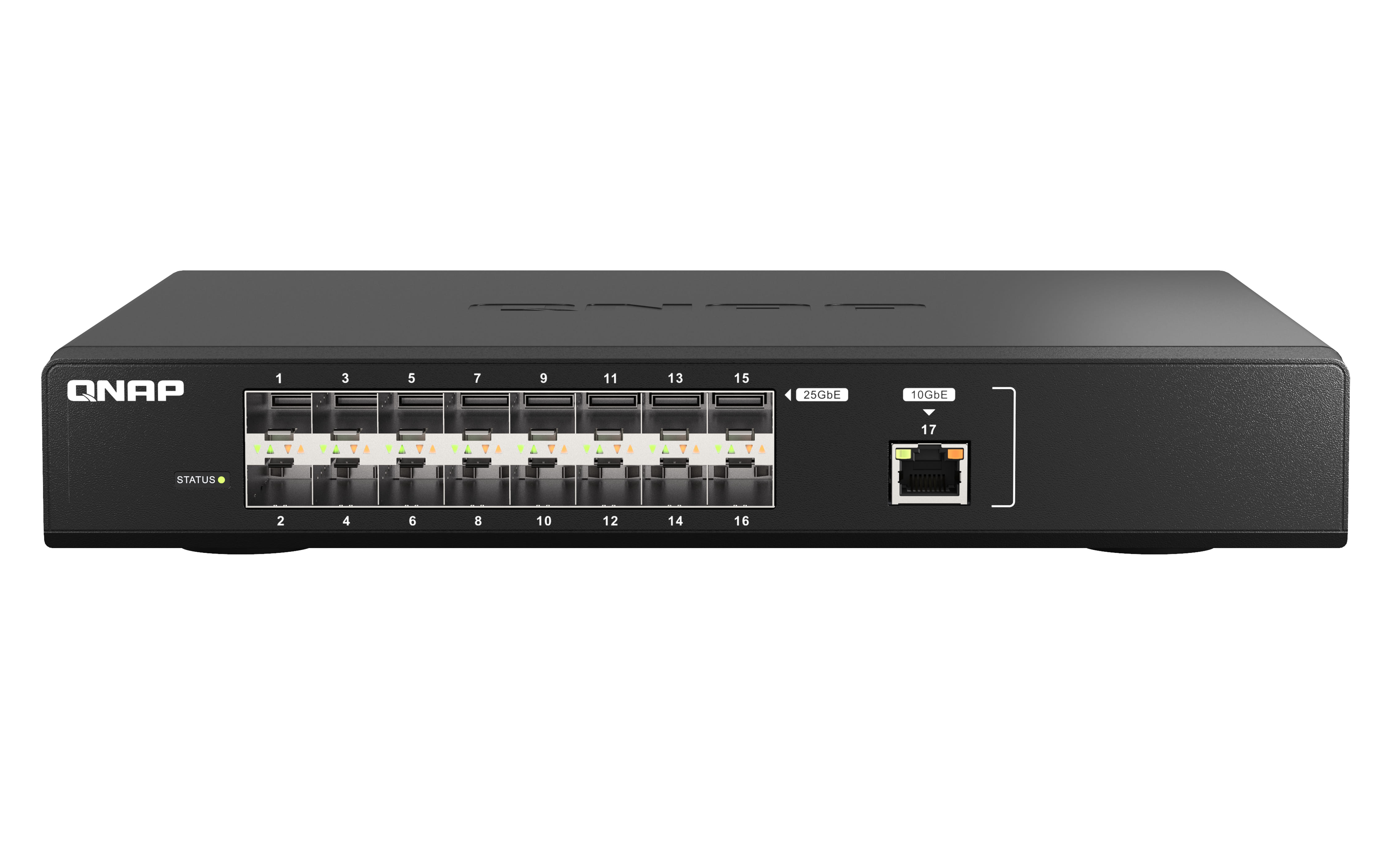

QNAP QSW-M5216-1T, Managed, L2, Rack mounting
The QSW-M5216-1T is a 16-Port 25GbE SFP28 fiber Managed Switch with one 10GbE NBASE-T port. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M5216-1T provides an entry-level network management solution that is usable even by non-IT professionals. Offering ultra-high 25GbE speeds and a backbone switching capacity of 820Gbps, the QSW-M5216-1T can serve as the core switch uplinking to 25G Servers and NAS in server rooms or connecting to 25G/10G switches to accelerate high-speed storage, video editing, virtualization, and AI applications. The QSW-M5216-1T provides flexible network interfaces for high compatibility at an affordable price, enabling small businesses to quickly upgrade to an ultra-high-speed backbone network by integrating to existing network infrastructure.
Upgrade to ultra-high-speed 25GbE with ease!
While 10GbE is a solid base for high-speed network transmission, the ultra-high-speed 25GbE provides comparative cost advantages and compatibility in SMB server rooms to satisfy data computing applications.
High switching capacity of 820Gbps for backbone networks
The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and offers backbone switching capacity of 820Gbps, guaranteeing the full potential of each port. The QSW-M5216-1T can serve as the core switch uplinking to 25G/100G Servers and NAS in server rooms or connecting to 25G/10G edge fiber switches.
Flexible deployment with multiple 25GbE and 10GbE ports
Along with sixteen 25GbE SFP28 fiber ports, the QSW-M5216-1T is has one 10GBASE-T port for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP; and 10GbE RJ45 is compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).
Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing
By using QSFP28 to (4) SFP28 cables, you can easily connect the four 25GbE ports on the QSW-M5216-1T to a NAS with a QXG-100G2SF-E810 dual-port 100GbE network expansion card. You can also use two QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Set a group of QSFP28 to (4) SFP28 connection as the main route and the other as a backup route.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-M5216-1T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-M5216-1T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.
Near-silent and energy saving
With its smart cooling system, the QSW-M5216-1T ensures high-speed network performance without distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting and adjusting for link speeds and activities, the QSW-M5216-1T provides energy savings of up to 50% to minimize operational costs.
Upgrade to ultra-high-speed 25GbE with ease!
While 10GbE is a solid base for high-speed network transmission, the ultra-high-speed 25GbE provides comparative cost advantages and compatibility in SMB server rooms to satisfy data computing applications.
High switching capacity of 820Gbps for backbone networks
The QSW-M5216-1T has sixteen 25GbE SFP28 fiber ports and offers backbone switching capacity of 820Gbps, guaranteeing the full potential of each port. The QSW-M5216-1T can serve as the core switch uplinking to 25G/100G Servers and NAS in server rooms or connecting to 25G/10G edge fiber switches.
Flexible deployment with multiple 25GbE and 10GbE ports
Along with sixteen 25GbE SFP28 fiber ports, the QSW-M5216-1T is has one 10GBASE-T port for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP; and 10GbE RJ45 is compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).
Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing
By using QSFP28 to (4) SFP28 cables, you can easily connect the four 25GbE ports on the QSW-M5216-1T to a NAS with a QXG-100G2SF-E810 dual-port 100GbE network expansion card. You can also use two QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Set a group of QSFP28 to (4) SFP28 connection as the main route and the other as a backup route.
QSS: Intuitive Network Management Software
The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.
QSS: Human-centered settings guide
QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.
Optimize Network Performance with bandwidth and packet control
The QSW-M5216-1T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-M5216-1T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.
Near-silent and energy saving
With its smart cooling system, the QSW-M5216-1T ensures high-speed network performance without distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting and adjusting for link speeds and activities, the QSW-M5216-1T provides energy savings of up to 50% to minimize operational costs.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 16 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| Console port | RS-232 |
| SFP28 ports quantity | 16 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Auto-negotiation |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 820 Gbit/s |
| Throughput | 410 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators | Activity, Link, Power, Speed, Status |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | CLASS A |
| Certification | CE, FCC, VCCI, BSMI |
| Performance | |
| Firmware upgradeable |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 80 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 285 mm |
| Depth The distance from the front to the back of something. | 237.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.15 kg |
| Packaging data | |
| Cables included | AC |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Rack mount kit |
|
| Package weight Weight of the packaged product. | 2.85 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 751352 |
| MPN | QSW-M5216-1T |
| Brand | QNAP |
