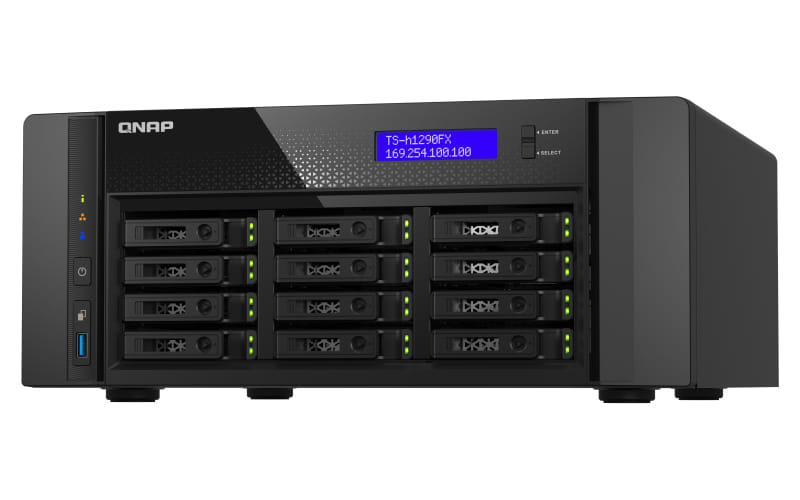

QNAP 12-Bay EPYC 7302P 16-Core 256GB RDIMM Tower NAS

Storage
Supported storage drive interfaces	Serial ATA III, U.2
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5"
RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Storage drives installed Storage drives are built into the system.
Number of storage drives supported How many storage drives can be fit into the product at once.	12
Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD

Processor
Processor manufacturer The manufacturer that produced the processor.	AMD
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	EPYC
Processor model The model number for the processor in a computer.	7302P
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	3 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	3.3 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	16
Processor threads	32
L3 cache	128 MB

Memory
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Maximum RAM supported	1 TB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	8
Internal memory A computer's memory which is directly accessible to the CPU.	256 GB
Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM.	RDIMM
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Flash memory	5000 MB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,2500,25000 Mbit/s
Jumbo frames support
Wake-on-LAN ready

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity The number of sockets (ports) for fibers (cables).	2
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP28
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
PCI Express x16 (Gen 4.x) slots	3
PCI Express x8 (Gen 4.x) slots	1
Concurrent connections	10000

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Tower
Cooling type The method used to cool the device or to cool the air around the device.	Active
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	2 fan(s)
Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.	9.2 cm
LED indicators	LAN, Power, SSD, Status, USB
Built-in display A display which is part of the product, so you do not need to attach another display.
Display type Type of display (screen) e.g. LCD.	LCD
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington

Performance
Type Characteristics of the device.	NAS
Device class The category to which this device belongs.	Small & Medium Business
Backup function The function if the main power source fails.
Backup features	Cloud, USB drive
Buzzer
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	3.1 dB
Snapshot
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	AES
Reset button
On/off switch The button which is pressed to switch the device on or off.
USB copy function

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	QuTS hero

Power
Power supply location Where the power supply is positioned.	Built-in
Power supply unit (PSU) capacity	750 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
Fan voltage	12 V

Weight & dimensions
Width The measurement or extent of something from side to side.	368 mm
Depth The distance from the front to the back of something.	362 mm
Height The measurement of the product from head to foot or from base to top.	150 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	8.99 kg

Packaging content
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Quick installation guide
Number of screws	48
Drive tray key included

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data
Harmonized System (HS) code	84714100

Other features
Fibre Channel Indicates if product has a Fibre channel support
