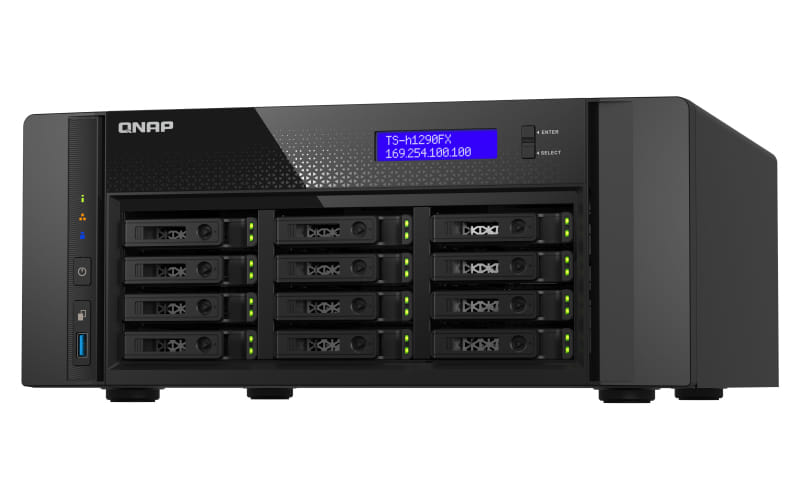

QNAP 12-Bay EPYC 7302P 16-Core 128GB RDIMM Tower NAS
Item No:
599970
MPN:
TS-h1290FX-7302P-128G
$30,554.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
QNAP TS-h1290FX-7302P-128G 12 Bay 128G DDR4 AMD EPYC 7232P 8-core Hot-swappable SSD Cache 2x2.5GbE 2x25GbE WOL 4xPCle slot 3xUSB3.2 Tower
Supporting U.2 NVMe PCIe Gen 4 / SATA SSD storage, the TS-h1290FX is a cost-efficient and powerful all-flash NAS. With a sleek design and near-silent cooling, the TS-h1290FX seamlessly integrates into cozy studio/office surroundings. Equipped with an AMD EPYC 16 core 7302P/8 core 7232P processor and built-in 25GbE connectivity, the TS-h1290FX can tackle the heaviest of workloads and enables smooth file transfer, display, and real-time editing of 4K/8K media. The TS-h1290FX also features a ZFS-based operating system to ensure data integrity while supporting inline data deduplication and compression for optimal storage utilization. Price-competitive, high-performance, and easily scalable "the TS-h1290FX is here to streamline your backup, collaboration, and video editing/storage workflows.
CPU AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 128 GB RDIMM DDR4 ECC (8 x 16 GB)
Maximum Memory 1 TB (8 x 128 GB)
Memory Slot 8 x RDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 2.5-inch
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot 4
USB 3.2 Gen 1 port 3
Form Factor Tower
LED Indicators Power/Status, LAN, USB, SSD1-12
CPU AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 128 GB RDIMM DDR4 ECC (8 x 16 GB)
Maximum Memory 1 TB (8 x 128 GB)
Memory Slot 8 x RDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 2.5-inch
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot 4
USB 3.2 Gen 1 port 3
Form Factor Tower
LED Indicators Power/Status, LAN, USB, SSD1-12
| Storage | |
| Supported storage drive interfaces | Serial ATA III, U.2 |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5" |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
 |
| Hot-swap drive bays The places where drives (hot-swap drives) can be inserted to or removed from the computer. |
|
| Storage drives installed Storage drives are built into the system. |
 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). |
|
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | EPYC |
| Processor model The model number for the processor in a computer. | 7302P |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.3 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 16 |
| Processor threads | 32 |
| L3 cache | 128 MB |
| Memory | |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Maximum RAM supported | 1000 GB |
| Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. | 8 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 128 GB |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | RDIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500,25000 Mbit/s |
| Jumbo frames support |
|
| Wake-on-LAN ready |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP28 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Concurrent connections | 10000 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9.2 cm |
| LED indicators | LAN, Power, SSD, Status, USB |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Performance | |
| Type Characteristics of the device. | NAS |
| Device class The category to which this device belongs. | Small & Medium Business |
| Backup function The function if the main power source fails. |
|
| Backup features | Cloud, USB drive |
| Buzzer |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 3.1 dB |
| Snapshot |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Reset button |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| USB copy function |
|
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | QuTS hero |
| Power | |
| Power supply location Where the power supply is positioned. | Built-in |
| Power supply unit (PSU) capacity | 750 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Fan voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 368 mm |
| Depth The distance from the front to the back of something. | 362 mm |
| Height The measurement of the product from head to foot or from base to top. | 150 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.99 kg |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Quick installation guide |
|
| Number of screws | 48 |
| Drive tray key included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Fibre Channel Indicates if product has a Fibre channel support |
|
| SKU | 599970 |
| MPN | TS-h1290FX-7302P-128G |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
