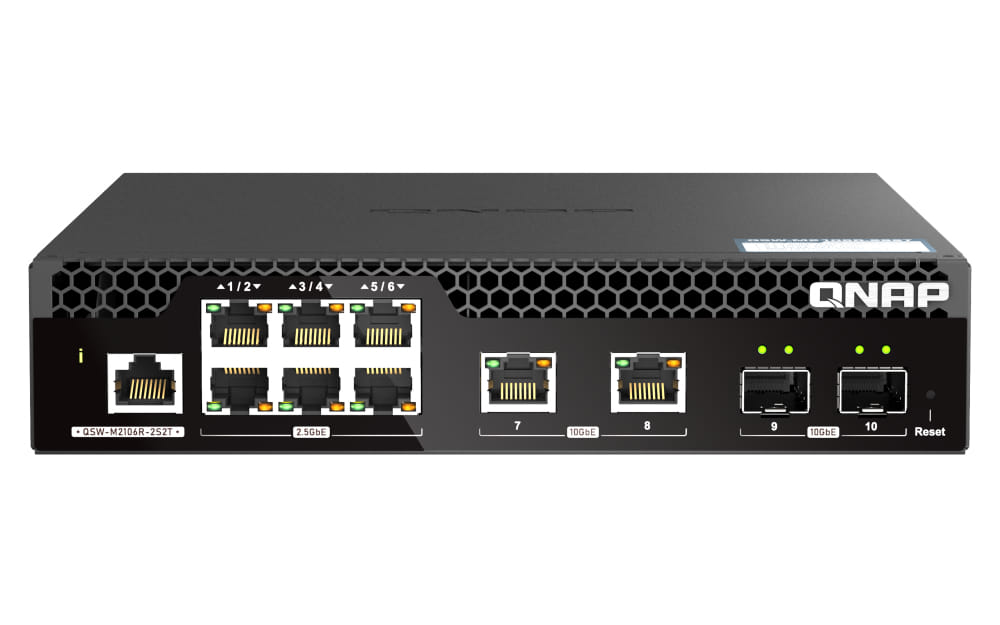

QNAP QSW M2106R 2S2T, Managed, L2, 10G Ethernet (100/1000/10000), Rack mounting, 1U
The QSW M2106R 2S2T is a Layer 2 Web Managed Switch with two 10GbE SFP fiber ports, two 10GbE RJ45 ports and six 2.5GbE RJ45 ports. Supporting Layer 2 switching and network management via a user friendly web user interface, the QSW M2106R 2S2T offers flexible deployment in hybrid high speed network environments and provides an entry level network management solution. With a half width design, two QSW M2106R 2S2T can be installed in a 1U rack space for space saving.
10GbE connectivity
Includes two 10GbE SFP fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high speed networks.
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
User friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Half width design, two models in 1U
With a half width rackmount design, a QSW M2106R 2S2T can be installed in a 1U rack space with another half width rackmount switch (such as QSW M2108R 2C) for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 10G SFP fiber and Gigabit ports
The QSW M2106R 2S2T provides two 10GbE SFP ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high speed networks. With SFP interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP devices. You can also use RJ45 ports to connect 10GBASE T/NBASE T devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW M2106R 2S2T is 110Gbps, guaranteeing the full potential of each port.
10GbE connectivity
Includes two 10GbE SFP fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high speed networks.
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
User friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Half width design, two models in 1U
With a half width rackmount design, a QSW M2106R 2S2T can be installed in a 1U rack space with another half width rackmount switch (such as QSW M2108R 2C) for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 10G SFP fiber and Gigabit ports
The QSW M2106R 2S2T provides two 10GbE SFP ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high speed networks. With SFP interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP devices. You can also use RJ45 ports to connect 10GBASE T/NBASE T devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW M2106R 2S2T is 110Gbps, guaranteeing the full potential of each port.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 2 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 6 |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 110 Gbit/s |
| Throughput | 55 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | CLASS B |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 40 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 207 mm |
| Depth The distance from the front to the back of something. | 248.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.53 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 2.3 kg |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| SKU | 706640 |
| MPN | QSW-M2106R-2S2T |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.qnap.com/ |
