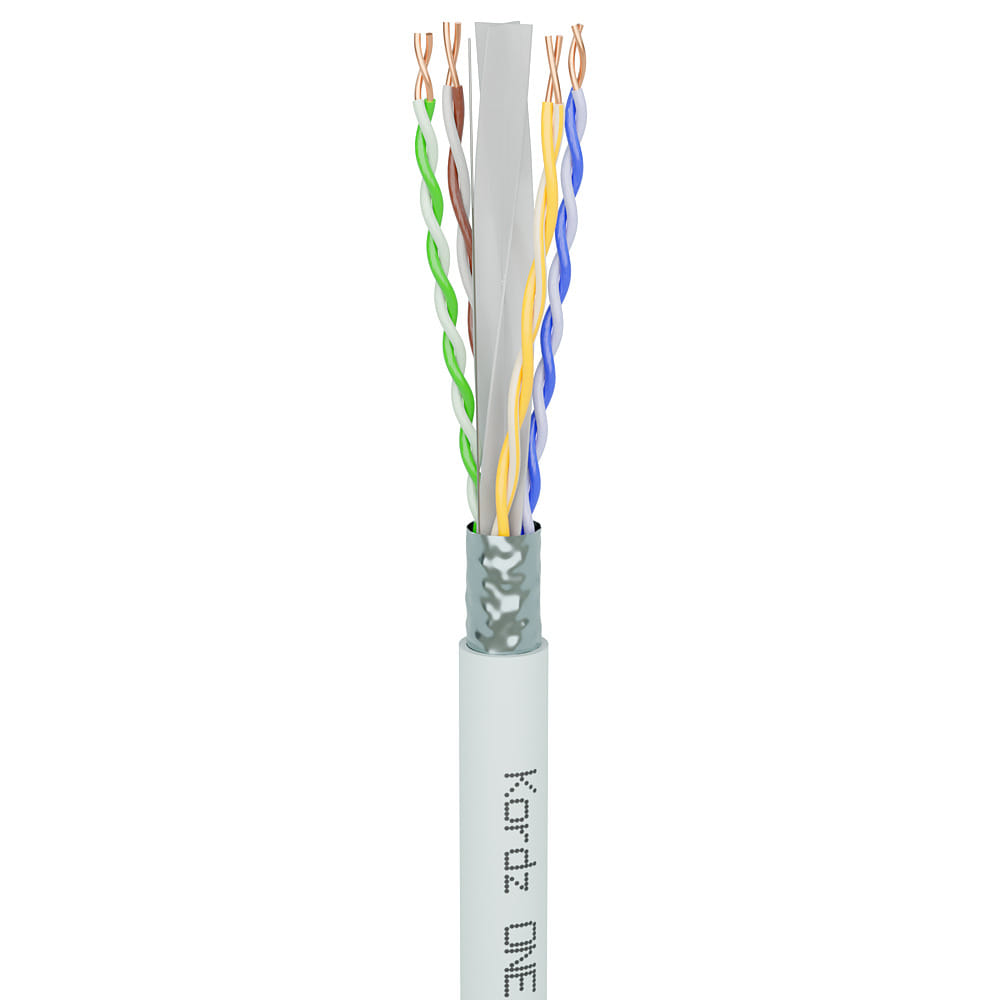

Professional CAT 6A F/UTP Bulk Cable white- 152m Pro Box: Four Twisted Pairs 23 AWG OFC Conductors; Exceeds 4K bandwidth requirements; Certified to exceed 550Mhz, HDBaseT recommended; PoE++ supported; Supplied in durable Rapid-EZ-Reel packaging
Kordz ONE Series CAT 6A F/UTP premium cable is engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT 6A F/UTP cable is tested and approved to exceed 550Mhz, ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards. All cables are supported by the Kordz Lifetime Warranty.
Features:
- Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE & PoE+.
- F/UTP Ethernet CAT6a.
- Four Twisted Pairs 23 AWG Solid Copper Conductors.
- PVC Separator Reduces Crosstalk Between Pairs.
- Mylar laminated aluminium tape shielding with a 26AWG drain wire.
- Suitable for IDC Terminations.
- Supplied in the durable Rapid-EZ-Reel packaging – 152.5m (500ft).
- Metre Marked.
- Exceeds ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards.
- Available in LSZH – IEC60332-3-25 and UL 444 CM fire rated versions.
- CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014+A1:2016).
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable length How long the cable is. | 152 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6a |
| Cable shielding The protective layer for the cable, typically made of plastic. | F/UTP (FTP) |
| Connector 1 This is the first connector in the device. |
 |
| Connector 2 This is the second connector in the device. |
|
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. |
|
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. |
|
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor type | Solid |
| Conductor material | Oxygen-Free Copper (OFC) |
| Cable type Type of cable e.g. electicity cable, optical cable. | Cable on reel |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| AWG wire size | 23 |
| Frequency | 550 MHz |
| Bend radius (min) | 2.96 cm |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Fire-resistant |
|
| Certification | ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Outer diameter | 7.4 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 330 mm |
| Package depth The distance from the front to the back of the packaging. | 265 mm |
| Package height The distance from the top to the bottom of the packaging. | 340 mm |
| Package weight Weight of the packaged product. | 9.8 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| SKU | 658581 |
| MPN | K13602-152M-WH |
| Brand | Kordz |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Contact | https://www.kordz.com/ |
