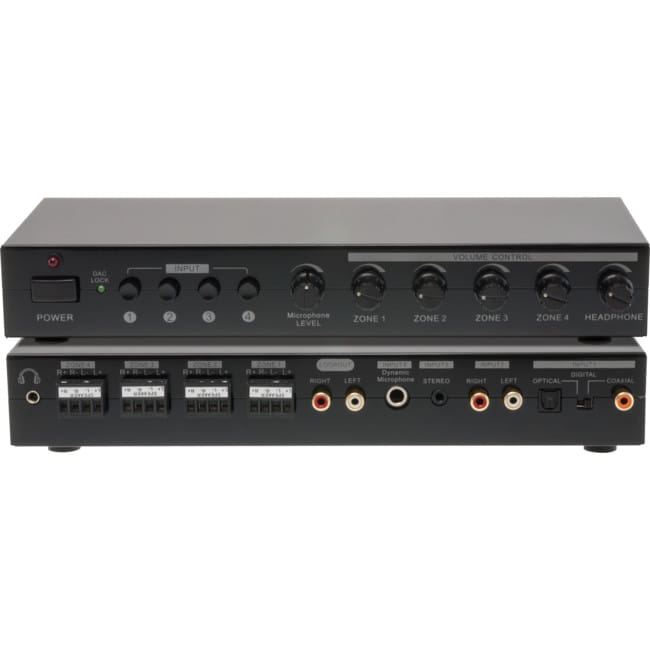

Pro2 4 Zone Audio Power Amplifier With 4 Source

With a diverse range of inputs including digital optical or coaxial and dynamic microphone inputs and the ability to adjust each zones volume independently the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit increasing the number of zones further

• Four-in and five-outIN 1x Digital Optical / Coaxial selectable 1x RCA Stereo 1x 3.5mm Stereo 1x Dynamic Microphone inputOUT 4 Speaker output 1 Headphone output
• Built-In audio digital to analogue converter DAC Audio DAC Lock indicator
• Independent microphone level control
• Individual speaker volume control
• Provides line loop-out for expanding to more zones
• Large detachable terminal block supplied for quick and easy installation Screw terminals handle wire sizes from 24 to 12 gauge

• Amplifier Type Stereo Class-D
• Output power 15WRMS per channel RL4 ohm
• THDN 0.06 RL8 ohm f 1 kHz
• Minimum Load Resistance 4 ohm
• Includes Speaker Protection circuit.

• Output power105mWRMS per channel
• THDN 0.05 RL16 ohm f 1 kHz
• Minimum Load Resistance 16 ohm

• Power Consumed 9A Max
• Power Source DC 12 Volts
• Size LxWxH 285mm x 128mm x 43mm
• Net Weight Unit only 0.8 Kg
