Radiation patterns of the Poynting XPOL-2-5G MIMO LTE Antenna are exceptionally well-controlled, further adding to the performance of the antenna.
- Comes with 10m HDF-195 coaxial cable SMA(m)
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 5-10 business days
Store Availability
- 6-11 business days at Bankstown Store
- 6-11 business days at Castle Hill Store
- 5-10 business days at Northmead Store
Shipping Estimate

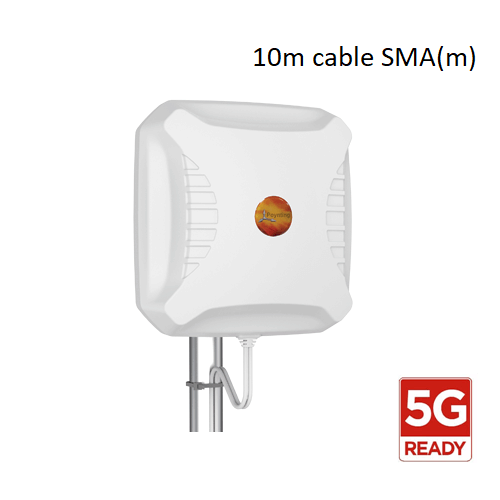

The XPOL-2-5G antenna by Poynting is a high-performance, cross-polarised, unidirectional LTE/5G antenna designed for 2x2 MIMO applications. It covers a wide frequency range from 617 to 4200 MHz and offers a gain of 11 dBi. The antenna is built with advanced metamaterial technology, ensuring exceptional performance across 4G and 5G bands. It's compatible with 2G, 3G, 4G, LTE, and 5G networks, making it versatile for various applications. The XPOL-2-5G features a robust IP65-rated enclosure, making it resistant to weather, dust, and vandalism. It is suitable for commercial, industrial, farming, and urban environments.
| Performance | |
| Gain | 10 / 11 dBi |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 11 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Voltage Standing Wave Ratio (VSWR) | 1.5.1 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Survival wind speed | 250 km/h |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Wall/Pole |
| Housing material What the casing of the product is made of. | Acrylonitrile styrene acrylate (ASA) |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Technical details | |
| Sustainability compliance |
 |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 98% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 265 mm |
| Depth The distance from the front to the back of something. | 265 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Packaging content | |
| Mounting kit |
|
| SKU | 641893 |
| MPN | A-XPOL-0002-V3-03 |
| Brand | Poynting |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://poynting.tech/ |
