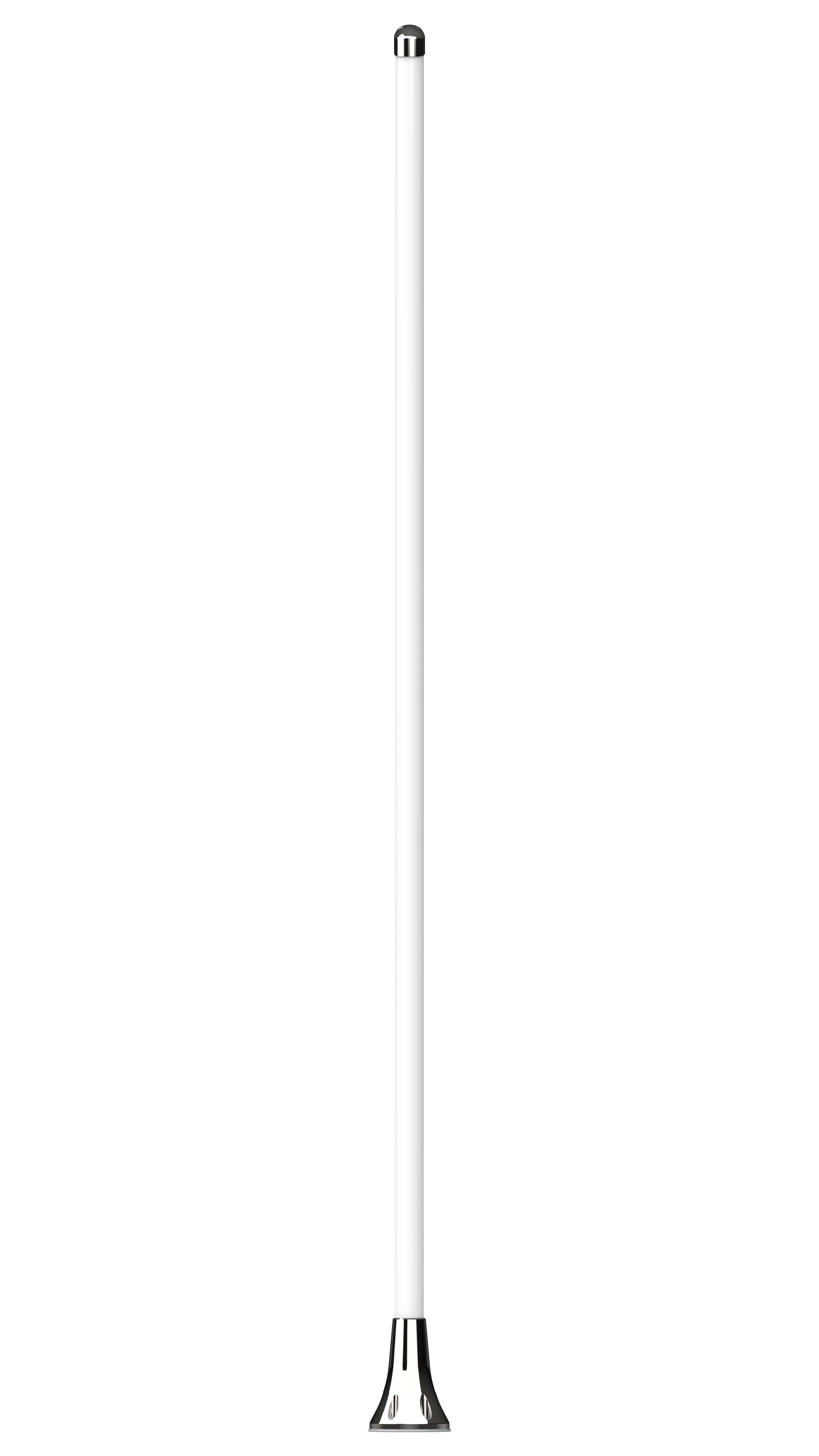

Poynting OMNI-914, 8 dBi, 0.617 - 0.96 / 1.427 - 1.517 / 1.71 - 2.7 / 3.4 - 4.2 GHz, 50 Ohms, Omni-directional antenna, N-type, Female
The OMNI-914 is a high-gain, ultra-wideband antenna designed to provide exceptional performance across all contemporary LTE/5G frequency bands. Covering a wide range from 617 to 4200 MHz, this antenna ensures reliable connectivity with balanced gain across all frequencies. Its robust design and superior omni-directional pattern control make it ideal for demanding marine and coastal applications.
Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True Omni-Directional 4x4 MIMO: Features four high-gain omni-directional antennas with vertically separated radiating elements within a single radome.
Superior Pattern Control: Ensures consistent performance across all frequency bands, maximising signal reception and connectivity.
Marine-Grade Durability: Fully saltwater protected with a durable fiberglass radome, designed for highly corrosive environments.
IP68 Protection Rating: Provides complete resistance against dust and water ingress, making it ideal for severe storm conditions at sea.
Future-Proof Design: Supports next-generation LTE and 5G networks, ensuring long-term connectivity solutions.
The OMNI-914 guarantees reliable signal reception worldwide, making it an ideal choice for marine, coastal, and inland applications requiring robust and future-proof LTE/5G connectivity.
Ideal Applications
- Marine applications: Super Yachts / Boats / Ferries
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution
Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True Omni-Directional 4x4 MIMO: Features four high-gain omni-directional antennas with vertically separated radiating elements within a single radome.
Superior Pattern Control: Ensures consistent performance across all frequency bands, maximising signal reception and connectivity.
Marine-Grade Durability: Fully saltwater protected with a durable fiberglass radome, designed for highly corrosive environments.
IP68 Protection Rating: Provides complete resistance against dust and water ingress, making it ideal for severe storm conditions at sea.
Future-Proof Design: Supports next-generation LTE and 5G networks, ensuring long-term connectivity solutions.
The OMNI-914 guarantees reliable signal reception worldwide, making it an ideal choice for marine, coastal, and inland applications requiring robust and future-proof LTE/5G connectivity.
Ideal Applications
- Marine applications: Super Yachts / Boats / Ferries
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 0.617 - 0.96 / 1.427 - 1.517 / 1.71 - 2.7 / 3.4 - 4.2 GHz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 8 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | N-type |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Female |
| Polarization | Linear, vertical |
| Voltage Standing Wave Ratio (VSWR) | ≤2.5:1 |
| Product colour The colour e.g. red, blue, green, black, white. | Stainless steel, White |
| Housing material What the casing of the product is made of. | Fibreglass, Stainless steel |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Saltwater resistant, UV resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP68 |
| Ultraviolet (UV) resistant |
 |
| Survival wind speed | 190 km/h |
| Cable length How long the cable is. | 2 m |
| Cable type Type of cable e.g. electicity cable, optical cable. | Twin HDF 195 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Universal |
| Purpose What the product is used for. | Indoor & outdoor |
| Certificates | |
| Certification | MIL-STD 810G/ASTM B117 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 2454 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.5 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.86 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2550 mm |
| Package depth The distance from the front to the back of the packaging. | 180 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 9.42 kg |
| Mobile network | |
| 4G standard | LTE |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting brackets included |
|
| SKU | 769769 |
| MPN | ANT-PY-00072 |
| Brand | Poynting |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://poynting.tech/ |
