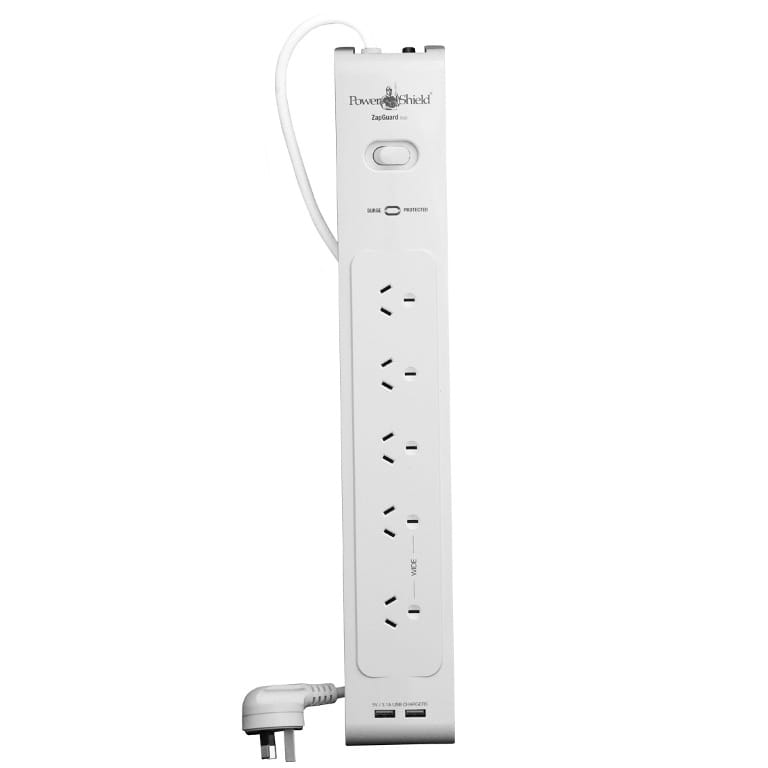

PowerShield PSZ5U2 ZapGuard 5 Way Power Surge Filter Board, 2 x USB Connectors, Wide Spaced Sockets, Wall Mountable, White,$40,000 Connected Equipment
The brand new ZapGuard PSZ5U2 Surge Board will protect your home and office electronics from dangerous surges and spikes and is ideal for charging mobiles, laptops and other small USB powered devices.
It is highly rated to withstand power surges and spikes of up to 1,400 Joules / 40,000 Amps.
High surge protection
Recessed On/Off Switch
Wide spaced socket to allow for plug packs
10A Circuit Breaker
2 x USB Sockets
5 x Surge-protected sockets supply complete, 3 line AC protection
$40,000 Connected Equipment Warranty " terms and conditions apply.
Impact and scratch resistant Polycarbonate case
Heavy-duty 1.2-meter power cord
Wall mountable
LED indicator shows that your wiring is properly earthed and protection is active and available
Nominal Voltage / Frequency 240 Vac / 50 Hz
Maximum Current 10 Amp breaker
Maximum Power 2400 Watts
Protection Mode 700 Joules (L-N), 350 Joules (L-E), 350 Joules (N-E)
Maximum Surge Current 40,000 Amps
Maximum Surge Energy 1,494 Joules
Typical Response Time < 1 nS (instantaneous)
USB Charging Current 3.1 Amps
Dimensions (mm) 430 (L) x 35 (H) x 66 (W)
It is highly rated to withstand power surges and spikes of up to 1,400 Joules / 40,000 Amps.
High surge protection
Recessed On/Off Switch
Wide spaced socket to allow for plug packs
10A Circuit Breaker
2 x USB Sockets
5 x Surge-protected sockets supply complete, 3 line AC protection
$40,000 Connected Equipment Warranty " terms and conditions apply.
Impact and scratch resistant Polycarbonate case
Heavy-duty 1.2-meter power cord
Wall mountable
LED indicator shows that your wiring is properly earthed and protection is active and available
Nominal Voltage / Frequency 240 Vac / 50 Hz
Maximum Current 10 Amp breaker
Maximum Power 2400 Watts
Protection Mode 700 Joules (L-N), 350 Joules (L-E), 350 Joules (N-E)
Maximum Surge Current 40,000 Amps
Maximum Surge Energy 1,494 Joules
Typical Response Time < 1 nS (instantaneous)
USB Charging Current 3.1 Amps
Dimensions (mm) 430 (L) x 35 (H) x 66 (W)
| Power | |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 1491 J |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 5 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | Type I |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 240 V |
| AC input frequency | 50 Hz |
| Peak current, normal mode | 10 A |
| USB charging |
 |
| Ports & interfaces | |
| USB ports quantity | 2 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Power plug type | Type I |
| Weight & dimensions | |
| Cable length How long the cable is. | 1.2 m |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 430 mm |
| Height The measurement of the product from head to foot or from base to top. | 35 mm |
| Indication | |
| LED indicators | Activity |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 446186 |
| MPN | PSZ5U2 |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
