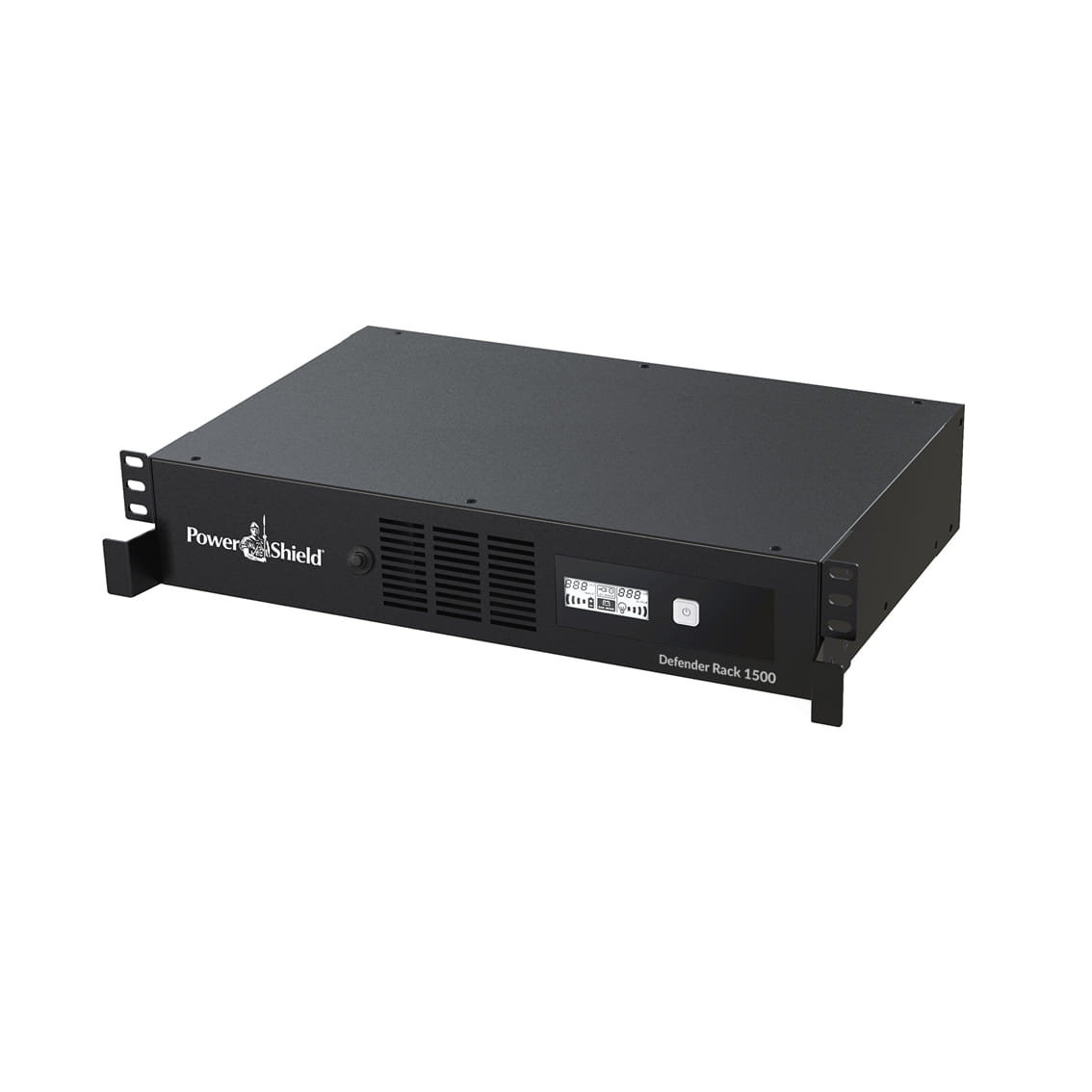

PowerShield PSDR1500N, Line-Interactive, 0.6 kVA, 900 W, Sine, 177 V, 290 V
The Defender Rackmount 1500VA expands the successful Defender Range by building the popular features into a Rack Mount edge of network UPS perfect for shallow, wall mounted cabinets.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
Bundled with the PowerShield PSSNMPV1 card, this solution is ready for the Network Edge.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
Bundled with the PowerShield PSSNMPV1 card, this solution is ready for the Network Edge.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 0.6 kVA |
| Output power The power that the device can produce. | 900 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 177 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 290 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Automatic Voltage Regulation (AVR) |
 |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 19500 A |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 936 J |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6 ms |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Overcharge, Overload |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Auto-restart |
|
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006 Directive 2011/65/EU |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 300 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.8 kg |
| SKU | 828950 |
| MPN | PSDR1500N |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://powershield.com.au/ |
