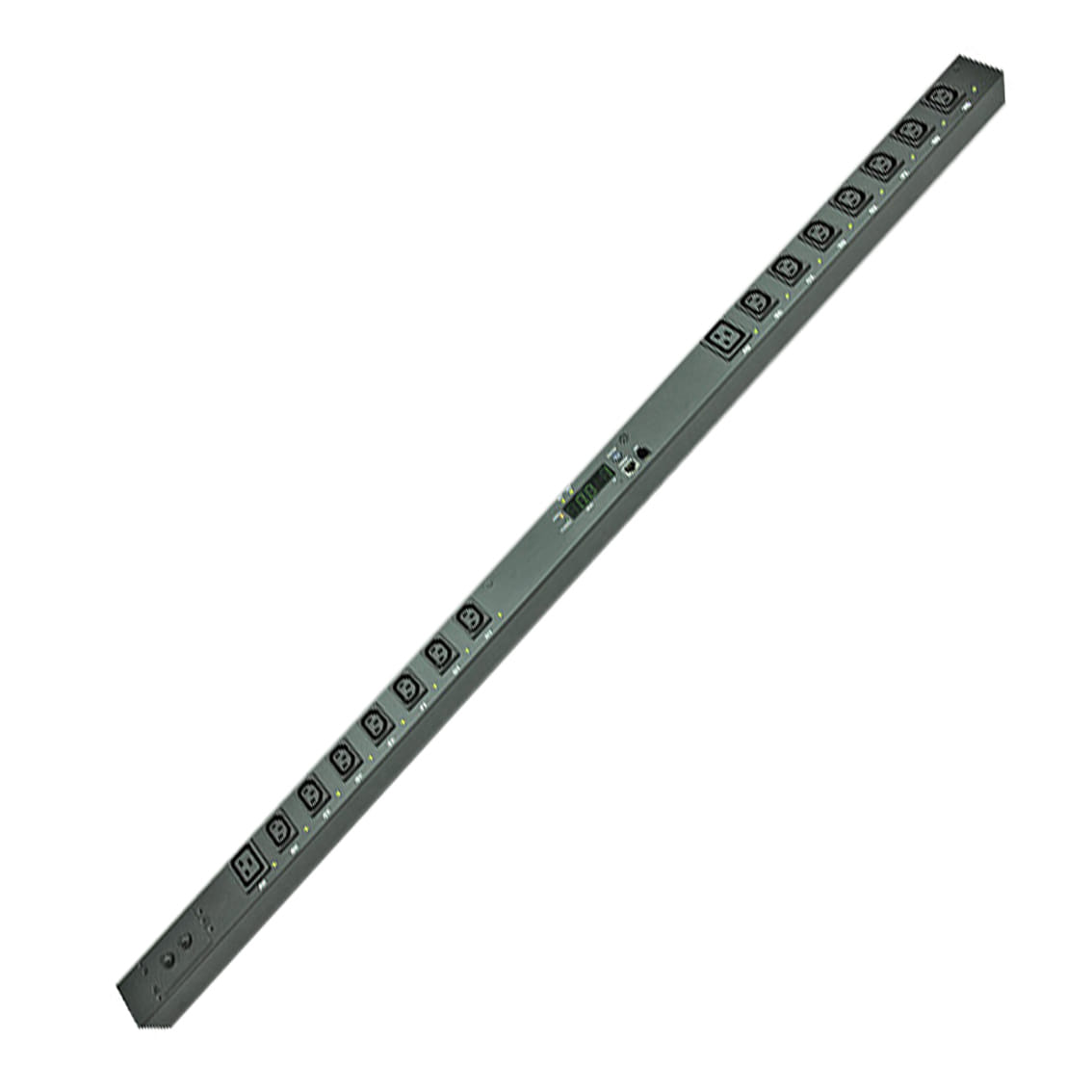

PowerShield RPSW-32A16, Managed, Single-phase, Black, 16 AC outlet(s), C13 coupler, C19 coupler, 3 m
16 Port 32A Switched PDU Remote Individual Outlet Control & Power Monitoring. Output 14x 10A IEC C13, Input 2x 16A IEC C19 Socket, 3m Attached 3m IEC 309.
Switched PDU has a built-in network interface which allows an administrator to access the PDU from a remote terminal and interface with it to turn on or off outlets and control load by web and SNMP. This can be helpful if a remote machine has gone into an unresponsive state and cannot be restarted through normal means. An administrator can connect to the PDU that the machine is plugged into in order to power cycle the machine.
Switched PDU has a built-in network interface which allows an administrator to access the PDU from a remote terminal and interface with it to turn on or off outlets and control load by web and SNMP. This can be helpful if a remote machine has gone into an unresponsive state and cannot be restarted through normal means. An administrator can connect to the PDU that the machine is plugged into in order to power cycle the machine.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Managed |
| Type Characteristics of the device. | Single-phase |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 16 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Master AC outlets quantity | 16 |
| Features | |
| LED indicators |
 |
| Cable length How long the cable is. | 3 m |
| Management features | |
| Management protocols | HTTP, HTTPS, SNMP, DHCP, UDP |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Block 1 output current | 10 A |
| Block 2 output current | 16 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 1245 mm |
| Depth The distance from the front to the back of something. | 56 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| SKU | 806611 |
| MPN | RPSW-32A16 |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
