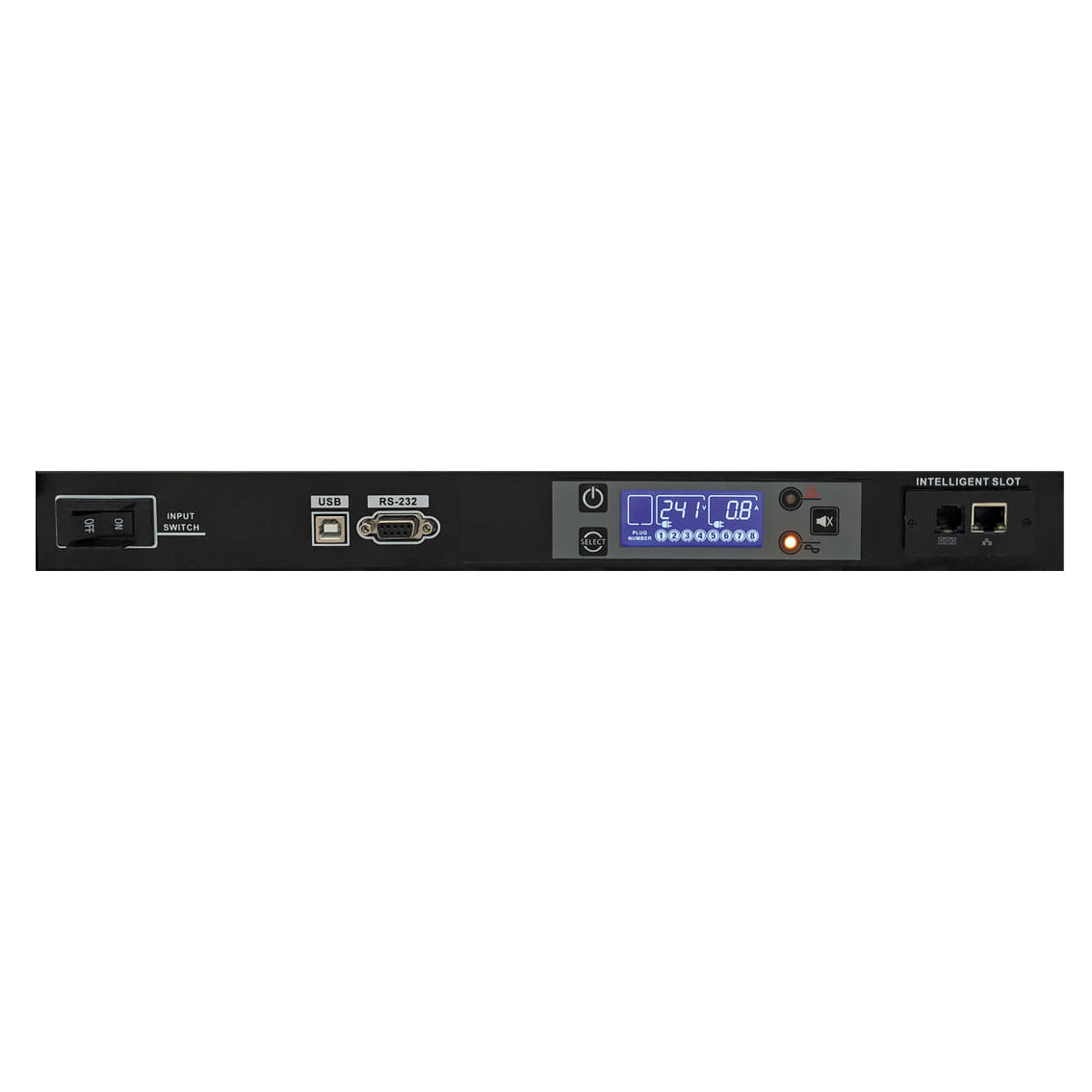

Powershield PSNSPDU8S Navigator Smart PDu, 8x IEC 10A Output, 1x IEC 16A inled Plug
The PowerShield Navigator Managed PDU is an internet ready device designed to allow administrators to remotely
and individually control the AC power for up to eight connected devices such as servers, routers, modems and telephone
networks. Moreover, the user is able to pre-configure to turn on/off specific outlets when an event occurs.
The Navigator PDU offers easy set up and user-friendly communications and control methods. Once connected to an
ethernet connection, the administrator will be notified of a web IP address and can manage and monitor the power of
the devices from anywhere in the world via the web browser.
Features
Remote Access
Remotely turn on/off/reset any or all NetSwitch outlets
Programmable
Set sequential scheduled power on/off/reset to each
outlet with durations
Perform multiple PC shutdown when AC fails or battery
is low
UPS Management
Connect compatible UPSs for real-time remote
monitoring, management and control and perform UPS
self tests
Multi Platform
Monitor individual outlets for AMPs, KwH, Watts and Volts
Support advanced encryption of HTTPS, SSL, SSH and
SnMPv3
Notification
Event notification via email, SMS or trap
Environmental Monitoring
Environmental monitoring option (PSEMB) to observe
humidity and temperature
and individually control the AC power for up to eight connected devices such as servers, routers, modems and telephone
networks. Moreover, the user is able to pre-configure to turn on/off specific outlets when an event occurs.
The Navigator PDU offers easy set up and user-friendly communications and control methods. Once connected to an
ethernet connection, the administrator will be notified of a web IP address and can manage and monitor the power of
the devices from anywhere in the world via the web browser.
Features
Remote Access
Remotely turn on/off/reset any or all NetSwitch outlets
Programmable
Set sequential scheduled power on/off/reset to each
outlet with durations
Perform multiple PC shutdown when AC fails or battery
is low
UPS Management
Connect compatible UPSs for real-time remote
monitoring, management and control and perform UPS
self tests
Multi Platform
Monitor individual outlets for AMPs, KwH, Watts and Volts
Support advanced encryption of HTTPS, SSL, SSH and
SnMPv3
Notification
Event notification via email, SMS or trap
Environmental Monitoring
Environmental monitoring option (PSEMB) to observe
humidity and temperature
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Managed |
| Type Characteristics of the device. | Single-phase |
| Rack capacity The spase that device fill in rack. | 1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| On/off switch The button which is pressed to switch the device on or off. |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| Master AC outlets quantity | 8 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB ports quantity | 1 |
| Features | |
| LED indicators |
|
| Cable length How long the cable is. | 1.8 m |
| Management features | |
| Management protocols | HTTPS, SSL, SSH, SnMPv3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 220 / 230 / 240 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Block 1 output current | 10 A |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 624 J |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 250 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.5 kg |
| Packaging content | |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| SKU | 446183 |
| MPN | PSNSPDU8S |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
