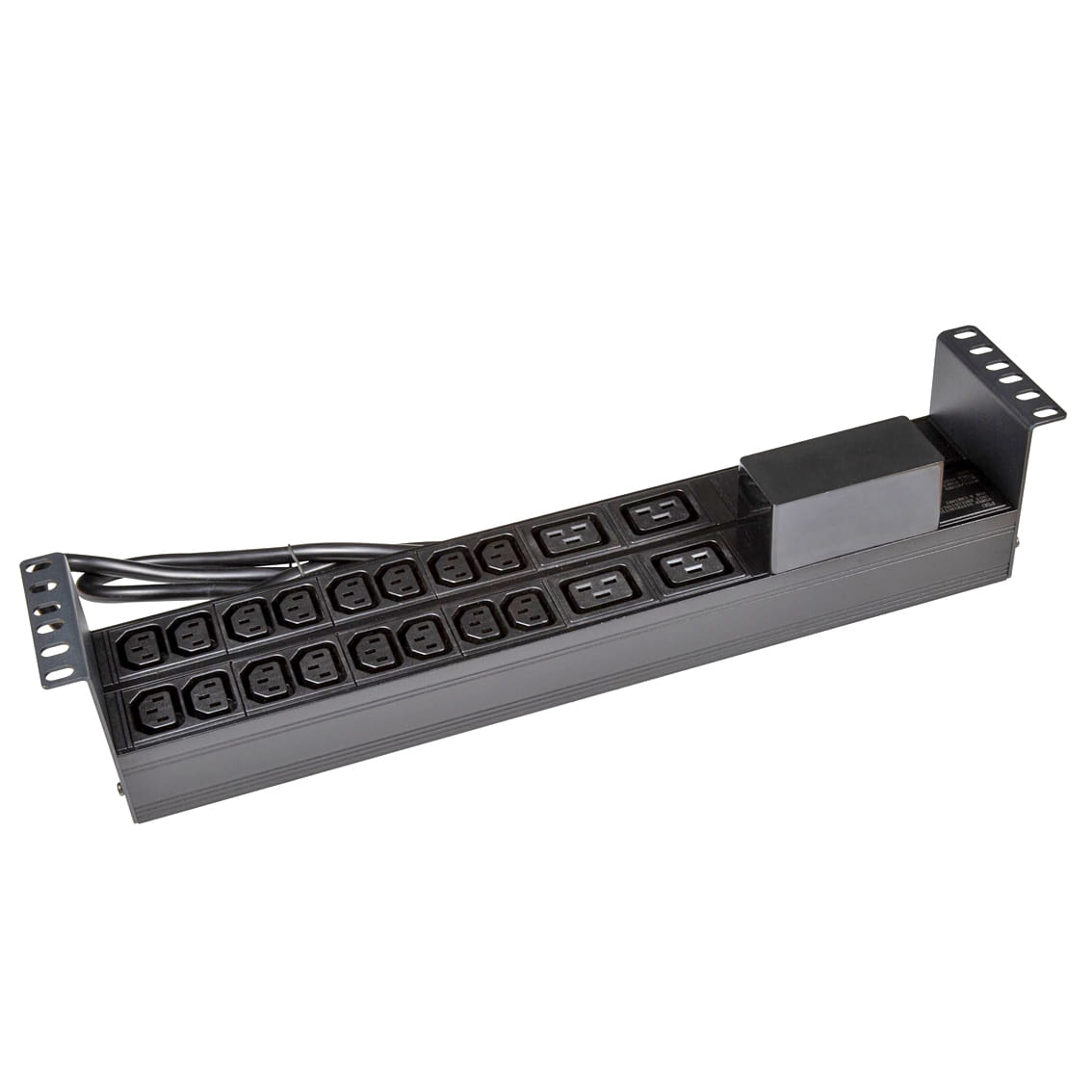

PowerShield RPR-IEC-16A20H, 2U, Single-phase, Horizontal, Black, 20 AC outlet(s), C13 coupler, C19 coupler
20 Outlet Horizontal Power Rail (16x 10A IEC C13 & 4x 16A IEC C19) with 6KA C-Curve Circuit Breaker. Integrated 2m power cord (16A IEC C20) 2RU. Colour Black.
Unmanaged 20 Way Horizontal IEC power distribution unit with 6KA C-Curve circuit breaker. 16 Amp IEC connector to provide a compact power distribution solution ideal for connecting directly into UPS
Unmanaged 20 Way Horizontal IEC power distribution unit with 6KA C-Curve circuit breaker. 16 Amp IEC connector to provide a compact power distribution solution ideal for connecting directly into UPS
| Design | |
| Type Characteristics of the device. | Single-phase |
| Rack capacity The spase that device fill in rack. | 2U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| On/off switch The button which is pressed to switch the device on or off. |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 20 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Master AC outlets quantity | 20 |
| Features | |
| Cable length How long the cable is. | 2 m |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Block 1 output current | 10 A |
| Block 2 output current | 16 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482 mm |
| Depth The distance from the front to the back of something. | 95 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| SKU | 806610 |
| MPN | RPR-IEC-16A20H |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
