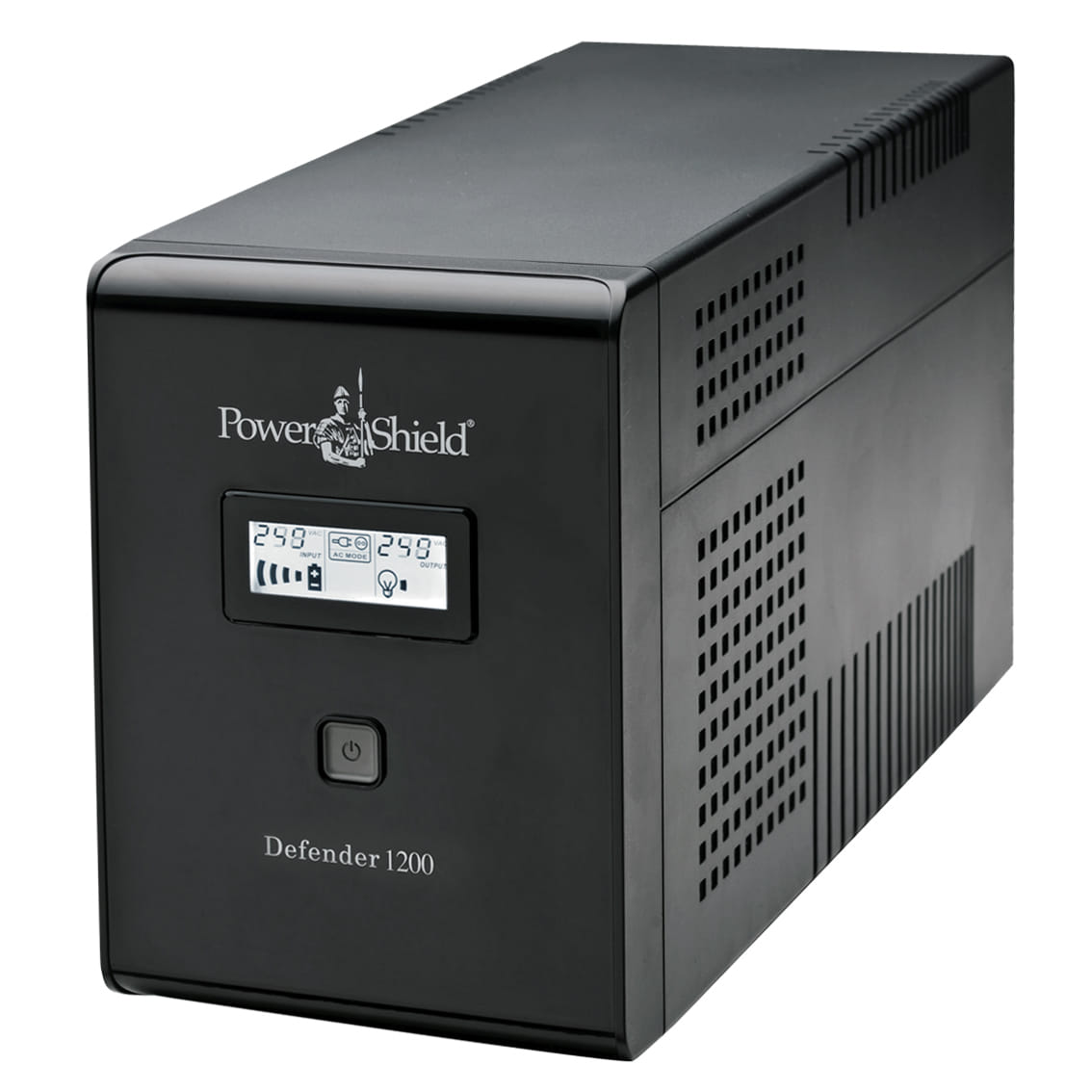

PowerShield Defender 1200VA / 720W Line Interactive UPS with AVR, Australian Outlets and user replaceable batteries - UPD-UPA102V2100BB
PowerShield DEFENDER
The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances.The stylish LCD display, user replaceable batteries and Australian sockets makes the Defender the complete package at this level.
Features:
•Stylish and informative LCD display
•Surge Protection, Best in its Class
•Excellent microprocessor control guarantees high reliability
•Australian outlets for UPS and Surge Protection
•Boost and buck AVR for voltage stabilization
•User replaceable batteries
•Silent Operation (No fans included)
•Auto restart while AC is recovering
•Off-mode charging
•Cold start function
•USB communication with sophisticated NetGuard software
•FREE download software
The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances.The stylish LCD display, user replaceable batteries and Australian sockets makes the Defender the complete package at this level.
Features:
•Stylish and informative LCD display
•Surge Protection, Best in its Class
•Excellent microprocessor control guarantees high reliability
•Australian outlets for UPS and Surge Protection
•Boost and buck AVR for voltage stabilization
•User replaceable batteries
•Silent Operation (No fans included)
•Auto restart while AC is recovering
•Off-mode charging
•Cold start function
•USB communication with sophisticated NetGuard software
•FREE download software
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1.2 kVA |
| Output power The power that the device can produce. | 720 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 177 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 290 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output voltage regulation | 10% |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 936 J |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 5 dB |
| Surge protection |
 |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Overcharge, Overload, Short circuit |
| Power source type What the power source is. | AC |
| Detachable power cord |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 7 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 2 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | (A-tick PSD650) EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006, Directive 2011/65/EU |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 146 mm |
| Depth The distance from the front to the back of something. | 397 mm |
| Height The measurement of the product from head to foot or from base to top. | 205 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11.1 kg |
| SKU | 448067 |
| MPN | PSD1200 |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
