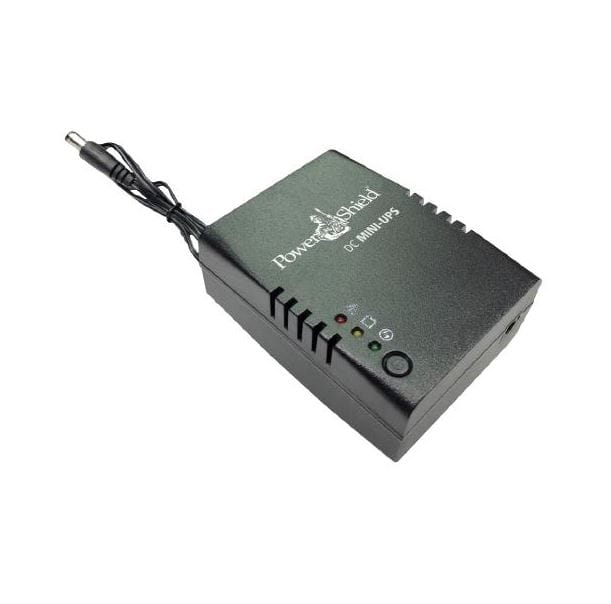

Powershield DC Mini (12/15/19/24Vdc/36W-Output)
Item No:
446180
MPN:
PSDCM36
$194.12
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
Powershield DC Mini, (12,15,19,24Vdc / 36W - Output follows input voltage).Automatically detects and selects correct voltage form 15 to 24V
The newly designed PowerShield DC Mini-UPS is designed to provide emergency power backup to all kinds of DC powered equipment including routers, modems (including fibre optic ONT), VOIP phone systems, surveillance equipment, alarm systems and many critical telecommunications devices. The DC Mini-UPS can economically provide hours of operation during power failure. (12,15,19,24Vdc / 36W - Output follows input voltage). Automatically detects and selects correct voltage form 15 to 24V
This is a DC - DC product meaning that it goes between the power pack in the wall to the modem. The other one plugged directly into the wall.
It has 2 x Lithium batteries, essentially doubling the backup time
It is 12 - 24 Volts DC and will match the voltage entering the UPS to the power exiting the UPS
The maximum power (3 amps - 36 watts) is double the power of the existing model (1.5 amps - 18 watts) Once again, it will match the power going into the device.
Intelligent Auto-select voltage
Digital with Microprocessor control
LED Indicator
Additional terminal output for DC connection
Comes with 6 multi-size connectors to fit any DC device
This is a DC - DC product meaning that it goes between the power pack in the wall to the modem. The other one plugged directly into the wall.
It has 2 x Lithium batteries, essentially doubling the backup time
It is 12 - 24 Volts DC and will match the voltage entering the UPS to the power exiting the UPS
The maximum power (3 amps - 36 watts) is double the power of the existing model (1.5 amps - 18 watts) Once again, it will match the power going into the device.
Intelligent Auto-select voltage
Digital with Microprocessor control
LED Indicator
Additional terminal output for DC connection
Comes with 6 multi-size connectors to fit any DC device
| Features | |
| Output power The power that the device can produce. | 36 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 12 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 24 V |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 12 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 24 V |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over voltage, Overcharge, Overdischarge, Overload, Short circuit |
| Power source type What the power source is. | DC |
| Detachable power cord |
 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 5200 Ah |
| Battery voltage The voltage (V) of the battery. | 7.4 V |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 20 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 60 min |
| Design | |
| Form factor The shape or design of the product. | Compact |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Compatibility The other products, software and hardware this product can be used with. | Router |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 320 g |
| Package weight Weight of the packaged product. | 400 g |
| Packaging data | |
| Cables included | Input power cable |
| SKU | 446180 |
| MPN | PSDCM36 |
| Assembled to Order | No |
| Brand | PowerShield |
| Shipping Latency | None |
| Display In Stock In Frontend | No |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
