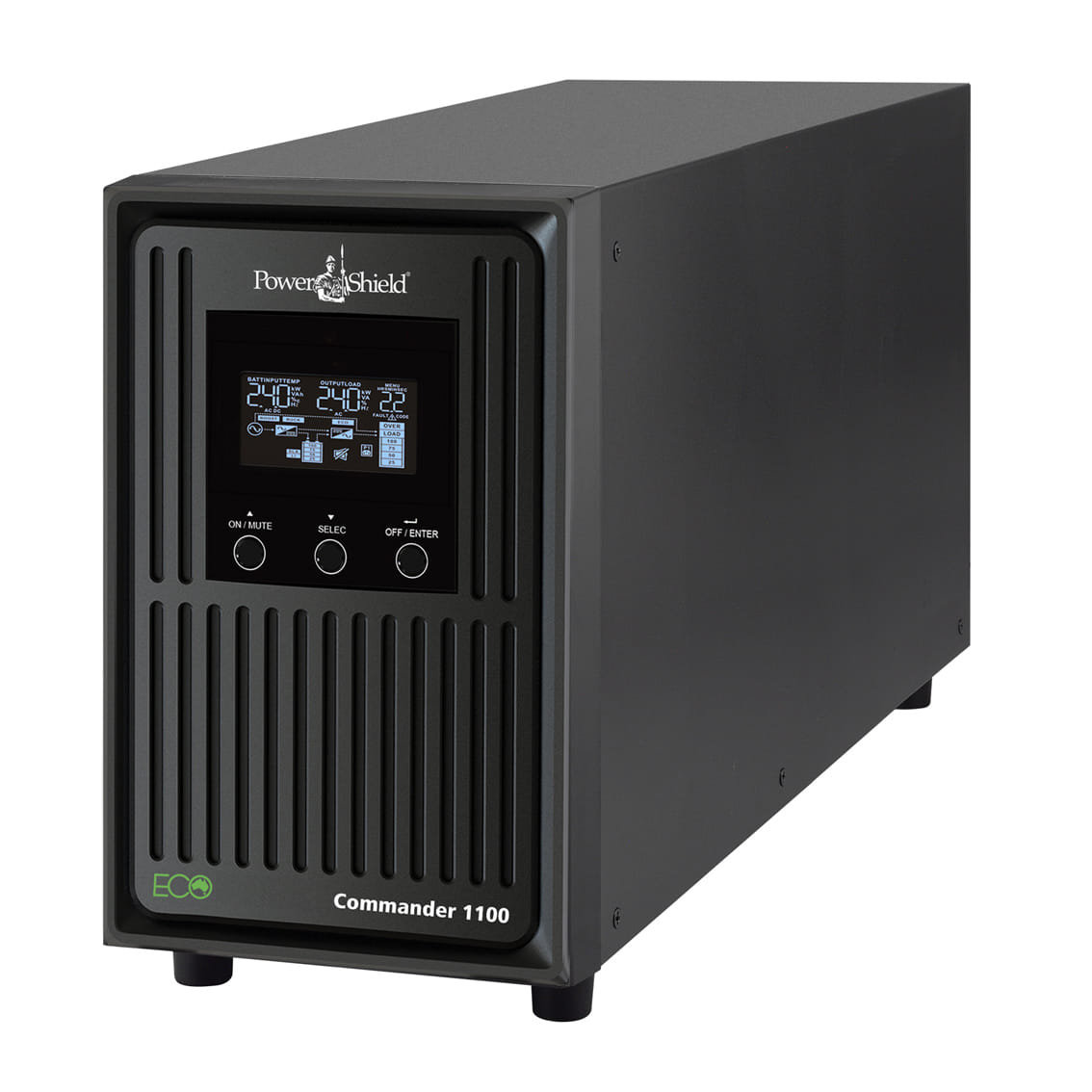

PowerShield Commander 1100VA / 990W Line Interactive Pure Sine Wave Tower UPS with AVR. Telephone / Modem
The PowerShield Commander provides temporary backup power supply, telephone and modem surge protection with a pure sine wave.
Use PowerShield Commander to protect:
Servers
Gates
Copy Machines
Laser Printers
Applications that require remote connectivity
Features:
Works for gates, camera surveillance, computers, telephone systems, servers, and other sensitive electronic equipment.
Best specifications in its class
Intelligent real time battery backup display
Smart 5% AVR with 2 step buck and boost
Intelligent double stage charger control which translates to a faster recharge rate
Generator compatible
Highest Joule Rating " 1558 Joules of surge protection
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1.1 kVA |
| Output power The power that the device can produce. | 990 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 162 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 290 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 208 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 230 V |
| Output voltage regulation | 1.5% |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.9 |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 45 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Overcharge, Overload, Short circuit |
| Power source type What the power source is. | AC |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 5 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 2 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 4 h |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | EN62040-1 -1 2003, IEC 60950-1 -1, EN62040-2 2006, Directive 2011/65/EU |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 145 mm |
| Depth The distance from the front to the back of something. | 397 mm |
| Height The measurement of the product from head to foot or from base to top. | 220 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12 kg |
| SKU | 447233 |
| MPN | PSCM1100 |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
