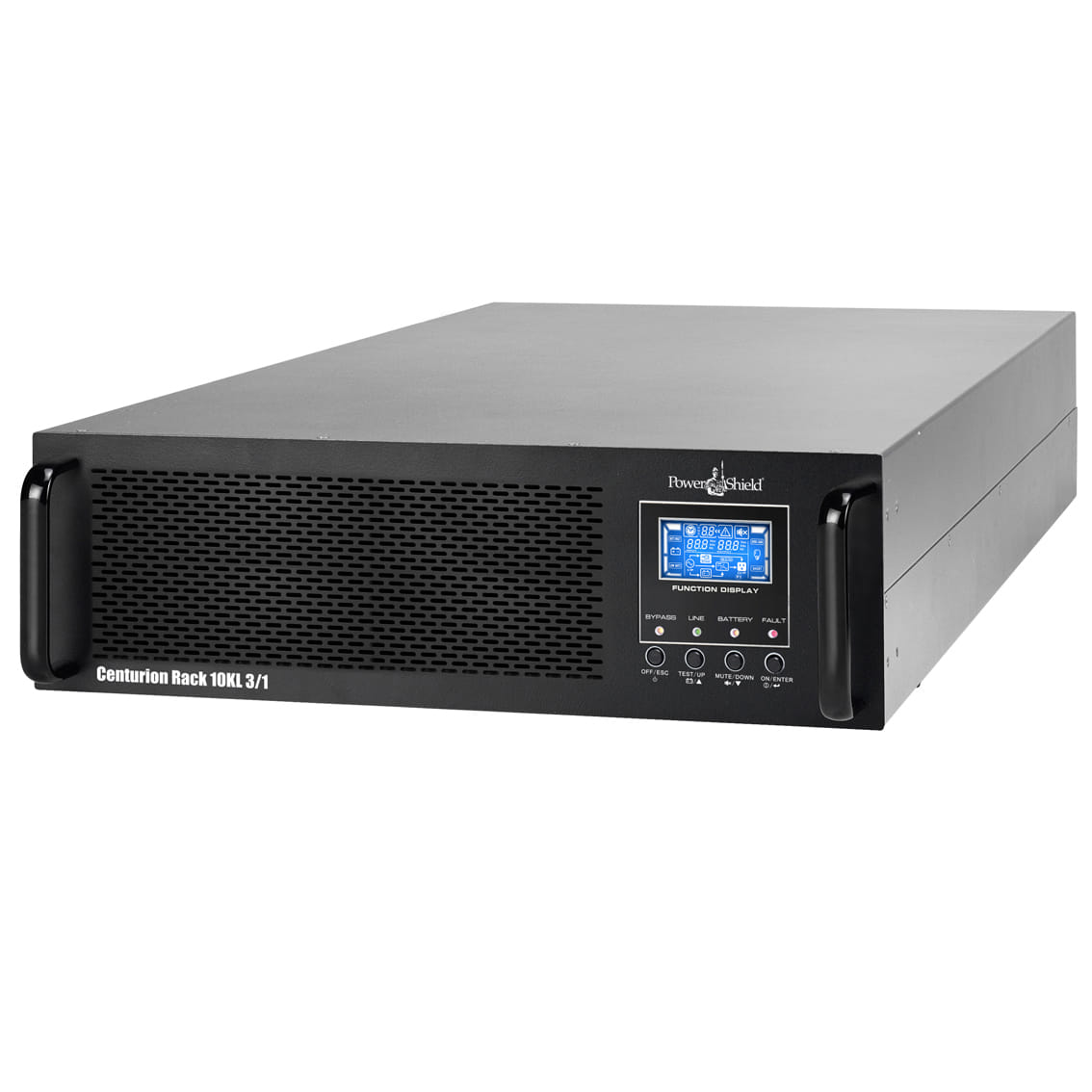

PowerShield Centurion Rackmount 10kVA 3/1 Long Run
Item No:
831234
MPN:
PSCER10KL3-1
$20,000.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
PowerShield Centurion, Double-conversion (Online), 10 kVA, 8000 W, Pure sine, 46/54 Hz, 208 V
In applications where only limited three phase power is available yet a large single phase power supply is necessary, the PowerShield Centurion 3/1 Rack ticks all the boxes. Recommended in applications where a balanced load is required, the Centurion 3/1 Rack Series has all of the feature of the Centurion range with the added ability of accepting three phase power to its input.
Like the Centurion range, the 3/1 Rack range boasts the same User friendly LCD display that allows the operator to interrogate and program the UPS on the front panel as well as with the included software. The Centurion 3/1 Rack UPS will accommodate any standard 19 inch rack.
Like the Centurion range, the 3/1 Rack range boasts the same User friendly LCD display that allows the operator to interrogate and program the UPS on the front panel as well as with the included software. The Centurion 3/1 Rack UPS will accommodate any standard 19 inch rack.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 10 kVA |
| Output power The power that the device can produce. | 8000 W |
| Waveform | Pure sine |
| Input frequency The frequency (Hz) which is required to power the product. | 46/54 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 208 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 47/54 Hz |
| Output voltage regulation | 1% |
| Number of input phases | 1/3 |
| Number of output phases | 1/3 |
| Efficiency | 89% |
| Power factor | 0.99 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Input current Total Harmonic Distortion (THD) | 6% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 58 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Overcharge, Overload, Short circuit |
| Audible alarm modes | Fault, Overload alarm, Low battery alarm |
| Power source type What the power source is. | AC |
| Detachable power cord |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 3 |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 20 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 9 h |
| Charging current | 1 A |
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 3U |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | EN62040-1-1 2003, IEC60950-1-1 EN62040-2 2006 Directive 2001 / 65 / EU |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 668 mm |
| Height The measurement of the product from head to foot or from base to top. | 133 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 22 kg |
| SKU | 831234 |
| MPN | PSCER10KL3-1 |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://powershield.com.au/ |
