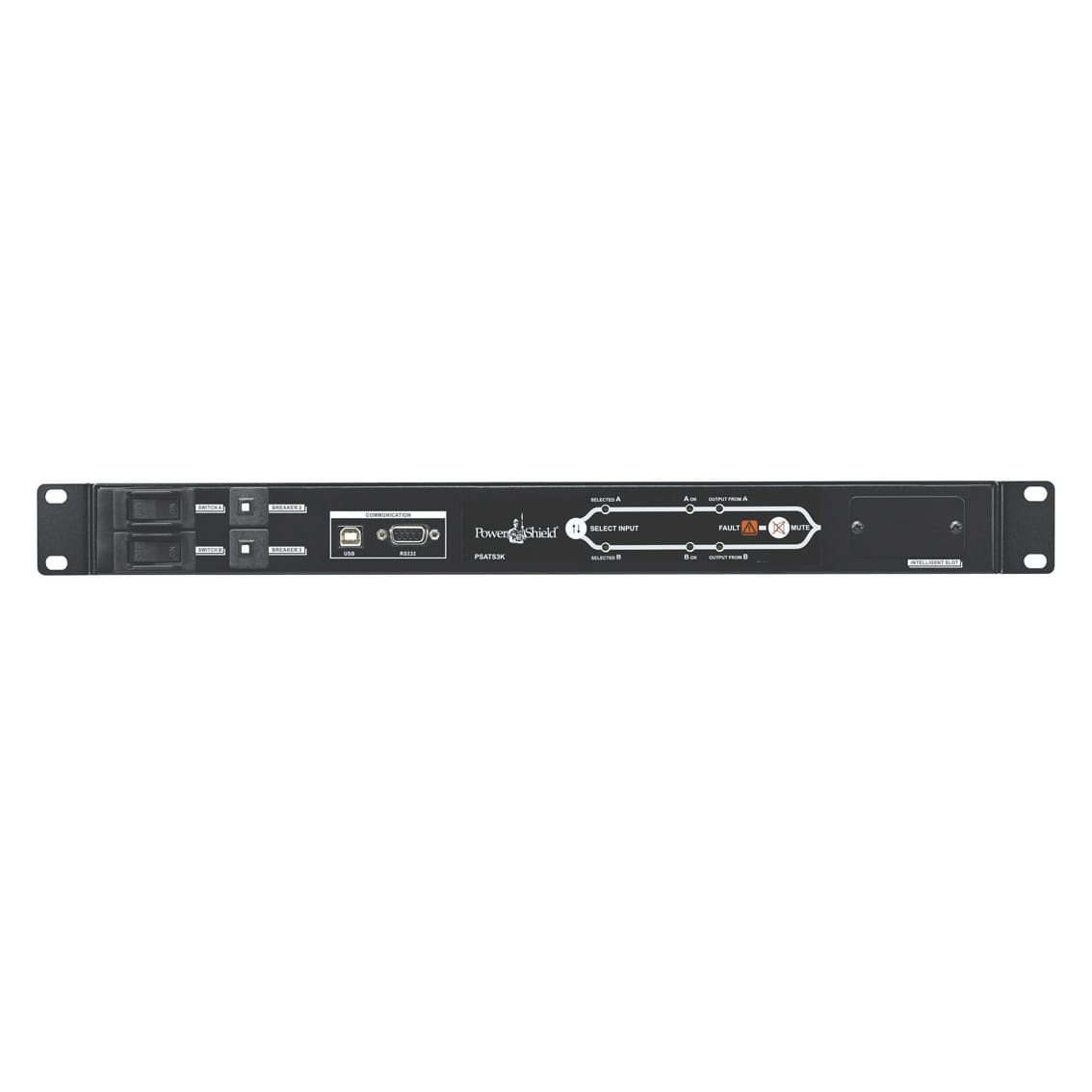

Powershield Automatic Transfer Switch - 3KVA
The PowerShield Automatic Transfer Switch (ATS) is designed with two independent power inlets to supply power to the load from a primary or secondary power source. Should the primary power source fail, the secondary will automatically supply power to the connected equipment. The transfer time from one power source to the other is seamless to the connected equipment. Automatic Transfer SwitchAfter switching to a secondary power source, the ATS can also switch power back to the primary input when power to the primary input is restored.
Features:
Critical load (server) has reliability of two independent power sources .
Ideal for ensuring reliable power to critical devices that have only a single power supply
User selectable power source from front panel.
Dual power supply for redundancy.
Provides seamless power switch for IT equipment.
Highly reliable 19 3 (1RU) rack design to fit into diverse working environment.
Built-in USB and RS232.
AS400 dry contacts included.
SNMP remote monitoring option available.
Two year warranty.
Features:
Critical load (server) has reliability of two independent power sources .
Ideal for ensuring reliable power to critical devices that have only a single power supply
User selectable power source from front panel.
Dual power supply for redundancy.
Provides seamless power switch for IT equipment.
Highly reliable 19 3 (1RU) rack design to fit into diverse working environment.
Built-in USB and RS232.
AS400 dry contacts included.
SNMP remote monitoring option available.
Two year warranty.
| Power | |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 220 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 A |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Performance | |
| LED indicators |
 |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC inlet type | 2 x C20 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 11 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5 kg |
| SKU | 444677 |
| MPN | PSATS3K |
| Brand | PowerShield |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://powershield.com.au/ |
