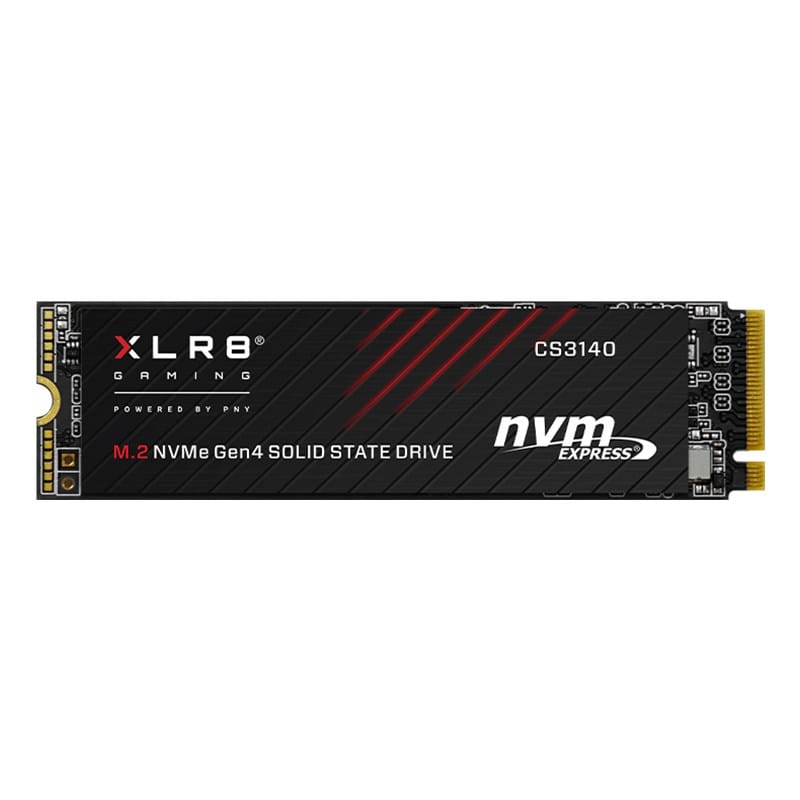

PNY CS3140 2TB NVMe Gen4 SSD M.2 7500MB/s 6850MB/s R/W 1400TBW 650K/700K 2M hrs MTBF 5yrs
PNY CS3140 2TB NVMe Gen4 SSD M.2 7500MB/s 6850MB/s R/W 1400TBW 650K/700K 2M hrs MTBF 5yrs
High performance NVMe Gen4 upgrade in an NVMe Gen4 enabled PC desktop or laptop computer
High performance SSD with up to 13 times the performance compared to SATA based SSDs
Sequential read of up to 7,500MB/s and write of up to 6,850MB/s
Specifications
Usable Capacities 2TB
NAND Components 3D Flash Memory
Interface PCIe Gen4x4 NVMe 1.4
Form Factor M.2 2280
Max Sequential Read* Up to 7,500MB/s
Max Sequential Write* 2TB : up to 6,850MB/s
TBW 2TB: 1,400
PCIe Link Power Management APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature 40 DegC to 85 DegC
Certifications BSMI, CE, FCC, REACH, RoHS
MTBF 2 Million Hours
Error Correction Code Less than 1 sector per ten quadrillion bits read
Secure Erase Standard, Enhanced Secure Erase
Product Health Monitoring Self Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End to End Data path protection Supported
System Compatibility Windows 10, Windows 8, Windows 7
Performance Optimization TRIM (requires OS support)
Warranty 5 year Limited Warranty
High performance NVMe Gen4 upgrade in an NVMe Gen4 enabled PC desktop or laptop computer
High performance SSD with up to 13 times the performance compared to SATA based SSDs
Sequential read of up to 7,500MB/s and write of up to 6,850MB/s
Specifications
Usable Capacities 2TB
NAND Components 3D Flash Memory
Interface PCIe Gen4x4 NVMe 1.4
Form Factor M.2 2280
Max Sequential Read* Up to 7,500MB/s
Max Sequential Write* 2TB : up to 6,850MB/s
TBW 2TB: 1,400
PCIe Link Power Management APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature 40 DegC to 85 DegC
Certifications BSMI, CE, FCC, REACH, RoHS
MTBF 2 Million Hours
Error Correction Code Less than 1 sector per ten quadrillion bits read
Secure Erase Standard, Enhanced Secure Erase
Product Health Monitoring Self Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End to End Data path protection Supported
System Compatibility Windows 10, Windows 8, Windows 7
Performance Optimization TRIM (requires OS support)
Warranty 5 year Limited Warranty
| Features | |
| NVMe version | 1.4 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 2000 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Read speed The speed at which a device can read data. | 7500 MB/s |
| Write speed The speed at which a device can write data. | 6850 MB/s |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Certification | BSMI, CE, FCC, REACH, RoHS, VCCI, KCC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.6 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 123 mm |
| Package depth The distance from the front to the back of the packaging. | 85 mm |
| Package height The distance from the top to the bottom of the packaging. | 4.3 mm |
| SKU | 707609 |
| MPN | M280CS3140-2TB-CL |
| Brand | PNY |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 4 NVMe M.2 |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.pny.com/ |
