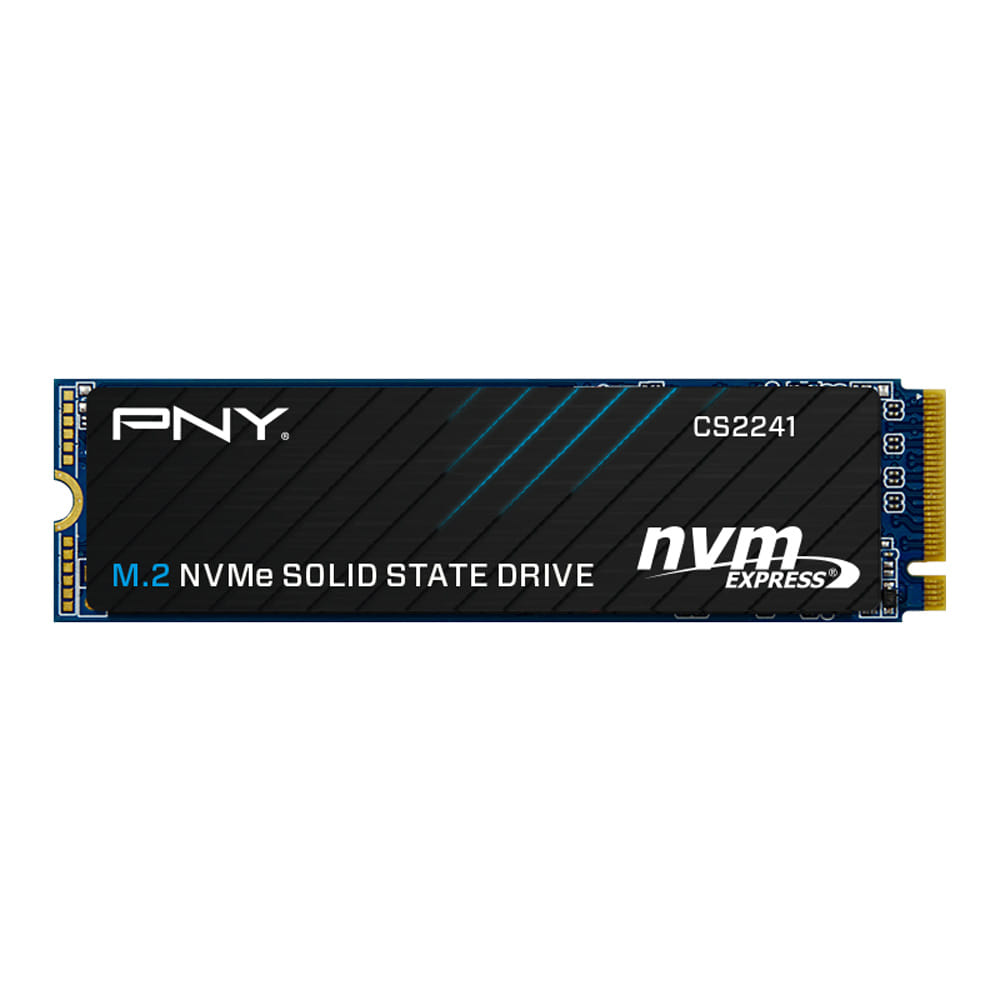

PNY CS2241 1TB NVMe SSD Gen4x4 M.2 5100MB/s 3200MB/s R/W TBW 1.5M hrs MTBF 5yrs wty
PNY CS2241 1TB NVMe SSD Gen4x4 M.2 5000MB/s 3200MB/s R/W TBW 1.5M hrs MTBF 5yrs wty
APPLICATIONS
An excellent choice for a mainstream performance upgrade to Gen4 technology in an NVMe enabled desktop or laptop computer
High performance SSD with up to 8 times the performance as compared to SATA based SSDs
FEATURES AND BENEFITS
Sequential Read of up to 5,100 MB/s and Write of up to 4,200 MB/s
Faster boot up, quicker application launch, and improved overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Backed by a 5 year limited warranty or TBW & live US tech support*
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
5,000 MB/s (Read), 3,200 MB/s (Write)
POWER
PCIe Power Management PS0/PS1/PS2/PS3/PS4,APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature 0DegC ~ 70DegC
Storage Temperature 40DegC ~ 85DegC
Certifications BSMI, CE, FCC, KCC,
RELIABILITY/SECURITY
Mean Time Between Failures (MTBF) 1,500,000 Hours
Error Correction Code: LDPC (Low Density Parity Check) ECC Algorithm
Product Health Monitoring: Self Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End to End Data path protection: Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
Retail Dimensions (L x W x H) 123 x 85 x 4.3 mm
Product Dimension (L x W x H) 22 x 80 x 4 mm (Max)
Weight 6.6g
APPLICATIONS
An excellent choice for a mainstream performance upgrade to Gen4 technology in an NVMe enabled desktop or laptop computer
High performance SSD with up to 8 times the performance as compared to SATA based SSDs
FEATURES AND BENEFITS
Sequential Read of up to 5,100 MB/s and Write of up to 4,200 MB/s
Faster boot up, quicker application launch, and improved overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Backed by a 5 year limited warranty or TBW & live US tech support*
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
5,000 MB/s (Read), 3,200 MB/s (Write)
POWER
PCIe Power Management PS0/PS1/PS2/PS3/PS4,APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature 0DegC ~ 70DegC
Storage Temperature 40DegC ~ 85DegC
Certifications BSMI, CE, FCC, KCC,
RELIABILITY/SECURITY
Mean Time Between Failures (MTBF) 1,500,000 Hours
Error Correction Code: LDPC (Low Density Parity Check) ECC Algorithm
Product Health Monitoring: Self Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End to End Data path protection: Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
Retail Dimensions (L x W x H) 123 x 85 x 4.3 mm
Product Dimension (L x W x H) 22 x 80 x 4 mm (Max)
Weight 6.6g
| Features | |
| NVMe version | 1.4 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 1000 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Read speed The speed at which a device can read data. | 5100 MB/s |
| Write speed The speed at which a device can write data. | 3200 MB/s |
| S.M.A.R.T. support |
|
| TRIM support |
|
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| End-to-End Data Protection |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Certification | BSMI, CE, FCC, KCC, REACH, RoHS, VCCI |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Technical details | |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.6 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 85 mm |
| Package depth The distance from the front to the back of the packaging. | 123 mm |
| Package height The distance from the top to the bottom of the packaging. | 4.3 mm |
| SKU | 711116 |
| MPN | M280CS2241-1TB-CL |
| Brand | PNY |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 4 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.pny.com/ |
