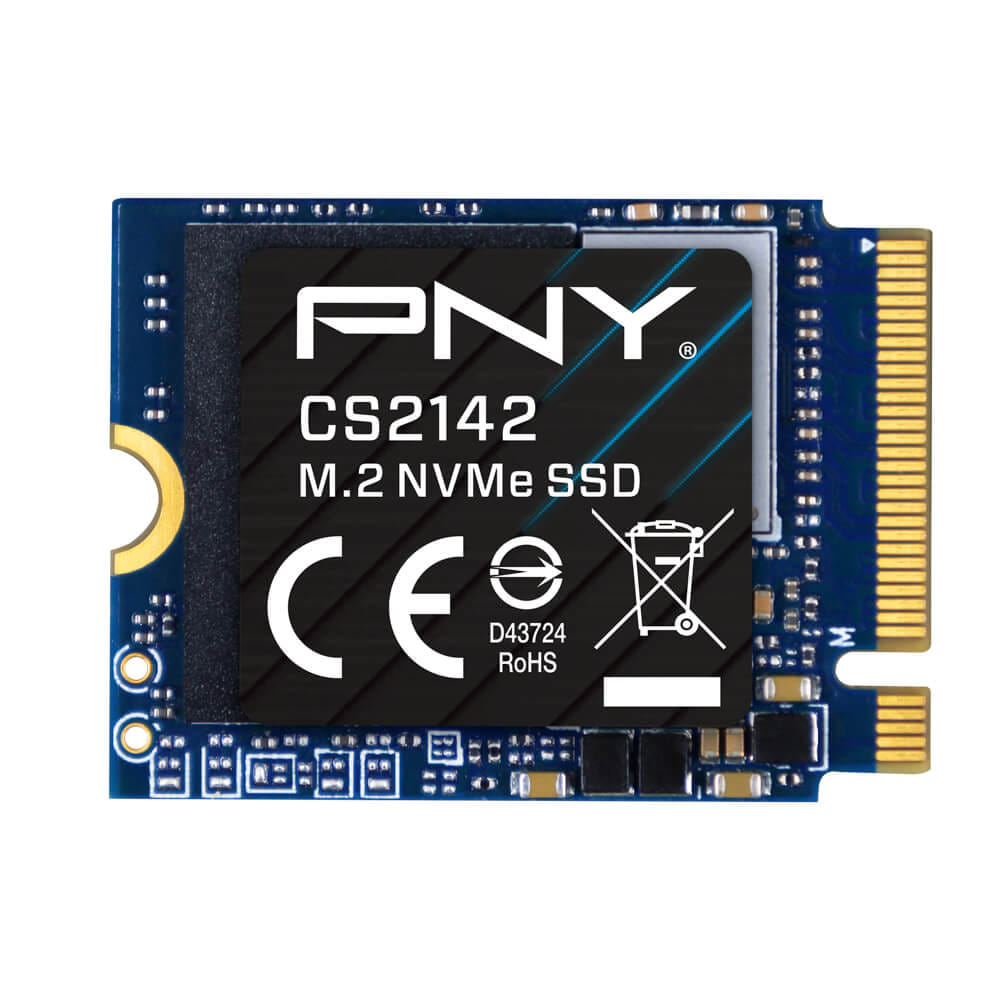

PNY CS2142 1TB PCIe M.2 2230 NVMe Gen4 SSD

PNY CS2142 1TB M.2 2230 NVMe Gen4x4 SSD 4,900MB/s 3200MB/s 5yrs

- NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an NVMe enabled computer or handheld
- High performance SSD with up to double the performance as compared to entry Gen3 x4 based SSDs
- Sequential Read of up to 5,000 MB/s and Write of up to 3,200 MB/s
- Faster boot up, quicker application launch, and better overall system performance
- Cost effective and high performance is ideal for demanding applications, games and workloads
- Backed by a 5 year limited warranty or TBW*

Specification
Usable Capacities 1TB
NAND Components 3D NAND Flash Memory
Interface PCIe Gen4x4 NVMe 1.4
Form Factor M.2 2230
Package Dimensions (L -W -H) 123 x 85 x 4.3 mm
Product Dimensions (L -W -H) 30 x 22 x 1.35 mm (Max)
Weight 2.8g
Max Sequential Read* 1TB: Up to 4,900MB/s
Max Sequential Write* 1TB - 2TB: Up to 3,200MB/s
PCIe Link Power Management PS0/PS1/PS2/PS3/PS4/ APST, ASPM, L1.2
Operating Temperature 0 DegC to 70 DegC
Storage Temperature -40 DegC to 85 DegC
Certifications BSMI, CE, FCC, KCC, REACH, RoHS, VCCI
MTBF 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity Check) ECC Algorithm
Secure Erase Secure Erase,Crypto Erase
Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
Performance Optimization HMB (Host Memory Buffer)
Warranty 5-year Limited Warranty
