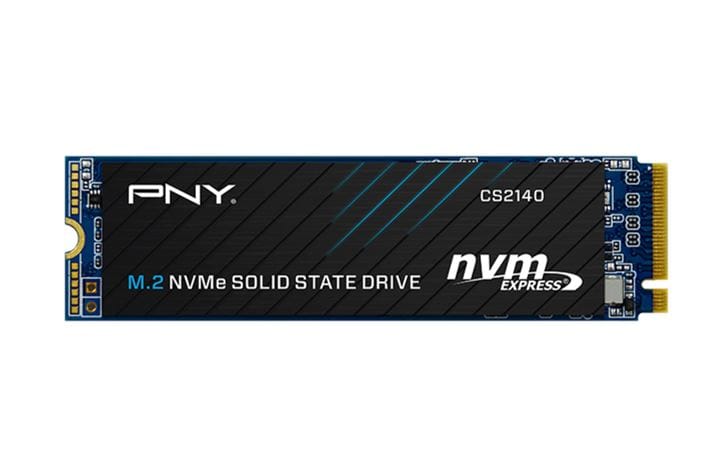

PNY CS2140 1TB NVMe SSD M.2 Gen4x4 3600MB/s 3200MB/s R/W 400TBW 1.5M hrs MTBF 5yrs wty
APPLICATIONS
* NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an
NVMe enabled computer
* High performance SSD with up to double the performance as compared
to entry Gen3 x4 based SSDs
FEATURES AND BENEFITS
* Sequential Read of up to 3,600 MB/s and Write of up to 3,200 MB/s
* Faster boot up, quicker application launch, and better overall system
performance
* Cost effective and high performance is ideal for demanding applications,
games and workloads.
* Backed by a 5 year limited warranty or TBW* & live tech support
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
1TB 3,600 MB/s (Read), 3,200 MB/s (Write)
POWER
PCIe Power Management APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature 0 DegC ~ 70 DegC
Storage Temperature -40 DegC ~ 85 DegC
RELIABILITY/SECURITY
TBW TB: 400,
Mean Time Between
Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity
Check) ECC Algorithm
Secure Erase Standard, Enhanced Secure Erase
Product Health Monitoring Self-Monitoring, Analysis and
Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
Performance Optimization HMB (Host Memory Buffer)
PRODUCT INFORMATION
Service & Support 5-Year Limited Warranty or TBW*
Usable Capacities (IDEMA) 1TB
* NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an
NVMe enabled computer
* High performance SSD with up to double the performance as compared
to entry Gen3 x4 based SSDs
FEATURES AND BENEFITS
* Sequential Read of up to 3,600 MB/s and Write of up to 3,200 MB/s
* Faster boot up, quicker application launch, and better overall system
performance
* Cost effective and high performance is ideal for demanding applications,
games and workloads.
* Backed by a 5 year limited warranty or TBW* & live tech support
PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
1TB 3,600 MB/s (Read), 3,200 MB/s (Write)
POWER
PCIe Power Management APST, ASPM, L1.2
ENVIRONMENTAL
Operating Temperature 0 DegC ~ 70 DegC
Storage Temperature -40 DegC ~ 85 DegC
RELIABILITY/SECURITY
TBW TB: 400,
Mean Time Between
Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity
Check) ECC Algorithm
Secure Erase Standard, Enhanced Secure Erase
Product Health Monitoring Self-Monitoring, Analysis and
Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
Performance Optimization HMB (Host Memory Buffer)
PRODUCT INFORMATION
Service & Support 5-Year Limited Warranty or TBW*
Usable Capacities (IDEMA) 1TB
| Features | |
| NVMe version | 1.4 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 1000 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Read speed The speed at which a device can read data. | 3200 MB/s |
| Write speed The speed at which a device can write data. | 1200 MB/s |
| S.M.A.R.T. support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| TBW rating | 400 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.6 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 85 mm |
| Package depth The distance from the front to the back of the packaging. | 123 mm |
| Package height The distance from the top to the bottom of the packaging. | 4.3 mm |
| SKU | 547058 |
| MPN | M280CS2140-1TB-CL |
| Brand | PNY |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 4 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.pny.com/ |
